how to run throttle and choke cables

Recommended Posts

zanepetty

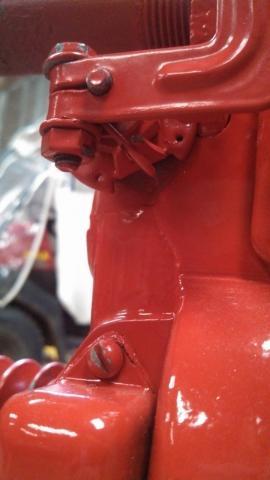

Does anyone have any good pictures of where the throttle and choke cable goes on my 753? I'm thinking one runs over the head and the other goes under the engine shround but I can't remember for sure. Any pics or help is appreciated. Also does the little hooked spring on the govenor arm go through the notch on this disc? Thanks in advance.

post-11334-0-18616700-1390328177_thumb.j

Edited by zanepetty

Share this post


Link to post
Share on other sites

AMC RULES

Have you down loaded your engine manual Zane?

Lots of detailed info in there that will help you.   :handgestures-thumbsup:

Share this post


Link to post
Share on other sites

zanepetty

Yes I have that but the images are a little different and I don't remember the throttle cable booking up to the disc..maybe I just don't remember it but I think both cables went to the carb and I don't really remember where the cables were routed. And I don't have the the piece with the throttle bracket on it..is there an alternate way of booking up the cables?

Edited by zanepetty

Share this post


Link to post
Share on other sites


zanepetty

Thanks a bunch for that. So do I need the throttle bracket? It doesn't seem like it does anything?

Share this post


Link to post
Share on other sites

chazm

Thanks a bunch for that. So do I need the throttle bracket? It doesn't seem like it does anything?



Not sure what you mean by "throttle bracket "   :confusion-shrug:



There is a bracket that secures the end of the throttle cable housing / the throttle cable "wire end" connects to the gov arm / there is a solid rod going from the top of the gov arm to the carb linkage :handgestures-salute:

Share this post


Link to post
Share on other sites

zanepetty

That's just what they called it in the manual it goes on the shaft behind the disc..

Share this post


Link to post
Share on other sites

zanepetty

OK I've figured out I do need it. Anyone know where I could get one?

Share this post


Link to post
Share on other sites

chazm

OK Zane, I look at my k181 manual and YES,  you will need that "throttle bracket"   /   On pg 17  figure 5-4 & 5-5 shows how it is connected & how to adj once connected :handgestures-thumbupright:

I do not see that bracket in your pic above.   :confusion-shrug:   I hope you didn't misplace it :eusa-think:

Share this post


Link to post
Share on other sites

zanepetty

OK I have the bracket. I would appreciate that so much :) that would b a great help

Share this post


Link to post
Share on other sites

TT

Try this:



  • Like 1

Share this post


Link to post
Share on other sites

zanepetty

That helps. I actually saw that b4 but I just wanted to k ow exactly where the cables go and what goes on the end of that tab.

Share this post


Link to post
Share on other sites

TT

Did you see these pics?:

Share this post


Link to post
Share on other sites

zanepetty

That's what I needed. Thanks so much. This site and you guys are the best.

Share this post


Link to post
Share on other sites
