SMITTY 23 #1 Posted January 16, 2013 Can anyone give me a picture of how the throtle and govenor attach on a Lawn Ranger ? Trying to put mine back together can't remember how it went. A picture would be worth a 1000 words. Share this post Link to post Share on other sites
meadowfield 2,662 #2 Posted January 16, 2013 on the Lawn Ranger I have (1970 - V70) - it is just a fine spring between the two. Share this post Link to post Share on other sites
sorekiwi 761 #3 Posted January 16, 2013 Someone must have some pics better than mine, but here is some from the HT-55 that was on my 502 (I am reasonably sure its the same as what was on my '63 Ranger). Share this post Link to post Share on other sites
Anglo Traction 761 #4 Posted January 16, 2013 (edited) Try this post , it may help. Regards Edited January 16, 2013 by Anglo Traction Share this post Link to post Share on other sites
SMITTY 23 #5 Posted January 17, 2013 Thanks for the pictures. Non seem to match but will try and put them in place and see if any will work smitty Share this post Link to post Share on other sites
SMITTY 23 #6 Posted January 17, 2013 Thanks Anglo Traction thats it hope to twist it's tail tonight Share this post Link to post Share on other sites

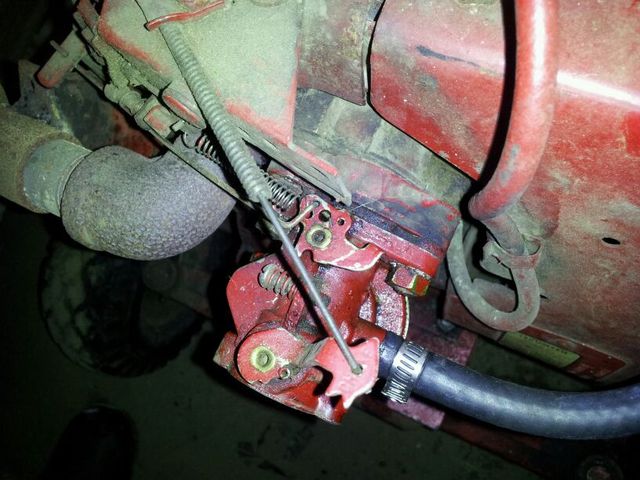

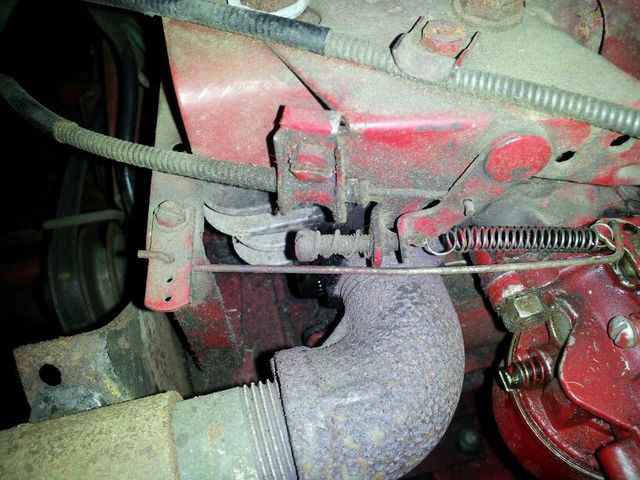

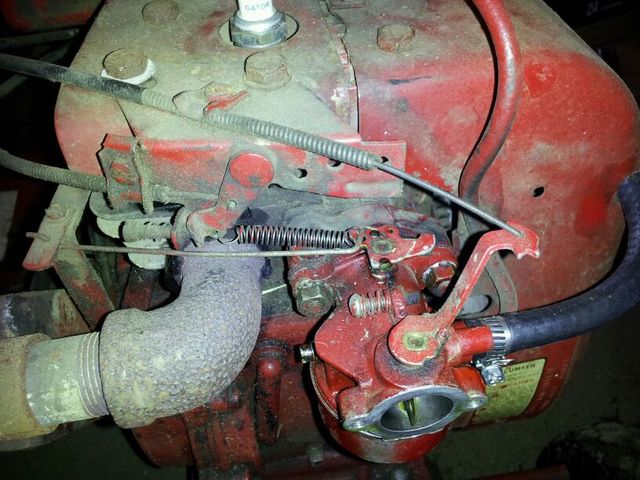

roscoemi 245 #7 Posted January 20, 2013 Here's pics of P'Chop's 1967 Lawn Ranger Share this post Link to post Share on other sites
