D-200 Tranny Dip Stick Length

[Tap53 57]

Would someone please give me the length of D-200 Tranny dip stick, plus low and full marks.

Thanks

Tim

[Trouty56 567]

Sorry Tim...I dropped the ball on this didn't I???

[wheeledhorseman 579]

I take it you have this in hand Bob?

If not I can measure mine for Tim.

Andy

[Trouty56 567]

Yeah...Tim asked me about 4 days ago and I have a pic of the motion cutout to upload and just measured the dipstick...

From the outside of the cup on the top....a small bit over 6 inches.....low mark 1/4 of an inch up from the bottom and the full mark 1 inch up from the bottom.

[Trouty56 567]

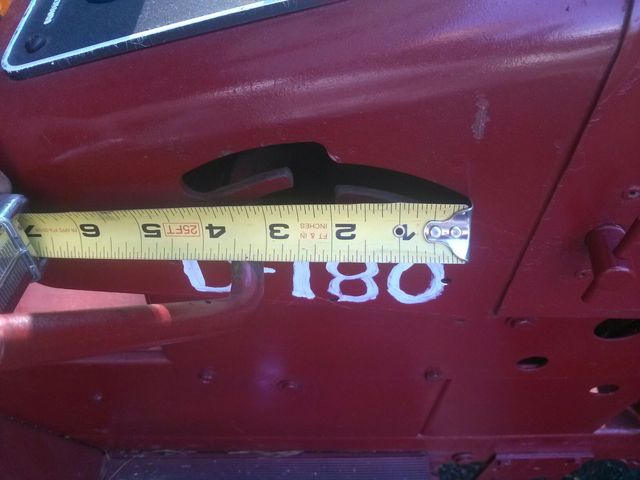

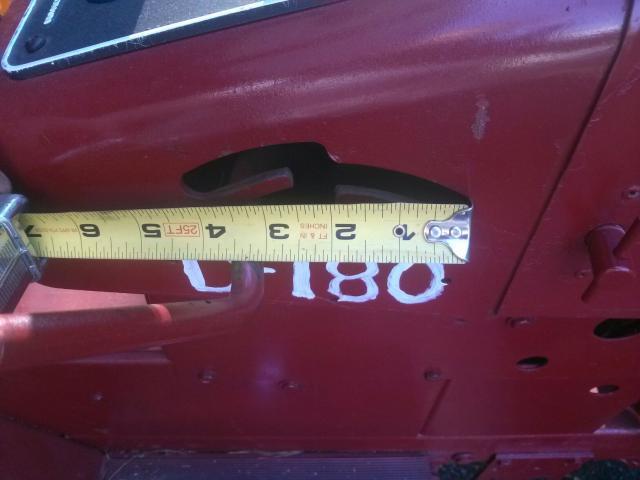

Tim....here is a pic of the area you wanted to see in detail.

sent via mobile....

[Tap53 57]

Hey you guys, I thought nothing of it, I just figured you were busy...There was no hurry for me at the beginning but all of a sudden I decided to add to my lawn and needed to do some very serious cultivating....

I know I can depend on you guys,

Thanks Bob, that helps me very much, and Andy, Thanks for offer to help..

I appreciate it..

Tim

[wheeledhorseman 579]

No worries Tim, if there's any D-200 specific detail you need don't hesitate to ask.

Andy
