04 . . Rubber Hub Caps & Lenses . . . (6 items here)

Recommended Posts


GlenPettit

Lenses: HL-5, 953, 1054

(1) The HL-5 Lenses were used on many 'Round Hoods', mostly as an option, diameter is 2.75" and they fit into Chrome Bezels, that stuck out from the sides of the hood. Available in Clear, Red & Blue (the colors are used on the 50-60's Harley Bikes; on some autos as Running/Back-up/Trunk/Hood lights, they had identical chrome bezels as these WH ones and are interchangeable). Lens is held in place by four 'spring' wires. $20/pair.  (These lenses only bulge out slightly, about 1/4").
(2) The 953 Lens (aka HL-22 Lens option) was standard for the first 6 months of '63, this 3" diameter lens snap-fits into a gold colored plastic bezel . $20/pair.   953 Rubber Bezel Gaskets, $5/pair.
(3) The 1054 Lens was use on Wheel Horses; for the last six months of the 953's, all the 1054's, and also available as an option for a few years, 3.5" diameter and cupped, fits into a double metal bezel , and is held in place by an o-ring. $25/pr, includes the two o-rings.
(4) The Red Tail Light, fits both the 953 and the 1054 tractors, (only one tail light was used), 1" diameter, snap fit. $5. . . . Tail lights are also available in colors for same $.

Prefer personal check or m.o. over PayPal (5% service fee): Combine orders to save, contact me for multiple items shipping costs (about $3.50),                 (Dec '17)
-GlenPettit@WheelHorseForum.com   . . . for PayPal transfers, use: GlenPettit@WheelHorseForum.com
Glen Pettit * 1541 N. Michigan Road * Eaton Rapids, MI 48827-9225

Edited by GlenPettit
  • Like 7

Share this post


Link to post
Share on other sites

GlenPettit

Indicator Gas Gauge  LENS CAP



ead9e12f-fef9-4045-aead-f78babb63e6f_zps



Replaces the original 113/16"OD clear indicator Gas Gauge Lens of your Kelch or Bemis 6" gauge that has probably yellowed and cracked over time to the point where you cannot see the dial.  Simply remove your old lens and glue in this new one with 2-3 drops of glue.  The small Vent Hole is located out the side of the small raised center dome, going out horizontal, to almost eliminate the chance of any dust or water from getting in.  If your float is still OK, why spend $15 for an entire new gauge. This offer is for the Epoxy lenses only, not the gauges shown. The lenses are 98+% translucent and will fit any Kelch, Bemis or similar (21/2"OD cap) with any length stem and many other brands of Garden Tractors use this same indicator gas cap lens.



These Lenses are $5 each,    plus $3.50 first class shipping (for up to six lenses).  (Dec. '17)

Prefer personal check or m.o. over PayPal (or just add their 5% service fee):  Orders may be combined. -GlenPettit@WheelHorseForum.com  . . . for PayPal transfers, use: GlenPettit@WheelHorseForum.com

Glen Pettit * 1541 N. Michigan Road * Eaton Rapids, MI 48827-9225

Edited by GlenPettit
  • Like 2

Share this post


Link to post
Share on other sites

GlenPettit

Inexpensive Front Wheel Hub Caps
We now have an inexpensive alternative to the official Wheel Horse Logo Flex Rubber Hub Caps, these are plain Caps and without the internal rib, they will fit on your 1.5" hubs securely and stay on during normal use.  Not as nice or as tight as our original hub caps, but very affordable and looks good.

11/2" Hub Caps (1.5" or 38mm), in Black or Red, mix-&-match colors: $2@,  6/$10$16/dozen  + $3.50 ship   (left 2 examples
15/8" Hub Caps (1.6" or 41mm), in Black only, fits most other GT brands  $2@,  6/$10,  $16/dozen  + $3.50 ship

Edited by GlenPettit
  • Like 4

Share this post


Link to post
Share on other sites

GlenPettit

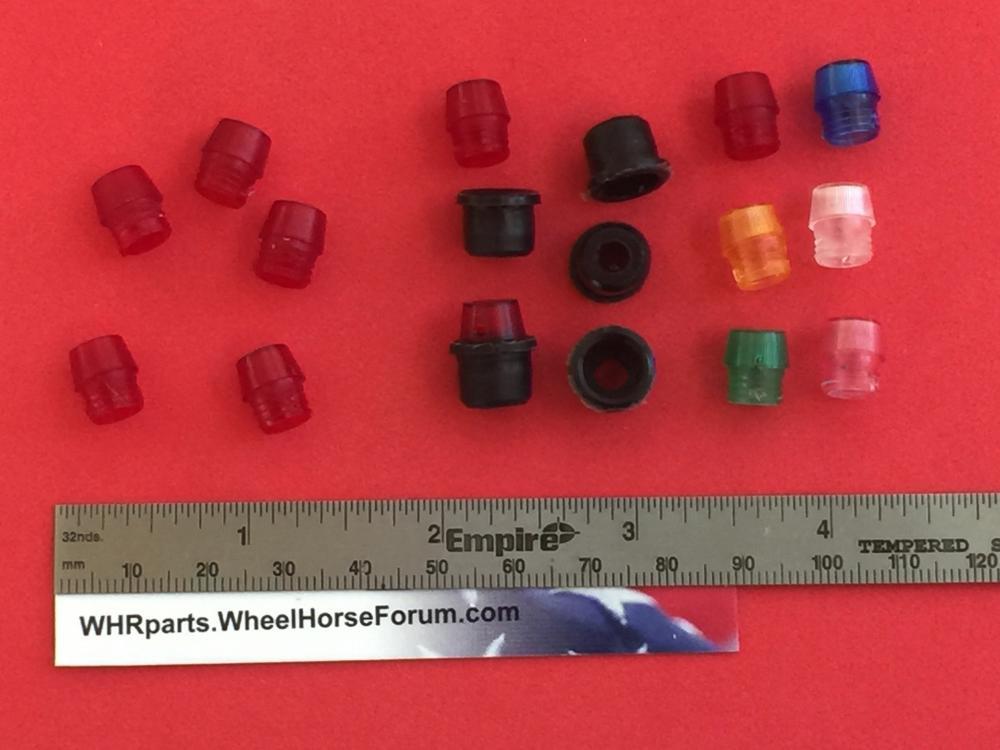

Dashboard Indicator Warning Lenses

These were mainly used on the 80's and later 200, 300, 400 and 500-series tractors, the dash has five red warning lights.  Because the rubber bushing holding them in dries & cracks, the plastic lenses often fall out and are lost (rubber restorer annually, or rubber cemented in will reduce this).  We have both the correct lenses and bushings (colored lenses, same $), mix-or-match:  $1@ or 10/$8 (+shipping).  (Always insert the rubber bushing fully in, first)                                     [03/28/17]




Edited by GlenPettit
  • Like 2
