C121 Ignition switch

[Gras 5]

Hello

I have a problem with my C121. I started by changing the ignition switch because the old one seemed rusted at the electrodes, but it didn't change anything, then I bypassed the 3 safety switches (seat, PRO Interlock and pedal interlock), but still nothing. I now have a doubt about the ignition switch I installed, but I threw away the old one. How can I make sure that the one I put in is the right one?



Thanks from France for your help

[pfrederi 20,532]

Welcome



If your engine has battery Points and coil ignition  then one of the spade terminals will have an "I"  the other will have  S A R B   if there is an M terminal you have the wrong switch.



Bienvenue Si votre moteur est équipé d'un allumage à rupteur et à bobine, l'une des bornes plates portera la mention « I » et l'autre « S A R B ». Si vous voyez une borne « M », votre commutateur est incorrect.

[Gras 5]

Thanks a lot for the reply. How could I know of my engine has battery points and coil ignition ?

[Gras 5]

Just now, Gras said:

Thanks a lot for the reply. How could I know if my engine has battery points and coil ignition ?



[Easton Rich 1,222]

You'd have a points ignition if you have a stock engine. This is what a coil looks like:

[Gras 5]

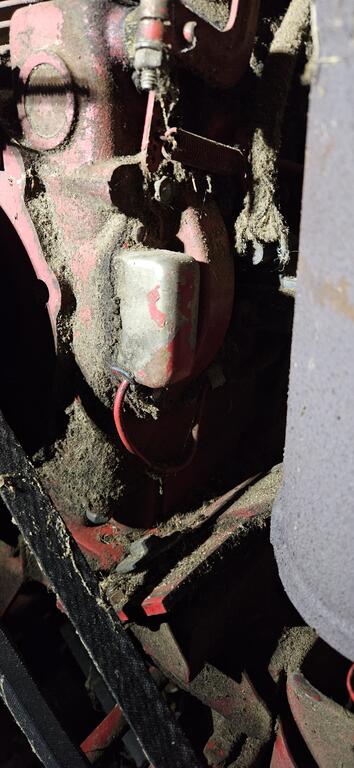

Yes indeed, I have a coil. Sorry for blunt questions : what is a points ignition ?

[Gras 5]

To help, which kind of photo should I share ? or which kind of info ?

[Easton Rich 1,222]

Its behind a cover that looks like this on the side of your engine

Here is what the points look like:

They mount under that cover

[gwest_ca-(File Mod) 12,233]

Click on the picture in this link.

There are small pictures on the page that comes up. Click on one. They show what the back of the switch should look like.



[Gras 5]

Hello



Indeed, I think I have the points.

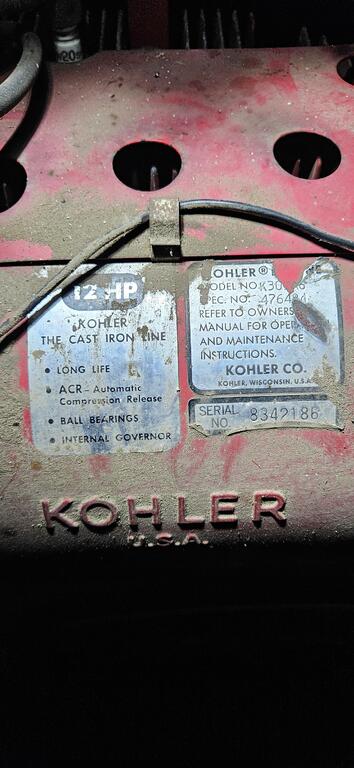

I also took a picture of the IDs.

Thanks a lot for your help

[953 nut 66,040]

The AMP METER is sometimes a problem that is easy to overlook. Connect the two wires going to the meter together and see if that will resolve the problem.

[Gras 5]

Hi all



Thanks to your help, I replaced the ignition switch by 2 simple switches and succeeded to start the engine. I know now that the ignition switch has to be replaced. I'll try to find a new one.



Thanks again

[953 nut 66,040]

2 hours ago, Gras said:

I know now that the ignition switch has to be replaced. I'll try to find a new one.

103990 is the switch you need.
