SNOW PLOW EXTENSION IDENTIFY ?

[edgcooper 15]

I recently purchased this extension for a snow plow but don't know what model WH it is meant for.  4 inches longer than one for a 520H. Any of you experts have an opinion?

[ri702bill 10,503]

Is that the part to extend the plow forward about 4" when you have a model like the 520H with the HD forward swept front axle?? Certainly, looks like it...

[edgcooper 15]

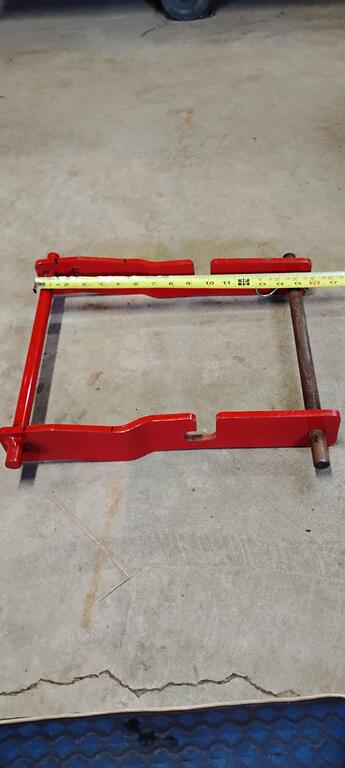

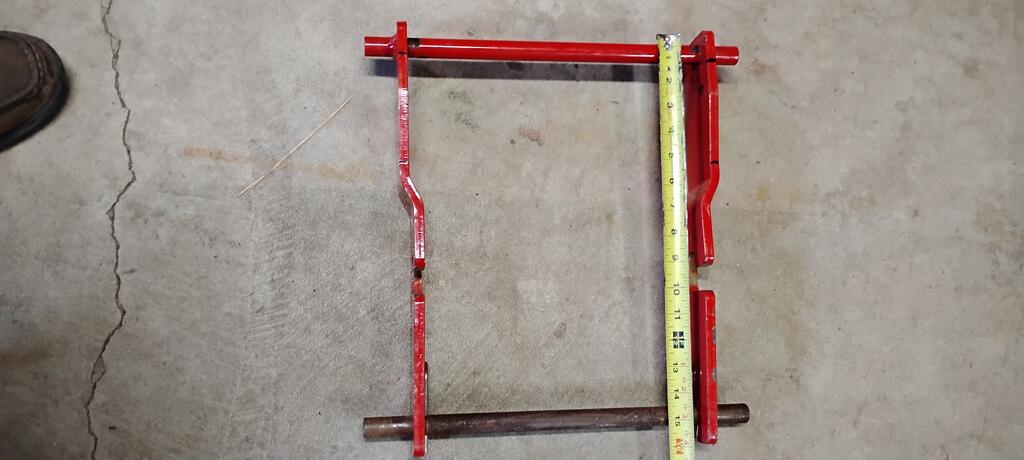

Yes, this is a extension for a plow frame but information I have found here on the forum it is 4" longer than the correct one. Pictures on forum showing dimensions of correct extension overall is 12 1/4 inches. This extension is 16" overall as shown in pictures.  I tried using this on my frame but puts the bracket for pivot lever to far front which hits steering linkage when raising plow frame up. Was advertised as extension for 520 WH. I have a 1994 520H.

[ebinmaine 75,531]

Maybe a 200 series?



Or another implement altogether?

[Handy Don 15,049]

2 hours ago, edgcooper said:

Was advertised as extension for 520 WH.

Unless it was for adapting a standard 3-,4-, or 5-series plow to work on a 520xi?

The xi’s have longer wheelbases 52" inches vs. 47.5 for the 520-H (not swept) -- a difference of 4.5 inches



Edited Monday at 11:56 PM by Handy Don

[JoeM 9,221]

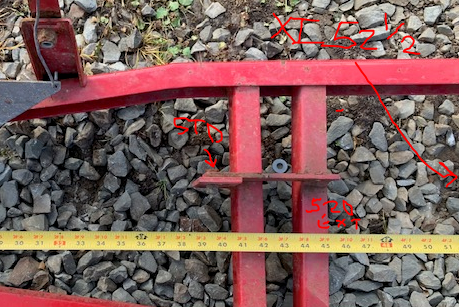

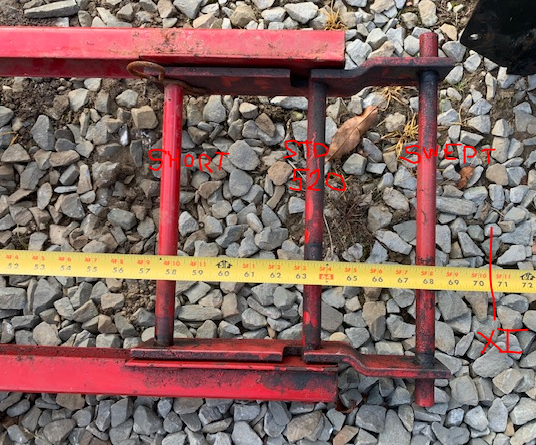

the pics show measurements of the plow frames, distance taken from the swivel bolt in the front.





Difference of lifting attachment points, xi is 52 1/2  Also the standard plow handle will need modified for

use on the xi because the running boards are wider and different.

[edgcooper 15]

Thanks Don & Joe. I think the info you two have presented shows that the extension I have is for 3, 4 and 5 series plows to use on the XI series tractors. It seems to be the only explanation.  Has any of you ever seen or heard of this extension being available?

[Handy Don 15,049]

21 hours ago, edgcooper said:

Has any of you ever seen or heard of this extension being available?

I haven’t, but I’ve not had much contact with the xi machines.

That said, it makes perfect sense to me that Toro would make a few fairly inexpensive parts to adapt a widely-available “standard” dozer blade rather than make an xi-specific frame. The xi’s were not a high-volume product line.

[edgcooper 15]

Now do I try to sell it or cut it down to correct length for me to use for my 94 520H?

[gwest_ca-(File Mod) 11,834]

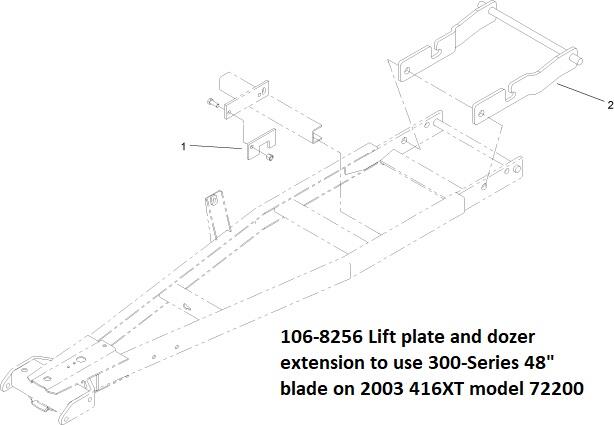

There was a retrofit kit to use the 300-500-Series blade on the 5xi but looks like it was the 5xi frame only so the older blade could be added. No extension included.



[gwest_ca-(File Mod) 11,834]

Wonder if it is this one?

[Handy Don 15,049]

5 hours ago, edgcooper said:

Now do I try to sell it or cut it down to correct length for me to use for my 94 520H?

My first instinct would be to add an extra ¾” rod through the side plates at the distance you need for your tractor and let the thing hang out the back
