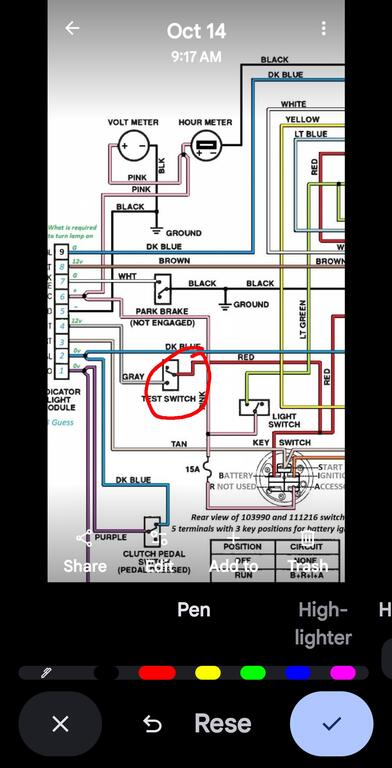

Joefrommi65 26 #1 Posted Thursday at 02:41 AM (edited) Sorry to ask again but wires on my circuit board test switch fell apart from the switch according to the diagram there are only 2 wires on the wireing diagram, 1 to the ignition switch red positive wire and a gray wire going to the circuit board what would be the third wire for ? Thanks again for any help Edited Thursday at 04:05 AM by Joefrommi65 Sorry very much wrong area to post Share this post Link to post Share on other sites
gwest_ca-(File Mod) 11,701 #2 Posted Thursday at 03:15 AM Have a tractor model and serial number? Some used 3-terminal switches some 9-terminal and some are toggle and some are push button. Have a test switch part number? 1 Share this post Link to post Share on other sites

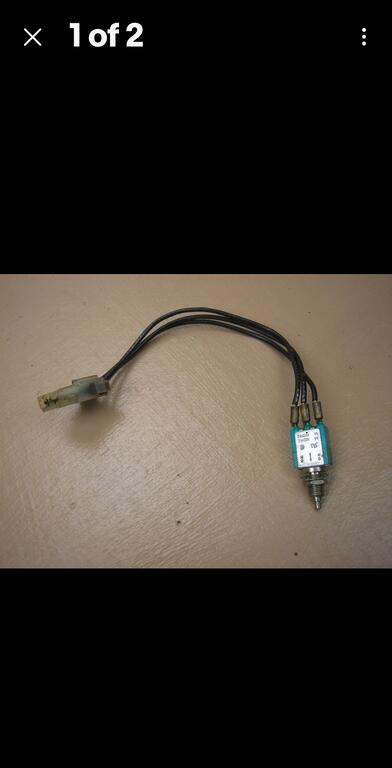

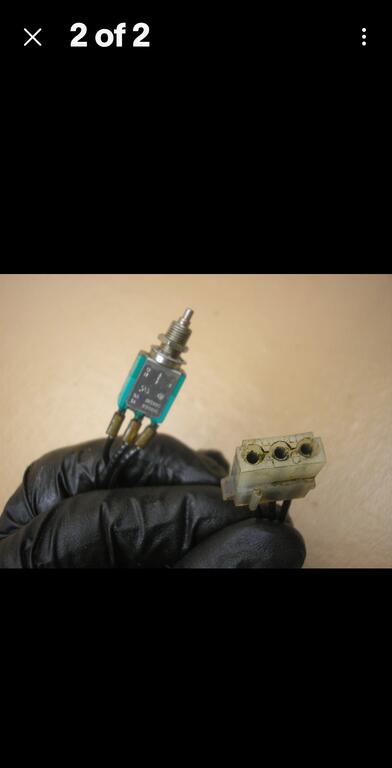

Joefrommi65 26 #3 Posted Thursday at 03:54 AM 31-160802 /1990/ 416-8 not sure of the switch model number but here a picture Share this post Link to post Share on other sites
Joefrommi65 26 #4 Posted Thursday at 04:07 AM Sorry wrong area to post this can it be moved to the electrical area or just delete it please Share this post Link to post Share on other sites
gwest_ca-(File Mod) 11,701 #5 Posted Thursday at 04:25 AM Uses just 2 of the wires. 1 Share this post Link to post Share on other sites
gwest_ca-(File Mod) 11,701 #6 Posted Thursday at 09:34 AM Just a guess but I would put red to the C or common wire and the grey to the NO wire. NO is normally open which is when the switch is at rest. If it does not work you would need to change the grey to the NC terminal. Normally closed is when activated. They are using just 1/2 of the switch. The switch in this diagram is shown NO, 1 Share this post Link to post Share on other sites
Joefrommi65 26 #7 Posted Thursday at 04:44 PM Thank you guessing the third wire is not used . Share this post Link to post Share on other sites
