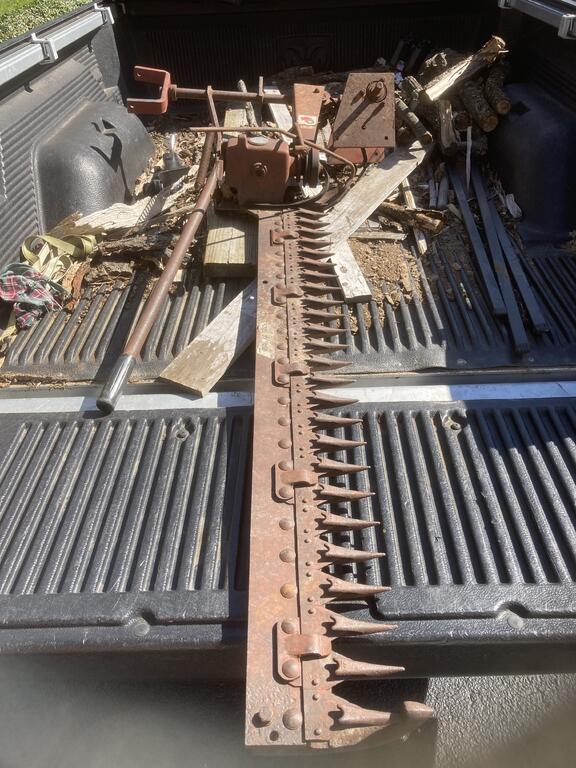

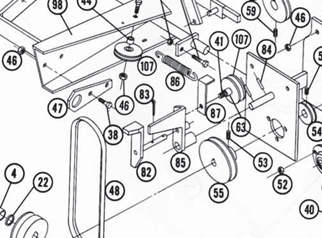

"Manic-Mechanic" 1,326 #1 Posted October 18 (edited) Picked up a functioning 50” sickle which been watching for, forever! I couldn’t identify this unit, appears to be a “hodgepodge” of parts, but it functions and has solid yoke. As rare as these are here best to jump on it, regardless! (Not sure exactly what model of 50" as the rear bracket does not extend, maybe SMS-50 or 95% of one!) (Nice Winter protect to rebuild) Pedal Assembly: I see the part numbers in the SMS-50 manual 82-3380 Ass'y Pedal Trip 85-3381 Pedal 87-3760 Clip Pedal Assembly-1055 manual 79-4246 80-4239 Which I will modify part 4239 over to 3381 by drill & tap 5/16-18 hole Edited October 21 by "Manic-Mechanic" Added pictures Share this post Link to post Share on other sites

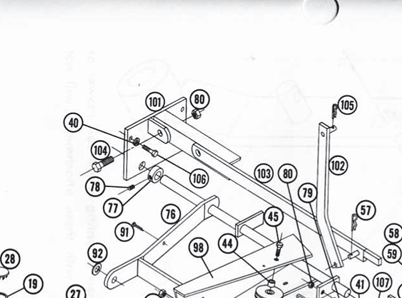

ri702bill 10,074 #2 Posted October 18 Note that the flat bar #82 may or may not have a "Z" bend. Pedal #80 and Pivioting latch #79 should be the same. 1 Share this post Link to post Share on other sites
"Manic-Mechanic" 1,326 #3 Posted October 18 (edited) Then the "Z" bend I can take care of, that's good news! There's a couple of other things not sure of like the lift rod placement. Theres the rear bracket which is easier for me to work with. On the 800 Special I may be able to drill a hole in the existing cross member, know soon enough. "Improvise, adapt and overcome" Edited October 18 by "Manic-Mechanic" 1 Share this post Link to post Share on other sites
gwest_ca-(File Mod) 11,745 #4 Posted October 18 7-1321 has a 42" bar. This link should take you to all the 50" bars but in no particular order https://www.wheelhorseforum.com/search/?&q="Mower Sickle Side 50in"&type=downloads_file&search_and_or=or&sortby=relevancy 1 Share this post Link to post Share on other sites
"Manic-Mechanic" 1,326 #5 Posted October 18 (edited) I couldn't find the one like this:SMS-50? Whatever it is I can adapt it but would like to know, the paper tag is faded so it's older for sure. Edited October 18 by "Manic-Mechanic" Share this post Link to post Share on other sites
gwest_ca-(File Mod) 11,745 #6 Posted October 18 SMS-506 or newer? Share this post Link to post Share on other sites

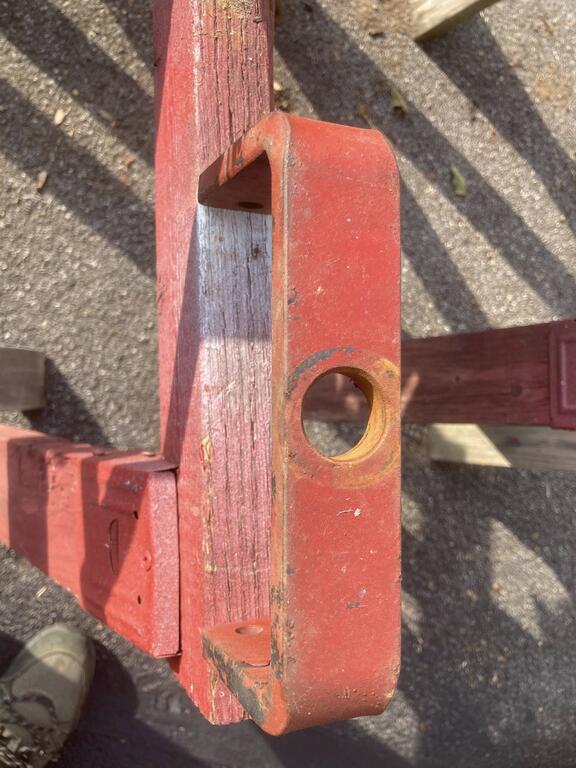

"Manic-Mechanic" 1,326 #7 Posted October 18 (edited) The assembly resembles the SMS-506 but has a U bracket. SMS-506 has a whole assembly that I do not. Instead, I have this U pictured Edited October 19 by "Manic-Mechanic" Share this post Link to post Share on other sites
gwest_ca-(File Mod) 11,745 #8 Posted October 18 Are you taking about item 65 near the top of the page? Share this post Link to post Share on other sites

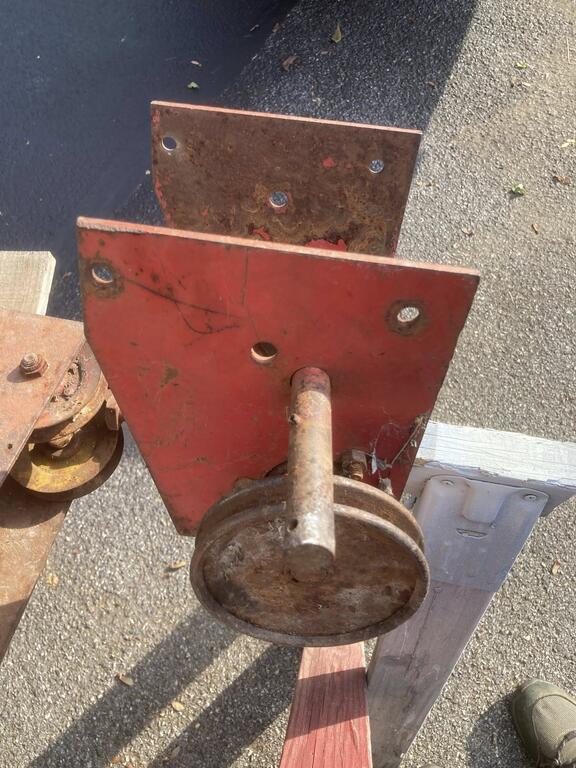

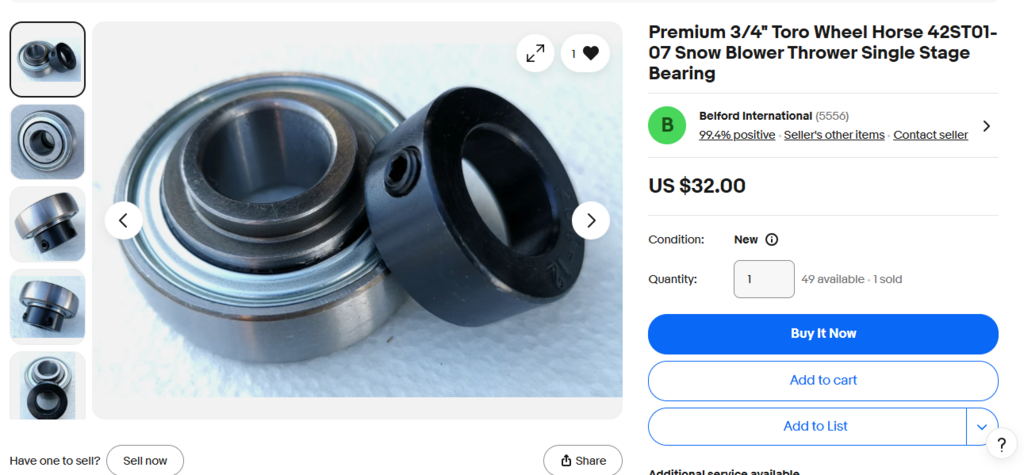

"Manic-Mechanic" 1,326 #9 Posted October 19 (edited) On 10/18/2025 at 7:59 PM, gwest_ca said: Are you taking about item 65 near the top of the page? The two sickles use the same flanged bearing within the shaft support ass'y. SMS-50, part 1968 7-1311, part 5269 Why the numbers differ, I am not sure.... (However, it is 3/4 bore 52mm od) Edited October 25 by "Manic-Mechanic" corrected bearing needed Share this post Link to post Share on other sites
gwest_ca-(File Mod) 11,745 #10 Posted October 19 I was looking for a U-bracket. Share this post Link to post Share on other sites

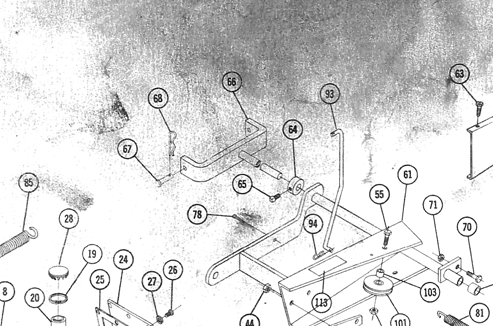

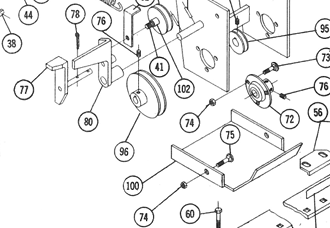

"Manic-Mechanic" 1,326 #11 Posted October 19 6 minutes ago, gwest_ca said: I was looking for a U-bracket. Not sure what this is called, not in the SMS-50 parts. Closest thing is in the 7-1311 manual 0 Diagram number 66, part 7615, but it has a sliding rod Share this post Link to post Share on other sites

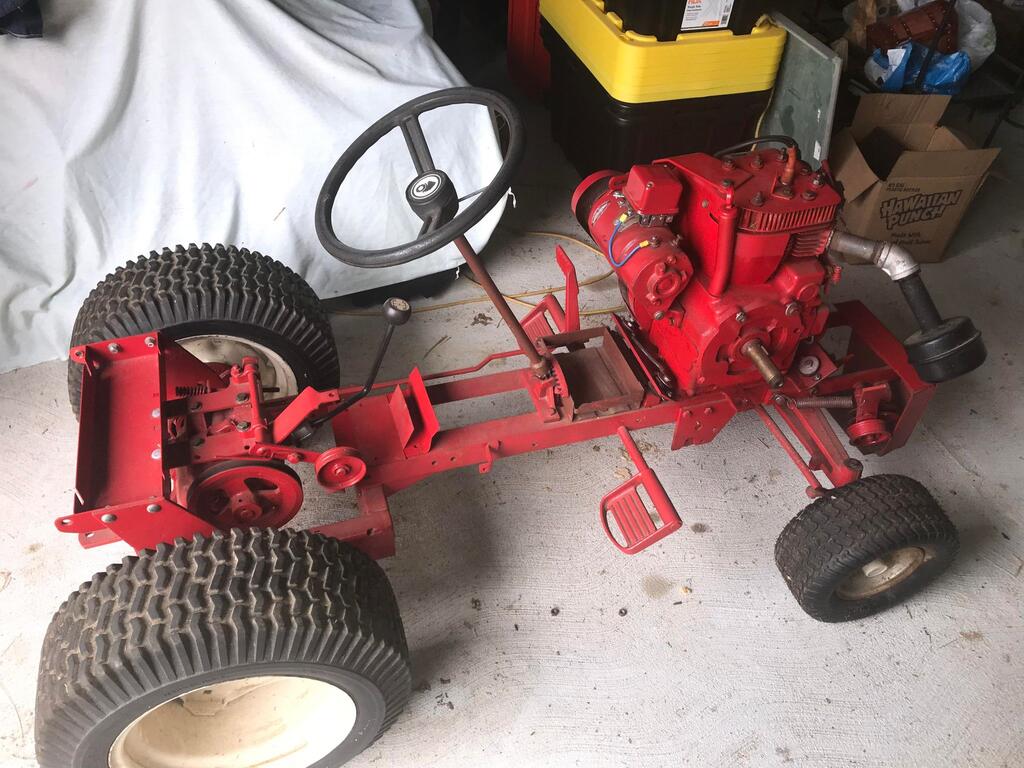

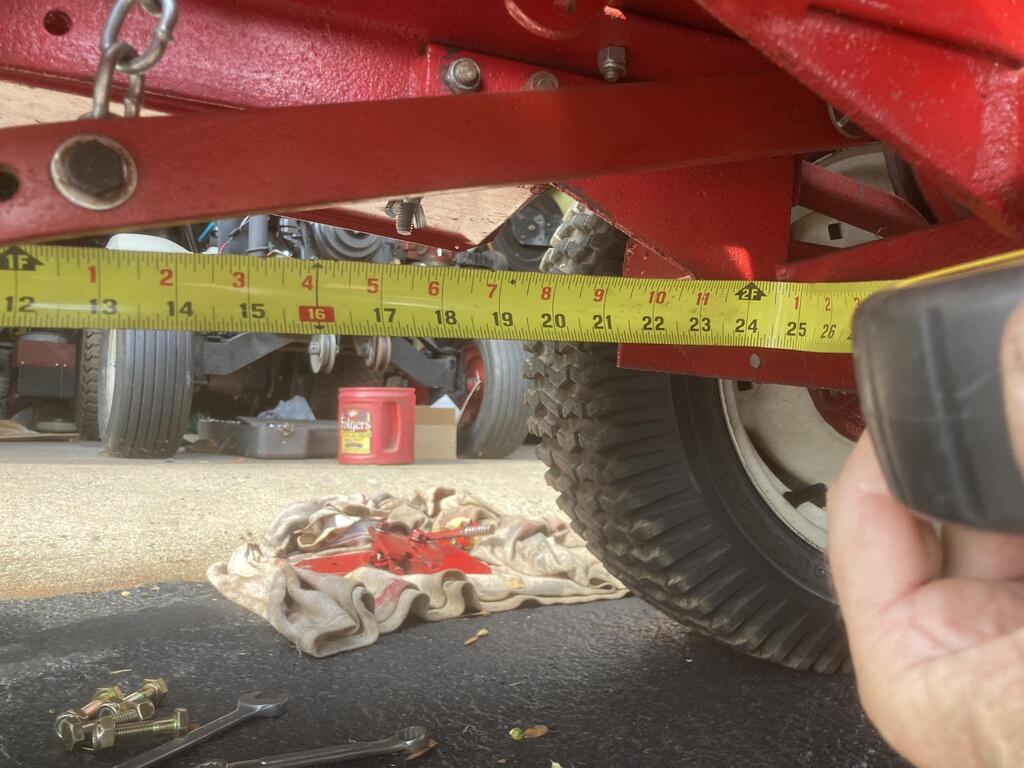

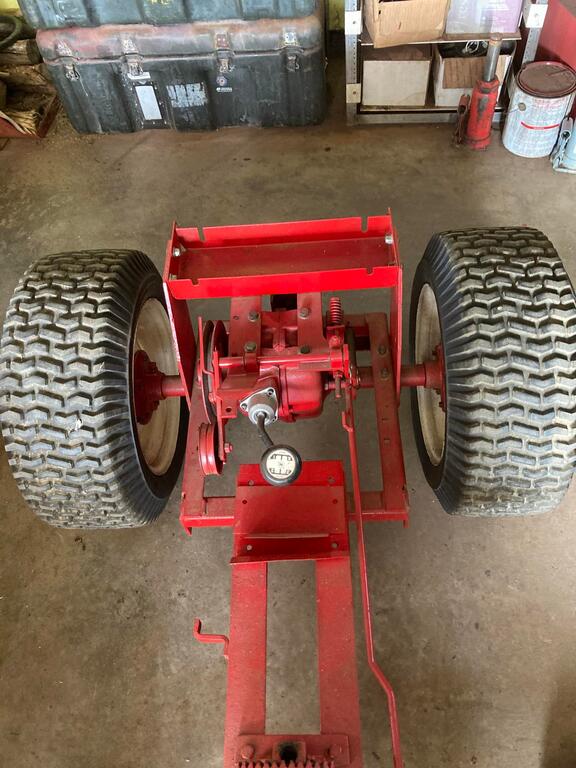

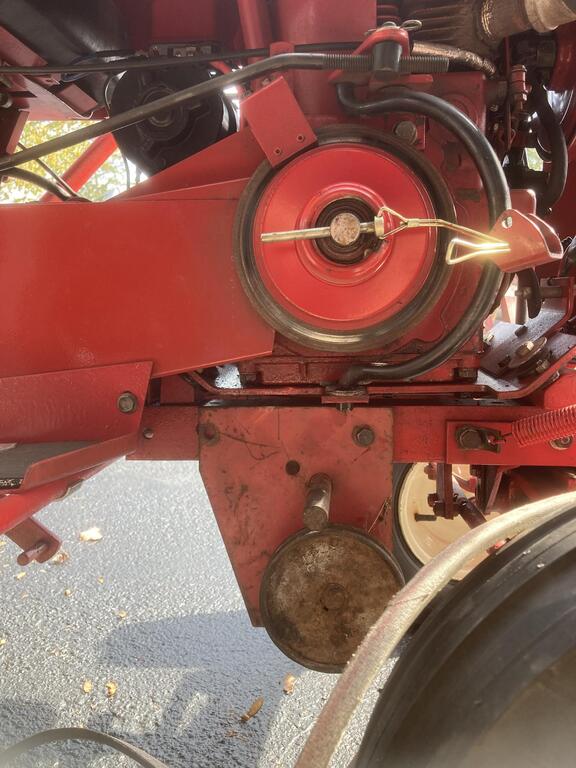

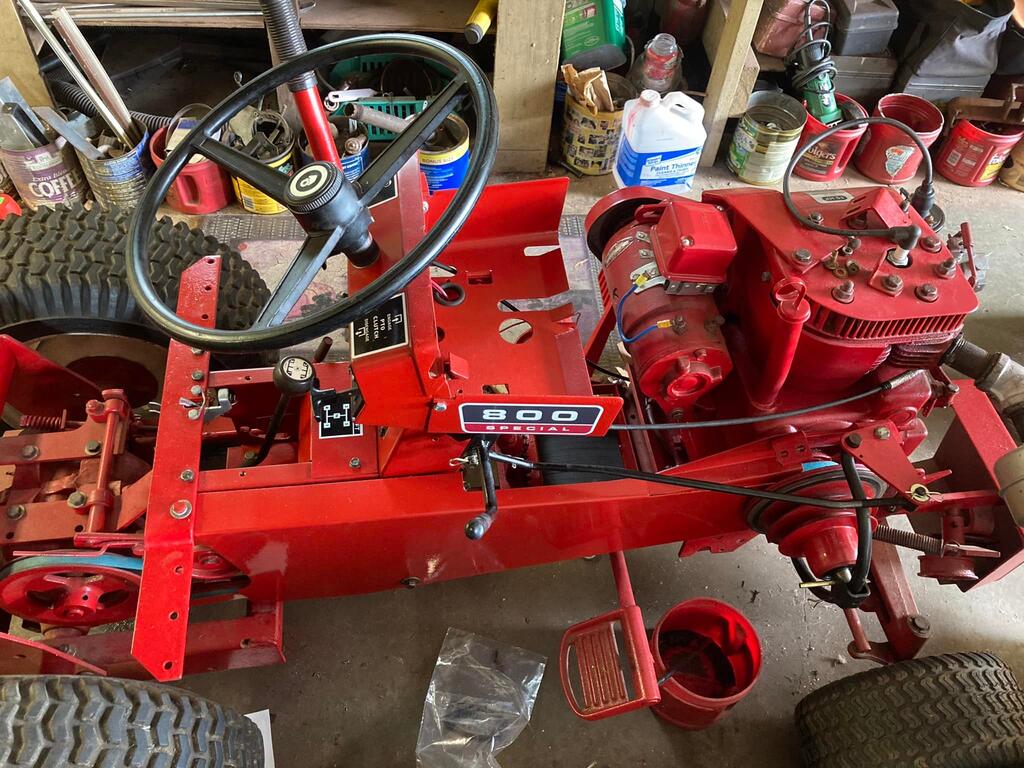

"Manic-Mechanic" 1,326 #12 Posted October 19 (edited) The 800 Special frame much like the A90. The rear sickle mount falls just in front of the cross member. (Don't mind the dust this project set for over a decade on the side lines) So, basically just below the dash tower. It is 19" from the rearward edge of the side plate, so a mount be will right on the cross member. I realize this is unorthodox, apologies to the purist among you... Edited October 19 by "Manic-Mechanic" glitches! 1 Share this post Link to post Share on other sites
gwest_ca-(File Mod) 11,745 #13 Posted October 19 Will bet yours has the sliding rod also. That is why it has a set screw collar on it. Share this post Link to post Share on other sites
peter lena 9,460 #14 Posted October 19 @Manicmacanic great opportunity , to ENHANCE / INSURE , VERIFY EVERY SLIDE . ROTATIONAL POINT , polyurea rated lube , insures smooth / easy function , never done a sickle , but , thought about every stage of issue . the PTO LEVER SET UP ,is often neglected , sloppy , and lacking improvement , the insured , drag and engagement on that area , can and should be improved . those bearing's probably have a minimal lube , incremental rotational , hang ups start a resistance to function . looks interesting to me . improve as you go , pete Share this post Link to post Share on other sites

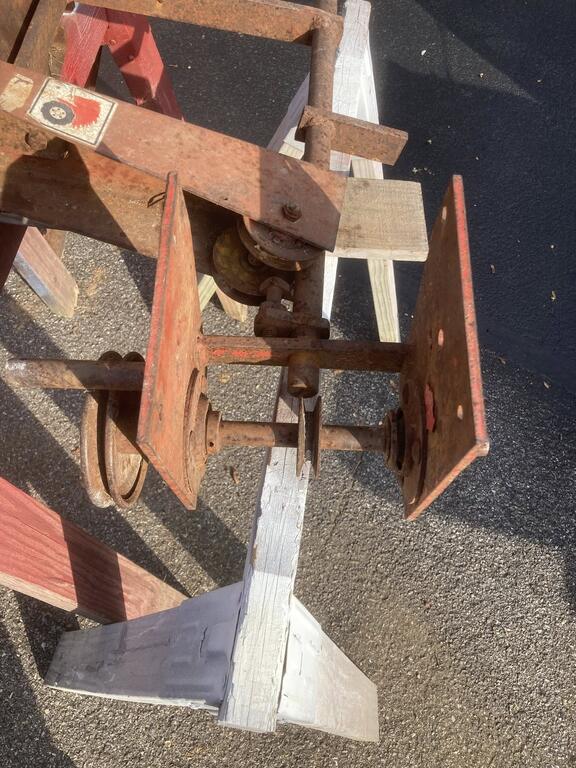

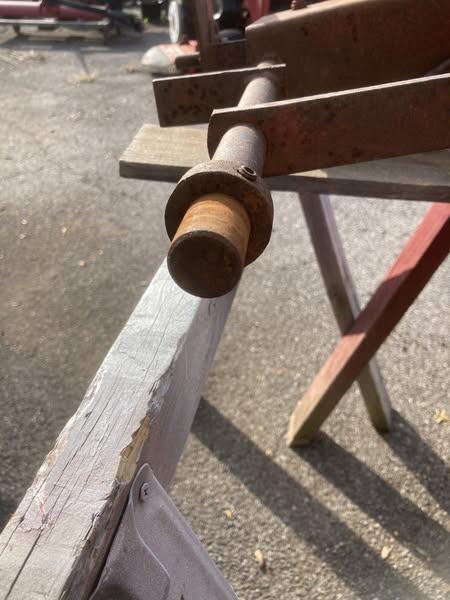

"Manic-Mechanic" 1,326 #15 Posted October 19 (edited) 8 hours ago, gwest_ca said: Will bet yours has the sliding rod also. Thatass is why it has a set screw collar on it. No, set collar for depth control only, no rod. Betting this unit is a combination of sickles married. This is ass'y bracket, but no rod You can see this is solid This frame is not from SMS-506 That and its locked tight, set on some other sickle likely in the weather a lot longer Edited October 19 by "Manic-Mechanic" Share this post Link to post Share on other sites
"Manic-Mechanic" 1,326 #16 Posted October 19 1 hour ago, peter lena said: @Manicmacanic great opportunity , to ENHANCE / INSURE , VERIFY EVERY SLIDE . ROTATIONAL POINT , polyurea rated lube , insures smooth / easy function , never done a sickle , but , thought about every stage of issue . the PTO LEVER SET UP ,is often neglected , sloppy , and lacking improvement , the insured , drag and engagement on that area , can and should be improved . those bearing's probably have a minimal lube , incremental rotational , hang ups start a resistance to function . looks interesting to me . improve as you go , pete Yes indeed! I will dismantle it and change bearings, verify solid contact points and alignment. Remove every bolt and polish, replace as needed. Then while apart make accommodations on the tractor frame prior prep & paint. Use the best grease too Pete! 1 Share this post Link to post Share on other sites
peter lena 9,460 #17 Posted October 19 @Manicmacanic regularly suggest detailing , found that to be the greatest improvement to a number of horse issues , realise that many use the book for every / anything , which is ok , but you will never find a suggestion , of smooth efficient operation , personally look at any intended movement start , as an area to ENHANCE . make smooth / easy efficient usage . just a PTO LEVER START POINT , next to battery tray , is amazingly simple / easy , like this , try / test / try . experiments tried on my c-85 and adapted to , 2 other horses , REPEDIVE ISSUES are what you want , for a change to eliminate them . pete Share this post Link to post Share on other sites

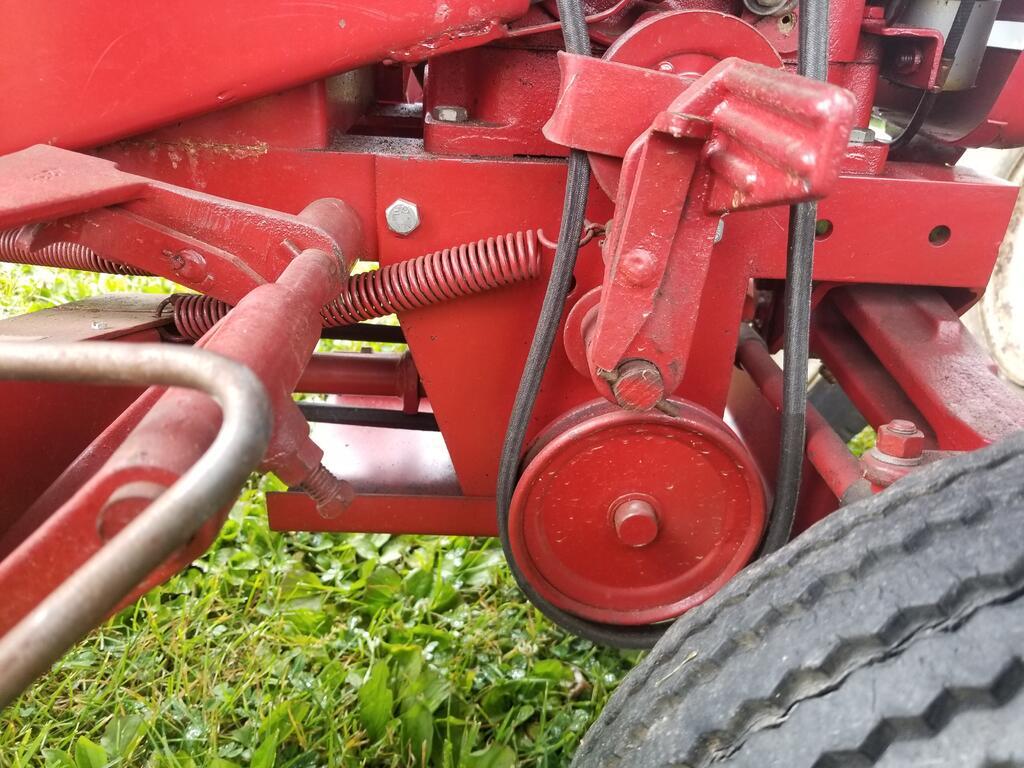

"Manic-Mechanic" 1,326 #18 Posted October 19 (edited) 8 minutes ago, peter lena said: @Manicmacanic regularly suggest detailing , found that to be the greatest improvement to a number of horse issues , realise that many use the book for every / anything , which is ok , but you will never find a suggestion , of smooth efficient operation , personally look at any intended movement start , as an area to ENHANCE . make smooth / easy efficient usage . just a PTO LEVER START POINT , next to battery tray , is amazingly simple / easy , like this , try / test / try . experiments tried on my c-85 and adapted to , 2 other horses , REPEDIVE ISSUES are what you want , for a change to eliminate them . pete Yes, I conquer totally. I build a lot of custom PTO's. Repetition is definitely key I built this utilizing three models of wheel horse to get the PTO & Clutch to function flawlessly Edited October 19 by "Manic-Mechanic" 1 Share this post Link to post Share on other sites

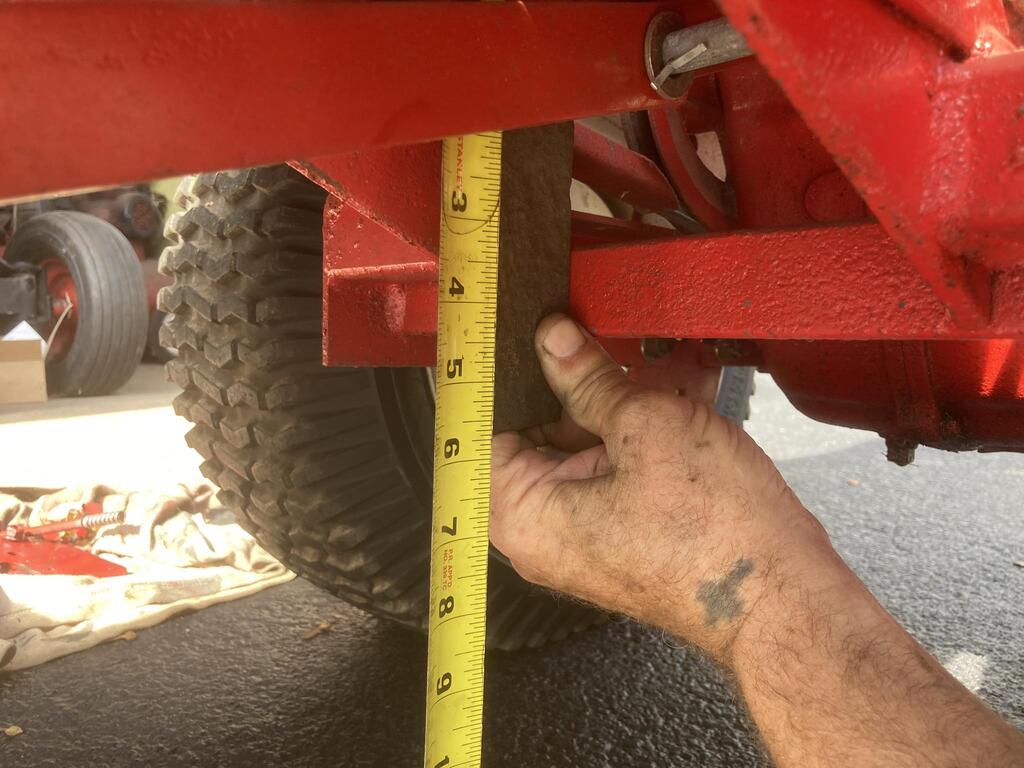

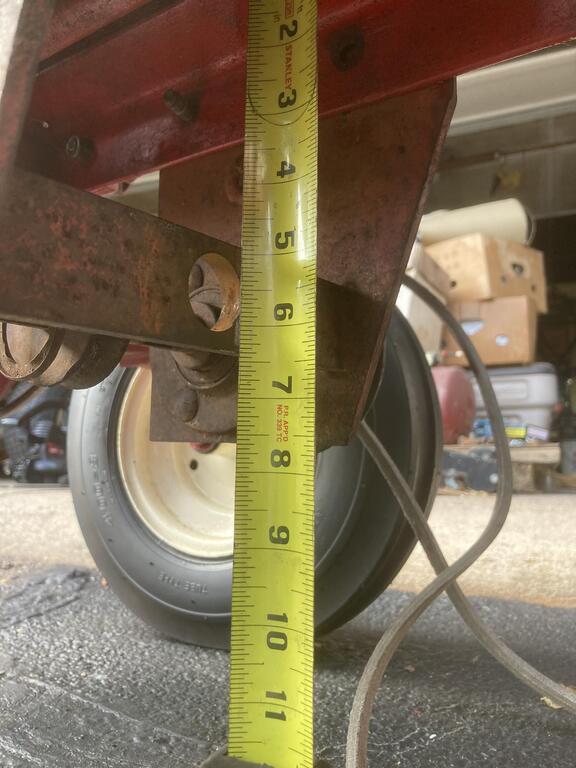

"Manic-Mechanic" 1,326 #19 Posted October 19 I have question about the unit in general: Should my hangers be set so that the sickle frame is level-5-1/2" down as is the ass'y shaft support? Share this post Link to post Share on other sites
"Manic-Mechanic" 1,326 #20 Posted October 19 (edited) Also, the support can be set closer to the foot or back directly aligned with the drive pulley? I mean the hangers would be ideal if the support is directly aligned with the drive pulley. would require a set of holes added to the frame. As seen on the earlier machines the support is off center of the drive and closer to the foot rests Edited October 19 by "Manic-Mechanic" Share this post Link to post Share on other sites

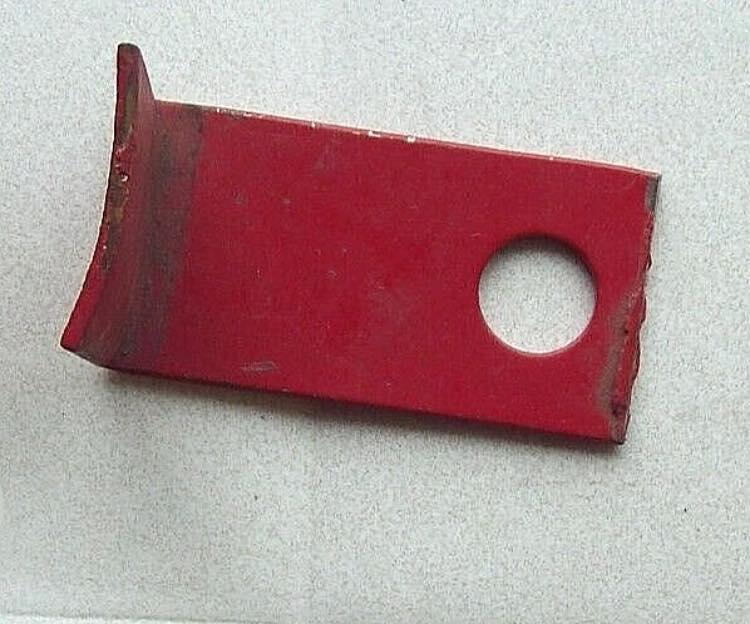

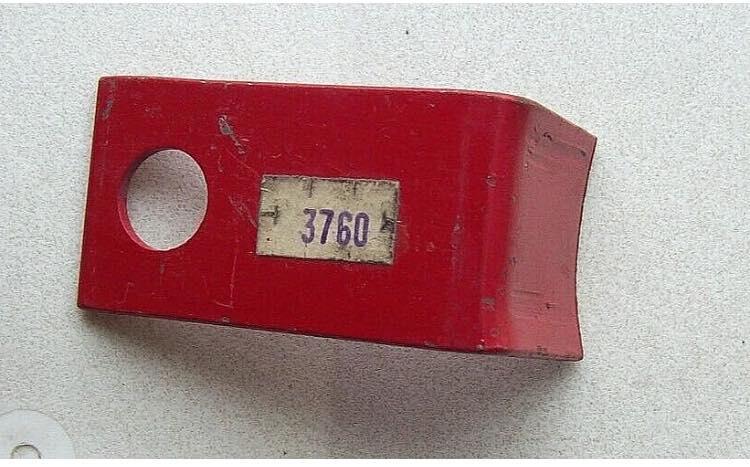

"Manic-Mechanic" 1,326 #21 Posted October 21 On 10/18/2025 at 3:53 PM, "Manic-Mechanic" said: Then the "Z" bend I can take care of, that's good news! There's a couple of other things not sure of like the lift rod placement. Theres the rear bracket which is easier for me to work with. On the 800 Special I may be able to drill a hole in the existing cross member, know soon enough. "Improvise, adapt and overcome" This is the part used on the SMS-50 for idler, diagram 87, part 3760 called a clip also. Share this post Link to post Share on other sites

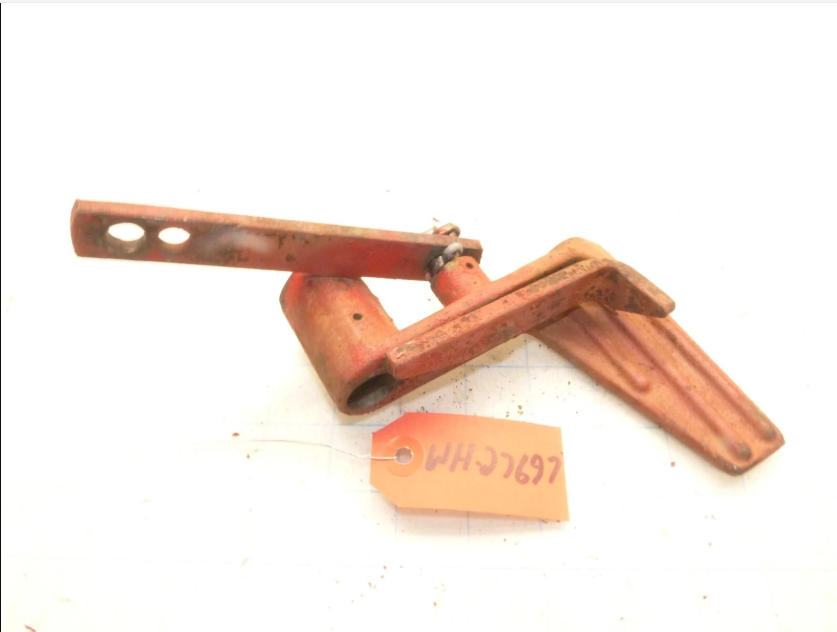

"Manic-Mechanic" 1,326 #22 Posted October 21 (edited) On 10/18/2025 at 3:49 PM, ri702bill said: Note that the flat bar #82 may or may not have a "Z" bend. Pedal #80 and Pivioting latch #79 should be the same. This will be getting a 5/16-18 hole drilled and tapped to accommodate 3760 and the pulley 1623, again becoming 3381 Edited October 21 by "Manic-Mechanic" Share this post Link to post Share on other sites
