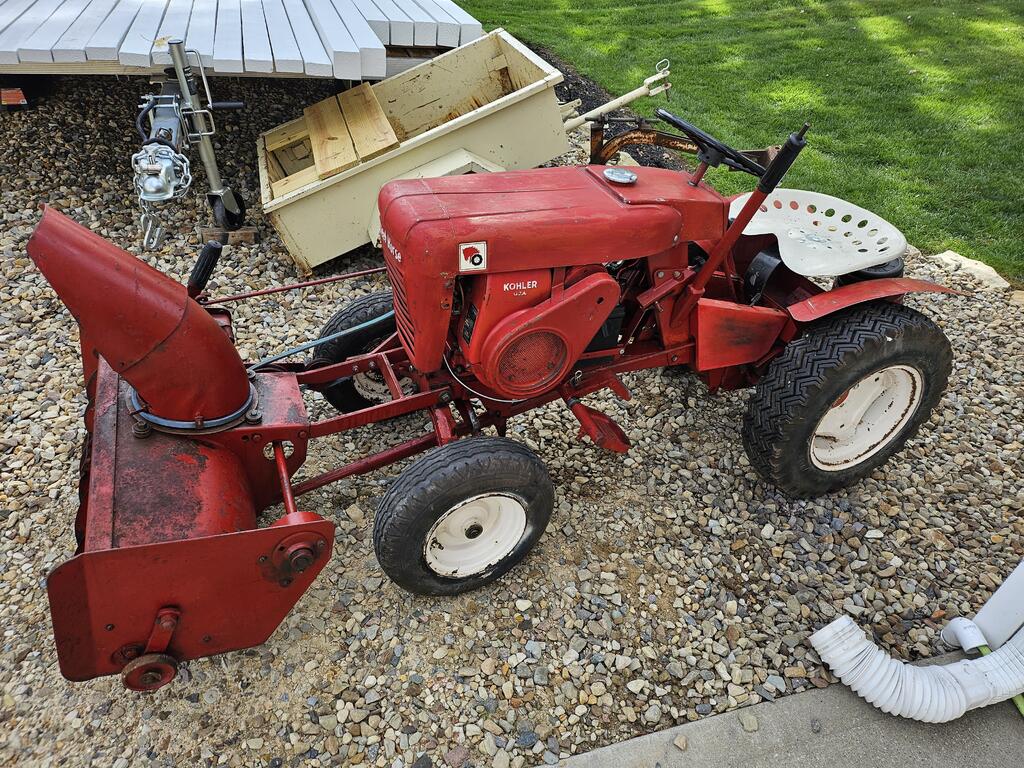

ML3 1,924 #1 Posted October 12 (edited) Been messing with the 702. Trying to get drive belt to stop moving when clutch is engaged. Seems like no matter what I adjust it makes little to no difference. The tab on front of belt guard is broke off. I repaired/straightened belt guard, belt retainer bolt near transmission pulley holding belt guard on is installed properly. I made a tab for front of belt guard & it made no difference. Replaced belt too. Also all the pulleys spin freely & grooves are free of rust, debris, etc. I gotta be missing something so simple.... Edited October 12 by ML3 1 Share this post Link to post Share on other sites

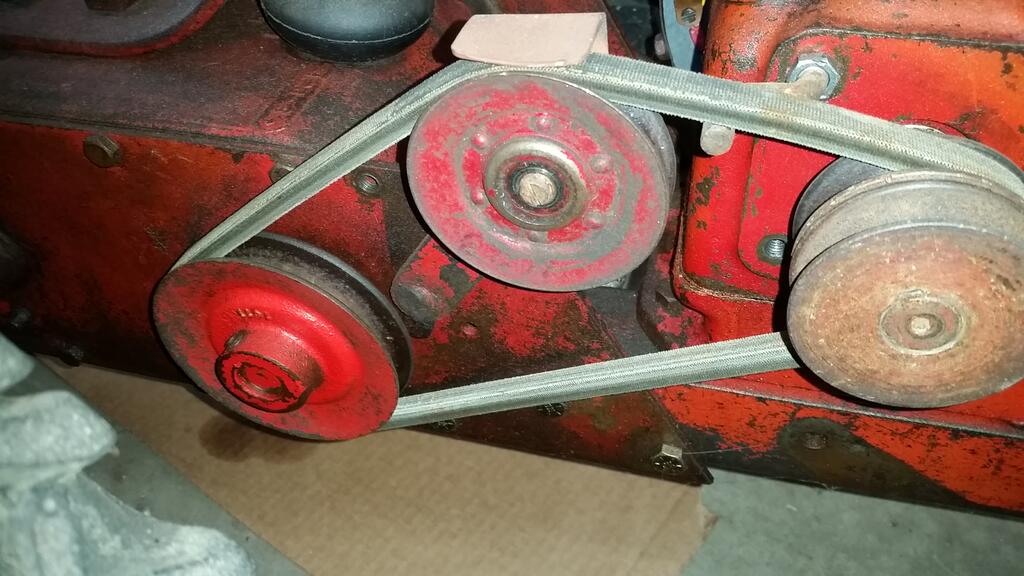

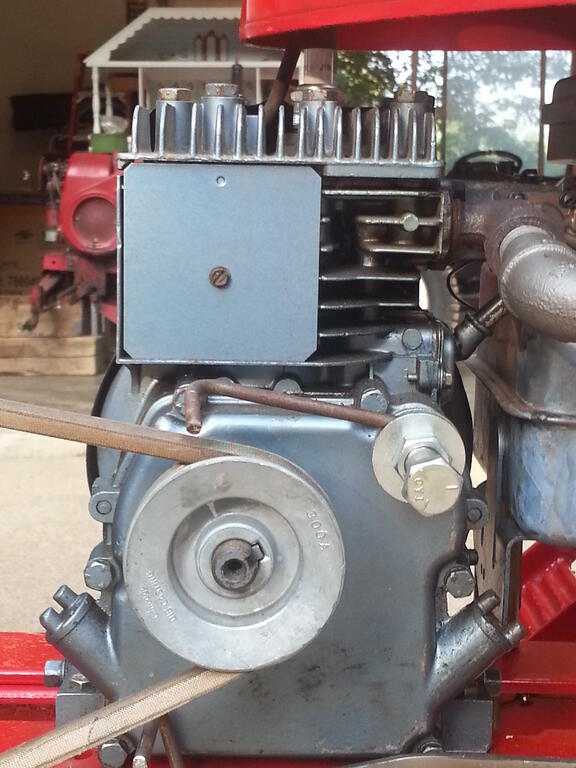

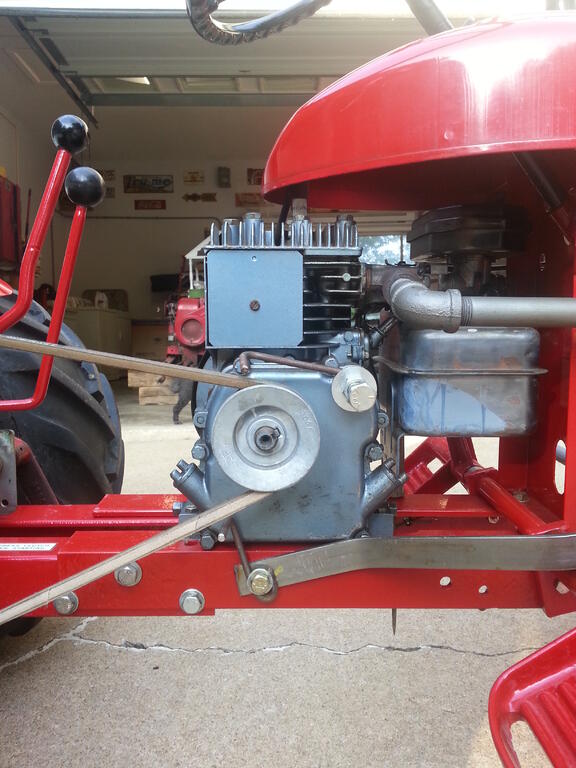

stevasaurus 23,452 #2 Posted October 12 The belt set-up is desinged to slip at the point where you have it tight. Try putting a 90 degree bend in that metal piece to not make it tight against the belt, but to funnel any slack toward the drive pulley. I know this is not your engine, but the bottom of belt guard should help funnel the slack toward the drive pulley I also notice surface rust on your drive pulley. All 3 of your pulleys need to shiny clean and wiped with mineral spirits so the belt can slide around the drive pulley, thus letting the input pulley on the trans to stop so you can shift gears without grinding. Clean the pulleys and bend that stay you have there. You want that stay to keep the belt on the pulley, but not so much that it can't slip on the drive pulley when you put slack in the belt. Think of funneling it in a direction. Your pulleys do not look clean and shiney...the belt needs to slide around that drive pulley when slack is put there. One other small point...a system that works like I am talking about will keep your horse from bucking like a bronco when you let out the clutch. An unexpected wheelie can put a small Wheel Horse on top of you. Always start out in low throtle and keep the front wheels on the ground. 2 2 Share this post Link to post Share on other sites

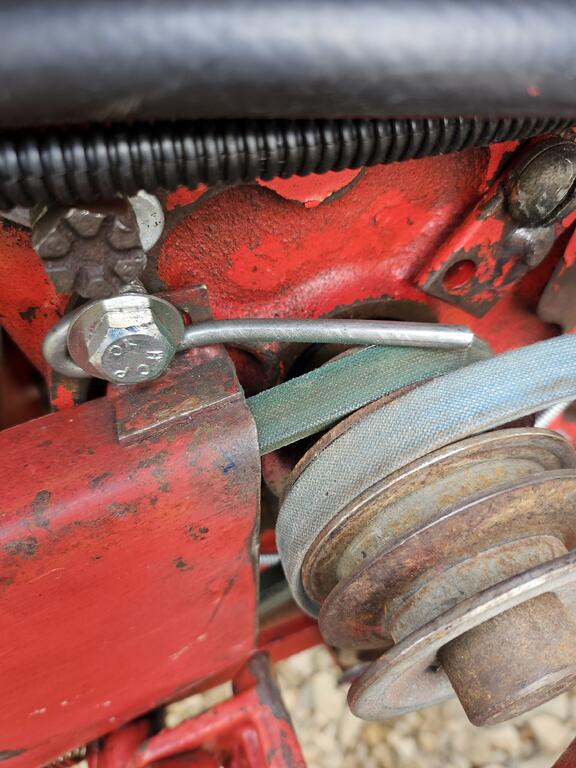

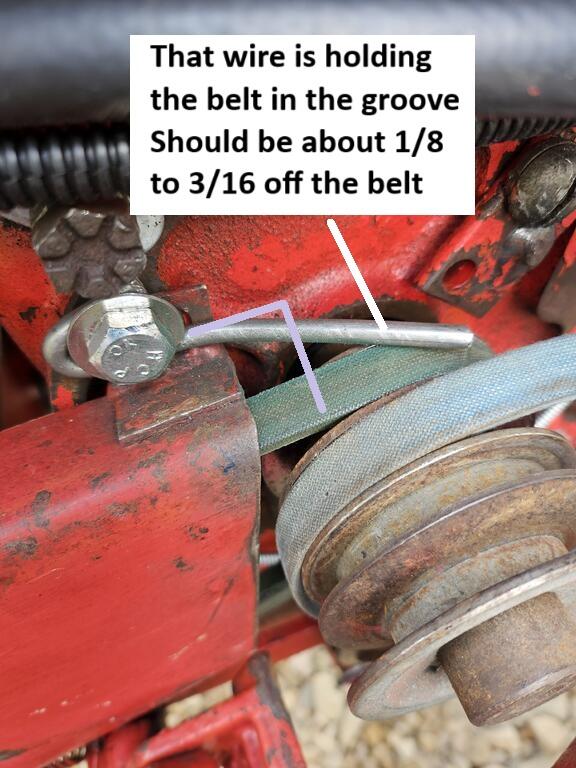

wallfish 18,625 #3 Posted October 14 Better if the wire is bent and supporting the belt on the back half of the pulley. The way it is now it's holding the belt tight into the groove so it can't rise out of it to allow it to slip. 2 1 1 Share this post Link to post Share on other sites
WHX?? 52,892 #4 Posted October 14 Is that my 702 ML ... maybe I just come take it off your hands... Seriously I had the same problem with a 753 and now with a 856 that I haven't messed with yet. Only way I could cure it was with a tab on the clutch idler that pushes the belt forward. I must've had the guard off on and tweaked the front bottom tab a hundred times. Don't remember if I made one or took one off a parts tractor. A suburban but same thing you get the idea. All of my tractors with it factory it is welded on 90 degree to the clutch arm. 1 Share this post Link to post Share on other sites
squonk 44,579 #5 Posted October 14 Is this a shifting issue or only when left running in neutral? I had the brake adjusted too tight on my 857 and it wouldn't allow the idler pulley to move enough to slack the belt. If It wouldn't let me shift even when stopped unless I went from gear to gear fast 2 Share this post Link to post Share on other sites
ML3 1,924 #6 Posted October 14 Hopefully tonight I'll get a chance to look at it again. Start by cleaning up pulley more & adjust the belt tab more at a right angle. Its approximately 1/8" off belt/pulley. May consider idler pulley belt tab if I have to. The clutch/brake pedal originally was way far forward & had to be pushed almost as low as stirrup & it still grinds. Was like that when I 1st drove it onto trailer. Share this post Link to post Share on other sites

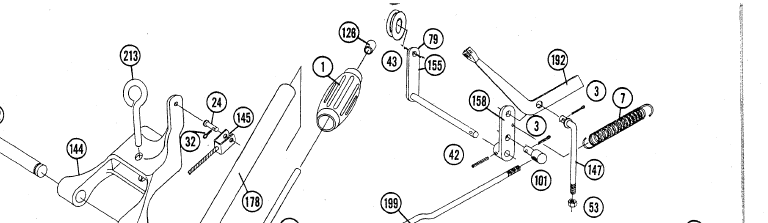

WHX?? 52,892 #7 Posted October 14 11 minutes ago, ML3 said: idler pulley belt tab The IPL doesn't really show it but??? Share this post Link to post Share on other sites
peter lena 9,451 #8 Posted October 14 @ML3 done a lot of functional detailing to REPEDITIVE PROBLEM AREAS . nothing sarcastic , but , thats what you actually want , for tracking / related continuous issue . have a helper at home ? someone to let YOU the same issue ? often refer to a roller stool , for a direct look / see . personally , that tiny bearing idler pulley , is an area , that I have always enhanced , and also any and all linkage movement areas . have also firmed up connection ends / lube , makes for a solid / smooth transfer of intention . don,t have any of the earlier models , so its just an idea , hope you find it , pete Share this post Link to post Share on other sites
ML3 1,924 #9 Posted October 14 Looks like I got it figured out. I re-cleaned/sanded all the pulleys even though they weren't bad. Somehow managed to get the right adjustment of linkages etc. Seems like a very small margin where it all works. Got snowblower working good too! Now I need to do some fine tuning of the throttle at governor. Thanks everyone for your input! 20251014_174743.mp4 3 1 Share this post Link to post Share on other sites
