Balancing Gears - in or out

Recommended Posts

Mickwhitt

Ok, a few hours later I now have one lump rather than many parts.



Time to step back and review the books to see if I have done things properly.



Not sure how to attach photos as yet so I will spend some time mastering that so I can share my progress.



Regards Mick





Share this post


Link to post
Share on other sites

Mickwhitt

Ok, a few hours later I now have one lump rather than many parts.



Time to step back and review the books to see if I have done things properly.



Not sure how to attach photos as yet so I will spend some time mastering that so I can share my progress.



Regards Mick






Share this post


Link to post
Share on other sites

Mickwhitt

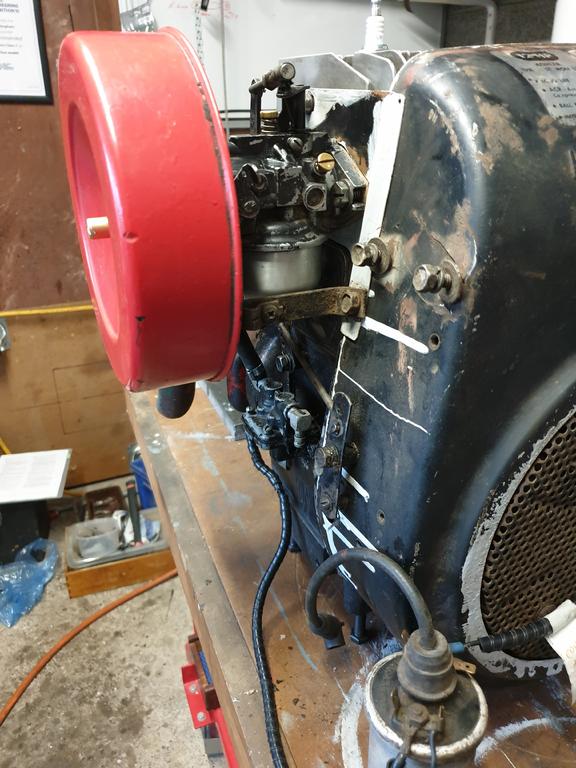

I know it probably looks more like a before photo than after but I will do cosmetic work when its actually running lol





Share this post


Link to post
Share on other sites


Wheelhorse#1

I removed the balance gears from a K301 when I did a rebuild on it.It vibrates some but not to the point to were its bothersome.Higher rpms it smooths right out.



Share this post


Link to post
Share on other sites

Rick3478
On 7/15/2016 at 8:06 PM, Short Circuit said:

There are two axis of vibration in the engine (this is a simple version). The major axis is the vertical axis of the piston/rod assembly in the cylinder moving up and down as the crank rotates. This vibration is opposed or "countered" by the counter weights on the crank.



In the gear head world, this is usually called primary vibration.



On 7/15/2016 at 8:06 PM, Short Circuit said:

The other "axis" of vibration is the lower end of the rod on the crank as it rotates around, and this vibration is "countered" by the balance gears, but only in a horizontal axis at 90 degrees to the crankshaft, in other words front to back on a Wheel Horse. On a JD, Cub, or other application where the crankshaft is pointing front to back, the balance gear axis is horizontally left to right (90 degrees to the crank).



This is usually called secondary vibration.



Thanks for good explanation @Short Circuit.  I've been reading some of the old threads and just wanted to add a bit.

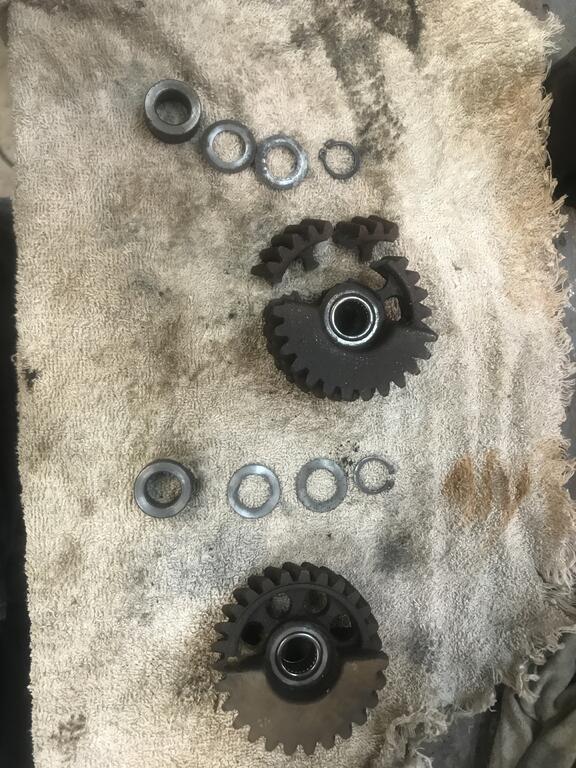

Because they are not load bearing parts, it was deemed sufficient to manufacture the balance gears with a cheaper (and weaker) sintering process, rather than cast or forged.  So, good enough for stock speeds, but if you spin 'em up bad things can happen, earning the grenade reputation.



For what it's worth, Kohler isn't the only company to have done this, and not only on single cylinder engines.  Father had a Dodge Aries with a four cylinder engine that included a pair of balance shafts geared to the crank.  I won't go into the other shortcomings the car may have had, but the engine was smooth.

Share this post


Link to post
Share on other sites

Pullstart

I made a video on balance gear removal.  I figured I’d add it here to this discussion, just to show the details of what is to be done.  With the K241 having a shorter stroke, I do believe the second gear can be removed without disturbing the pin.  The K301, K321 and K341 will require crank removal or drive the pin out (in).



I’ll also point out that the YouTube thumbnail generator was on point with the SNAP! picture.  It’s funny, it indirectly had nothing to do with the gears blowing out a block wall :lol:.







  • Like 1
  • Excellent 1

Share this post


Link to post
Share on other sites

WHX??
Posted (edited)

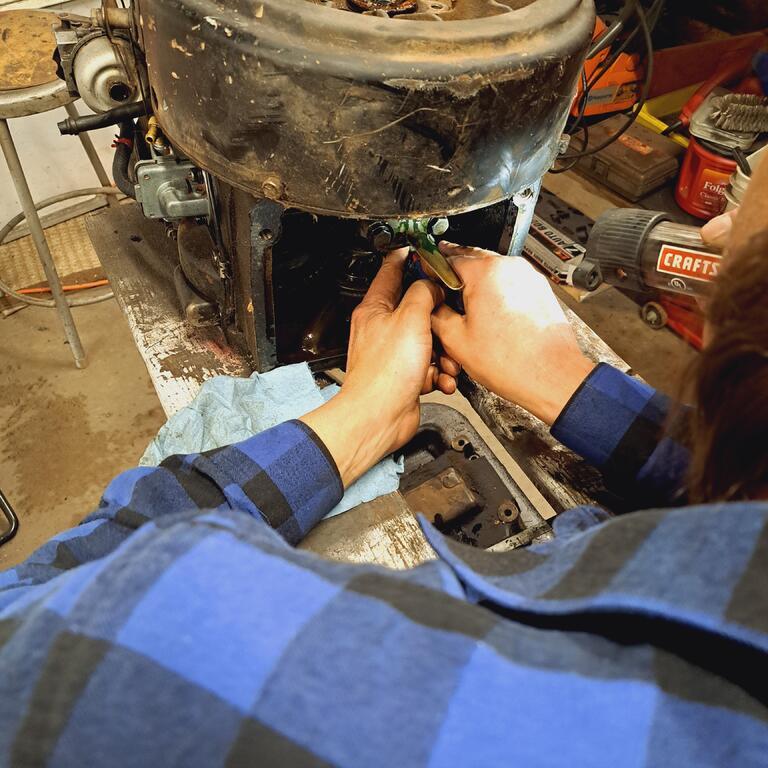

I watched @Achto take them out on a 321 without driving pins.

I was just holding the flash lite when he was playing with his crank and it just kinda fell out...:huh:



Edited by WHX??
  • Haha 3

Share this post


Link to post
Share on other sites

Achto
Posted (edited)
1 hour ago, WHX?? said:

I was just holding the flash lite when he was playing with his crank and it just kinda fell out

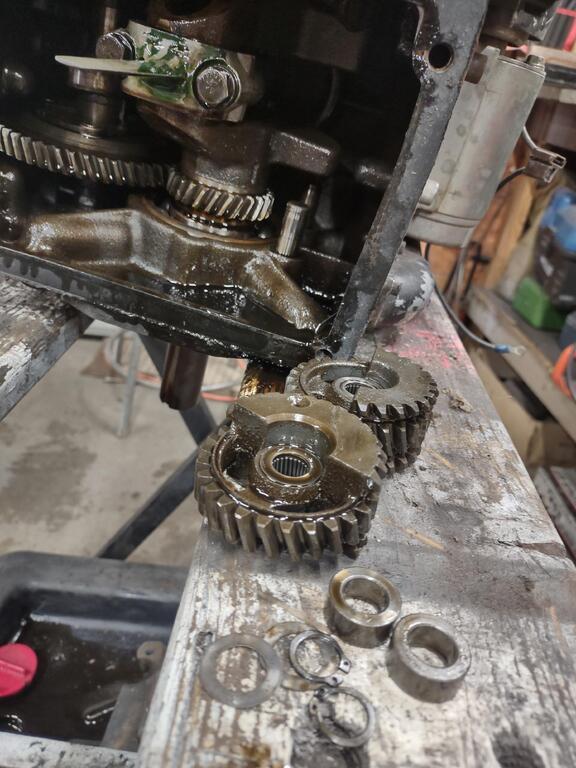

You just have to find the sweet spot, then the second gear will come right off. Did not have to drive any pins out.

Edited by Achto
  • Like 1
  • Excellent 1

Share this post


Link to post
Share on other sites

Pullstart

Lucky….

Share this post


Link to post
Share on other sites

953 nut
On 5/9/2024 at 8:38 AM, WHX?? said:

just holding the flash lite when he was playing with his crank and it just kinda fell out...

Jim, you do have a way with words!             :unsure:

  • Like 1
  • Haha 3

Share this post


Link to post
Share on other sites

squonk
On 5/9/2024 at 8:38 AM, WHX?? said:

I watched @Achto

 playing with his crank and it just kinda fell out...:huh:





Ugly Laugh GIFs - Find & Share on GIPHY

  • Like 1
  • Haha 2

Share this post


Link to post
Share on other sites

oliver2-44


The 2nd one come out easy with a quick rap on a sharp chisel. way easier that driving the pin out IMHO.

Once the gears out you can easly removethe remaining snap ring.

  • Like 2

Share this post


Link to post
