Jimmy Hoops 2 #1 Posted June 1, 2024 I'm trying to locate a list of belts with part numbers for my mower. I found a manual online but it only list one of three belts on this unit. Share this post Link to post Share on other sites
WHX?? 51,712 #2 Posted June 1, 2024 Did you check with places like Parts Tree and such? Maybe a Toro dealer? Mid 90's Toro branded Z turn fellas. Share this post Link to post Share on other sites
Jimmy Hoops 2 #3 Posted June 1, 2024 (edited) 9 minutes ago, WHX?? said: Did you check with places like Parts Tree and such? Maybe a Toro dealer? Mid 90's Toro branded Z turn fellas. Edited June 1, 2024 by Jimmy Hoops Posted reply in the wrong place Share this post Link to post Share on other sites
Jimmy Hoops 2 #4 Posted June 1, 2024 The manual I found has a breakdown of the entire mower but it only lists one belt "V belt" but mine has three separate belts on it Share this post Link to post Share on other sites
gwest_ca-(File Mod) 11,451 #5 Posted June 1, 2024 See 1 belt on a transmission page See 1 belt on a pto page See 2 belts on a mower page What is the model number and serial number on the tractor? 14 possibilities What is the width of cut of the mower and side or rear discharge? 3 possibilities Share this post Link to post Share on other sites

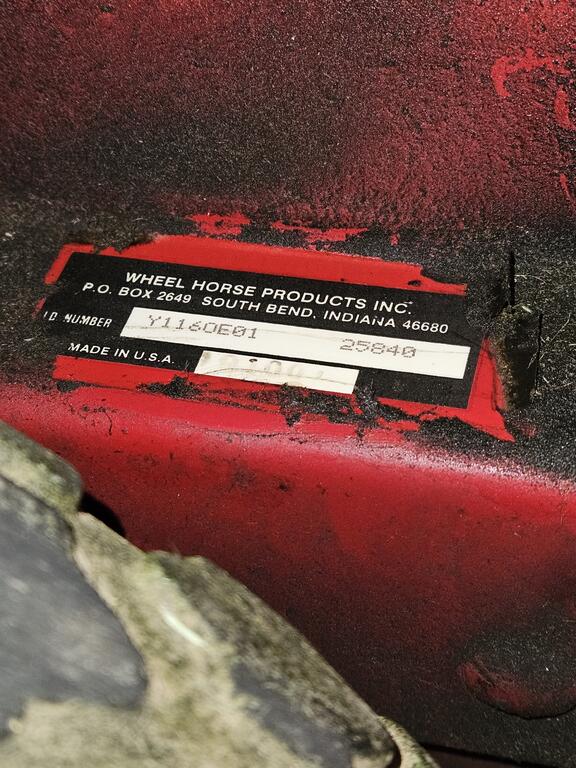

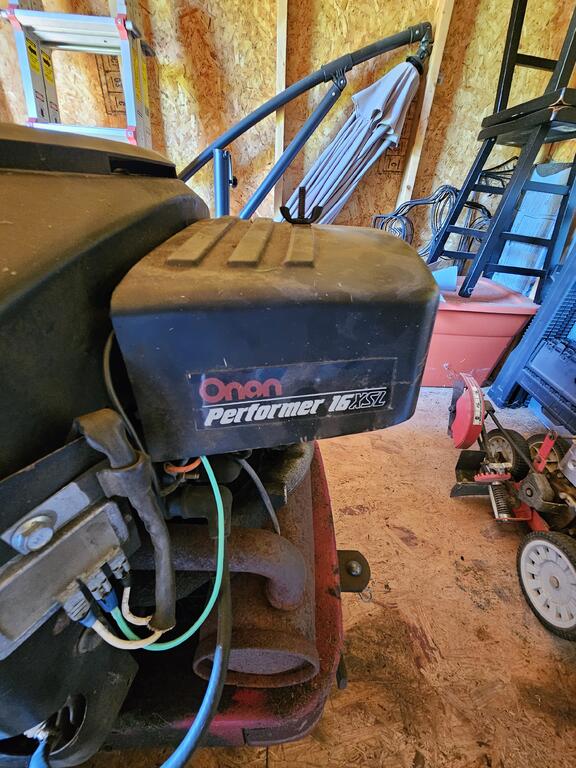

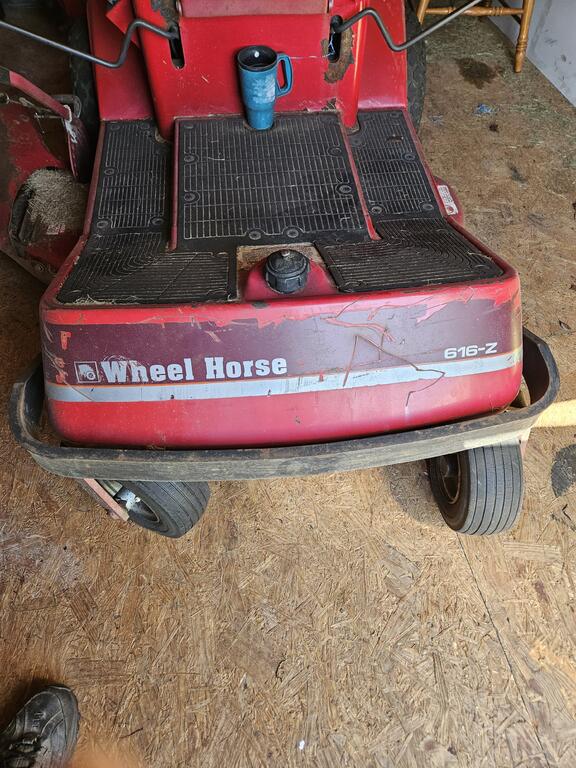

Jimmy Hoops 2 #6 Posted June 1, 2024 Hopefully this helps. I'm not sure about the width of the mower but it's a side discharge. 1 Share this post Link to post Share on other sites
gwest_ca-(File Mod) 11,451 #7 Posted June 1, 2024 Section 3 and 14 has 1 belt each https://www.partstree.com/models/y1-16oe01-616-z-toro-zero-turn-mower-drive-unit-only-1989 Your mower is likely on this page. It will be a 38" or 42" side discharge. Will be an SY model and looks like the 38" has only 2 blades. Can not find the 1989 models but 1990 is likely the same. https://www.partstree.com/models/05-38sy01-toro-38-side-discharge-mower-deck-1990 1 Share this post Link to post Share on other sites
gwest_ca-(File Mod) 11,451 #8 Posted June 1, 2024 Transmission drive belt 116527 - (HA x 43.25" or 1/2" x 43.25") Drive belt 116160 (Aftermarket replacements are 5/8" x 72") - Not in the belt chart Spindle belt 116507 (Dimensions unknown) - Not in the belt chart 19 search results in our files for Y1-16OE01 https://www.wheelhorseforum.com/search/?q=Y1-16OE01&quick=1&type=downloads_file 1 Share this post Link to post Share on other sites
Jimmy Hoops 2 #9 Posted June 1, 2024 Thank you. I'll have to do some more research. Share this post Link to post Share on other sites
