Mower Rotary 36in RD 1979 95-36MR00 & 95-36MR01 IPL SN.pdf

Sign in to follow this

admin

4 Screenshots

About This File

IPL #810121R1 (Not for the 95-36MR00 - no ipl available)
7 pages 1.34MB



Fits B-Series and C-Series tractors


Drive belt 102607 (1/2" x 89.12") when used on medium frame 43-1/2" wheelbase tractors
1972 Commando 800 model 1-0110
1973 8hp 4-Speed model 1-0120
1974 B-80 4-Speed models 1-0140 and 1-0145
1974 B-100 Auto model 1-0510
1975 B-80 4-Speed model 1-0141
1975 B-100 Auto model 1-0511


Drive belt 102741 (1/2" x 96.6") for B-Series & C-Series tractors with 45-1/2" wheelbase (Gates replacement BladeRunner 6638BR 17/32" x 96.75")



Spindle belt 8411 (1/2" x 76.94")

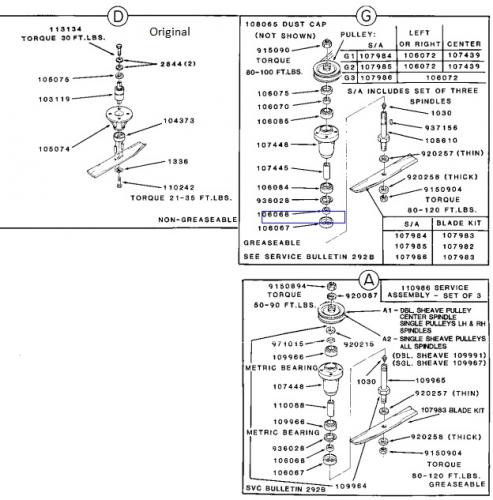

Mower spindle assemblies for 95-36MR00 could be D, A1, G2 or Z

For A1 and G2 see service bulletin 292B



9187 center blade and 9188 left and right blades replaced by 8969 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D) Last 36" RD deck to use these blades

8969 blade set available again from Toro June 4, 2019



Mower Rotary 1979 36in RD model 95-36MR00 - IPL not available
1979 serial numbers that have shown up the the 95-36MR00
009449

------------------------------------------------------------------------------------------------------------------------------------------------------------------------

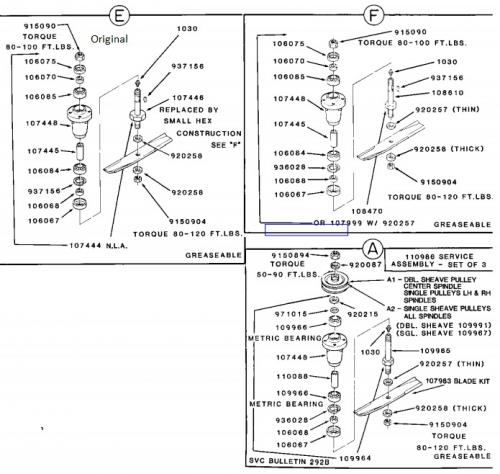

Mower spindle assemblies for 95-36MR01 could be E, A1, F or Z

For A1 see service bulletin 292B



107982 3-blade set replaces 107435 left and right blades (12-1/8") and 107436 center blade (14-1/8") (Hole 3/4" round) First 36" RD deck to use these blades



Mower Rotary 1979 36in RD model 95-36MR01
1979 serial numbers that have shown up the the 95-36MR01
041217 - Build date 1979 9200 July 19 Thursday




×
×
