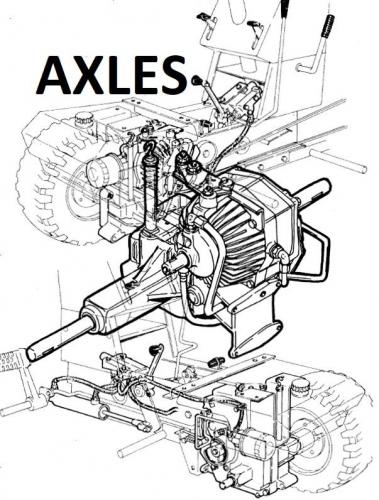

Transmission Hydro Axle

Transmission Hydro Axles



First edition - March 8, 2020 - 17 pages 332KB

Revision 1 - March 17, 2020 - 17 pages 324KB

Will be revised when mistakes are corrected and new info appears



ipl = original illustrated parts list

Tipl = illustrated parts list from Toro Master Parts Viewer



Axles used in Sundstrand and Eaton hydro transmission transaxles



11-1/8" x 1" diameter 5961 (1965-1967, 1972-1975) replaced by 101880 left and right 1" diameter axle

11-1/8" x 1" diameter 101880 left and right axle - No longer available



?????? x 1-1/8" diameter 121384 replaces 6450 (11-3/4"), 6451 (11-1/8"), 7202 (12"), 7203 (11-1/4"), 101510 (?) and 101511 (?) - No longer available

?????? x 1-1/8" diameter 101510 replaced by 121384 - Unknown application

?????? x 1-1/8" diameter 101511 replaced by 121384 - Unknown application

10-1/8" x 1-1/8" diameter 108361 left axle (1980-1997) - No longer available

11-1/8" x 1-1/8" diameter 6451 left axle (1966-1968) replaced by 121384 - Also used in gear transmissions 1967

11-1/4" x 1-1/8" diameter 7203 right axle (1968-1973replaced by 121384 - Also used in gear transmissions 1967-1973

11-5/8" x 1-1/8" diameter 79-3340 left and right axles (1998-2005) (5xi) - Still available March 13, 2020 - $282.98

11-5/8" x 1-1/8" diameter 99-5359 kit left and right axles - Still available March 13, 2020 - $246.71 - Also used in gear transmissions 1973-1976

11-5/8" x 1-1/8" diameter 102764 left and right axles (1973-1976) replaced by 99-5359 kit - Also used in gear transmissions 1973-1976

11-3/4" x 1-1/8" diameter 6450 right axle (1966-1968) replaced by 121384 - Also used in gear transmissions 1967

12" x 1-1/8" diameter 7202 right axle (1967-1973) replaced by 121384 - Also used in gear transmissions

12-7/8" x 1-1/8" diameter 109754 left axle (1982-1984) - No longer available

13-1/8" x 1-1/8" diameter 105875 left and right axle (1976-1980) - Still available March 13, 2020 - $237.66 - Also used in gear transmissions 1976-2007

13-1/8" x 1-1/8" diameter 108362 right axle (1980-1997) - No longer available

14-1/8" x 1-1/8" diameter 8055 left axle (1969-1973) replaced by 8054 - No longer available

14-3/4" x 1-1/8" diameter 8054 right axle (1969-1973) - No longer available

15-7/8" x 1-1/8" diameter 109753 right axle (1982-1984) - No longer available

16-1/2" x 1-1/8" diameter 101893 left and right axle (1973-1981) - No longer available



Hydro Applications

1965 model 875 - 3100077 - 5052 - [This is an assumption 2 x 5961 11-5/8" replaced by 101880 axles] - (Axle seal 5958 1" ID) - 4 pinions - 1" diameter axle

1965 model 1075 - 3100077 - 5052 - [This is an assumption 2 x 5961 11-5/8" replaced by 101880 axles] - (Axle seal 5958 1" ID) - 4 pinions - 1" diameter axle



1966 model 876 - 3100077 - 5052 - 2 x 5961 11-5/8" replaced by 101880 axles - (Axle seal 5958 1" ID) - 4 pinions - IPL # 269 - 1" diameter axle

1966 model 1076 - 3100077 - 5054 - Left axle 6451 11-1/8", Right axle 6450 11-3/4" - (Axle seal 6449 1-1/8" ID) - 2 bevel pinions - IPL # 271-272

1966 model 1276 - 3100077 - 5054 - Left axle 6451 11-1/8", Right axle 6450 11-3/4" - (Axle seal 6449 1-1/8" ID) - 2 bevel pinions - IPL # 271-272



1967 model 877 - 3100077 - 5052 - 2 x 5961 11-5/8" replaced by 101880 axles - (Axle seal 5958 1" ID) - 4 pinions- IPL # 877 - 1" diameter axle

1967 model 1077 - 3100077 - 5054 - Left axle 6451 11-1/8", Right axle 6450 11-3/4" - (Axle seal 6449 1-1/8" ID) - 2 bevel pinions - IPL # 324-325

1967 model 1277 - 3100077 - 5054 - Left axle 6451 11-1/8", Right axle 6450 11-3/4" - (Axle seal 6449 1-1/8" ID) - 2 bevel pinions - IPL # 324-325



1968 Charger 9 model 1-7931 - 90-2046 - 5054 - Left axle 6451 11-1/8", Right axle 6450 11-3/4" - (Axle seal 6449 1-1/8" ID) - 2 bevel pinions - IPL # 396

1968 Charger 9 model 1-7932 - 90-2046 - 5062 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip

1968 Charger 12 model 1-7231 - 90-2046 - 5062 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip - IPL # 361

1968 Electro 12 model 1-7235 - 90-2046 - 5062 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip



1969 Charger 10 model 1-7041 - 90-2046 - 5062 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip - IPL # 1-7041-P

1969 Charger 12 model 1-7241 - 90-2046 - 5062 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip - IPL # 1-7241-P

1969 Electro 12 model 1-7245 - 90-2046 - 5062 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip - IPL # 419

1969 GT-14 model 1-7441 - 90-2062 - 5070 - Left axle 8055 14-1/8" replaced by right axle 8054 14-3/4" - (Axle seal 6449 1-1/8" ID) - 10 pinions



1970 Charger 12 model 1-7251 - 90-2046 - 5062 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip

1970 Charger 12 model 1-7252 - 90-2046 - 5062 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip

1970 Charger 12 model 1-7253 - 90-2046 - 5062 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip

1970 Electro 12 model 1-7255 - 90-2046 - 5062 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip

1970 GT-14 model 1-7451 - 90-2062 - 5070 - Left axle 8055 14-1/8" replaced by right axle 8054 14-3/4" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip - IPL # A-5260

1970 GT-14 model 1-7452 - 90-2062 - 5070 - Left axle 8055 14-1/8" replaced by right axle 8054 14-3/4" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip - IPL # A-5255

1970 GT-14 model 1-7453 - 90-2062 - 5070 - Left axle 8055 14-1/8" replaced by right axle 8054 14-3/4" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip - IPL # A-5255



1971 800 Automatic model 1-0450 - (1-0450-6) - Eaton 6

1971 Bronco 14 model 1-0420 - (1-0420-6) - 90-2046 - 5062 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip - Ipl # A-5279

1971 Bronco 14 model 1-0421 - (1-0421-6) - 90-2046 - 5062 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip - Ipl # A-5279

1971 Charger 12 model 1-0400 - (1-0400-6) - 90-2046 - 5062 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip - Ipl # A-5279

1971 GT-14 model 1-0500 - (1-0500-6) - 90-2062 - 5070 - Left axle 8055 14-1/8" replaced by right axle 8054 14-3/4" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip - Ipl # A-5279

1971 GT-14 model 1-0501 - (1-0501-6) - 90-2062 - 5070 - Left axle 8055 14-1/8" replaced by right axle 8054 14-3/4" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip - Ipl # A-5279



1972 800 Automatic model 1-0451 - (1-0451-7) - Eaton 6

1972 Bronco 14 model 1-0422 - (1-0422-7) - 90-2046 - 5062 - axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip - Ipl # A-5315

1972 Bronco 14 model 1-0423 - (1-0423-7) - 90-2046 - 5062 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip - Ipl # A-5315

1972 Charger 10 model 1-0410 - (1-0470-8) - 90-2046 - 5087 - 2 x 5961 11-5/8" replaced by 101880 axles - (Axle seal 100607 1" ID) - 4 pinions - 7880 HG - Ipl # A-5315 - 1" diameter axle

1972 Charger 12 model 1-0401 - (1-0401-7) - 90-2046 - 5062 - axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip - Ipl # A-5315

1972 Charger 12 model 1-0402 - (1-0402-7) - 90-2046 - 5062 - axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip - Ipl # A-5315

1972 GT-14 model 1-0502 - (1-0502-7) - 90-2062 - 5070 - Left axle 8055 14-1/8" replaced by right axle 8054 14-3/4" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip

1972 GT-14 model 1-0503 - (1-0503-7) - 90-2062 - 5070 - Left axle 8055 14-1/8" replaced by right axle 8054 14-3/4" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip



1973 10hp Automatic model 1-0470 - (1-0470-8) - 90-2046 - 5087 - 2 x 5961 11-5/8" replaced by 101880 axles - (Axle seal 100607 1" ID) - 4 pinions - 7880 HG - Ipl # A-5345 - 1" diameter axle

1973 10hp Automatic model 1-0475 - (1-0475-8) - 90-1136 - 5090 - 2 x 5961 11-5/8" replaced by 101880 axles - (Axle seal 100607 1" ID) - 4 pinions - Piston-piston HG - Ipl # A-5345 - 1" diameter axle

1973 12hp Automatic model 1-0460 - (1-0460-8) - 90-2046 - 5062 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip - 7880 HG - Ipl # A-5345

1973 12hp Automatic model 1-0465 - (1-0465-8) - 90-1136 - 5089 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip - Piston-piston HG - Ipl # A-5345

1973 14hp Automatic model 1-0430 - (1-0430-8) - 90-2046 - 5062 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip - 7880 HG - Ipl # A-5345

1973 14hp Automatic model 1-0435 - (1-0435-8) - 90-1136 - 5089 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip - Piston-piston HG - Ipl # A-5345

1973 16hp Automatic model 1-0440 - (1-0440-8) - 90-2046 - 5088 - 2 x 102764 11-5/8" axles replaced by 99-5359 kit - (Axle seal 6449 1-1/8" ID) - 8 pinions - Piston-piston HG - Ipl # A-5345

1973 18hp Automatic model 1-0600 - (1-0600-8) - 90-1137 -    - 2 x 101893 16-1/2" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions

1973 18hp Automatic model 1-0601 - (1-0601-8) - 90-1137 -    - 2 x 101893 16-1/2" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions

1973 18hp Automatic model 1-0610 - (1-0610-8) - 90-1137 -    - 2 x 101893 16-1/2" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions

1973 18hp Automatic model 1-0620 - (1-0620-8) - 90-1137 -    - 2 x 101893 16-1/2" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions

1973 GT-14 Automatic model 1-0502 -(1-0502-8) - 90-2062 - 5070 - Left axle 8055 14-1/8" replaced by right axle 8054 14-3/4" - (Axle seal 6449 1-1/8" ID) - 10 pinion limited slip



1974 B-100 Automatic model 1-0510 - (1-0510-9) - 90-1136 - 5090 - 2 x 5961 11-5/8" replaced by 101880 axles - (Axle seal 100607 1" ID) - 4 pinions - Piston-piston HG - Ipl # 803951 - 1" diameter axle

1974 C-120 Automatic model 1-0485 - (1-0485-9) - 90-1136 - 5088 - 2 x 102764 11-5/8" axles replaced by 99-5359 kit - (Axle seal 6449 1-1/8" ID) - 8 pinions - Piston-piston HG - Ipl # 803951

1974 C-120 Automatic model 1-0490 - (1-0490-9) - 90-1136 - 103903 - 2 x 102764 11-5/8" axles replaced by 99-5359 kit - (Axle seal 6449 1-1/8" ID) - 8 pinions - Piston-piston HG - Ipl # 803951

1974 C-120 Automatic model 1-0495 - (1-0495-9) - 90-1136 - 103903 - 2 x 102764 11-5/8" axles replaced by 99-5359 kit - (Axle seal 6449 1-1/8" ID) - 8 pinions - Piston-piston HG - Ipl # 803951

1974 C-160 Automatic model 1-0480 - (1-0480-9) - 90-1140 - 5088 - 2 x 102764 11-5/8" axles replaced by 99-5359 kit - (Axle seal 6449 1-1/8" ID) - 8 pinions - Piston-piston HG - Ipl # 803951

1974 D-160 Automatic model 1-0650 - (1-0650-9) - 90-1137 -    - 2 x 101893 16-1/2" axles - (Axle seal 6449 1-1/8" ID)

1974 D-180 Automatic model 1-0611 - (1-0611-9) - 90-1137 -    - 2 x 101893 16-1/2" axles - (Axle seal 6449 1-1/8" ID)

1974 D-200 Automatic model 1-0630 - (1-0630-9) - 90-1137 -    - 2 x 101893 16-1/2" axles - (Axle seal 6449 1-1/8" ID)



1975 B-100 Automatic model 1-0511 - 90-1136 - 5090 - 2 x 5961 11-5/8" replaced by 101880 axles - (Axle seal 100607 1" ID) - 8 pinions - Ipl # 803430 - 1" diameter axle (Not 4 pinions?)

1975 C-120 Automatic model 1-0491 - 90-1136 - 103903 - 2 x 102764 11-5/8" axles replaced by 99-5359 kit - (Axle seal 6449 1-1/8" ID) - 8 pinions - Ipl # 803984

1975 C-160 Automatic model 1-0481 - 90-1140 - 5088 - 2 x 102764 11-5/8" axles replaced by 99-5359 kit - (Axle seal 6449 1-1/8" ID) - 8 pinions - Ipl # 803984

1975 D-160 Automatic model 1-0651 - 90-1137 - 5093 - 2 x 101893 16-1/2" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - Ipl # 803985

1975 D-180 Automatic model 1-0612 - 90-1137 - 5093 - 2 x 101893 16-1/2" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - Ipl # 803985

1975 D-200 Automatic model 1-0631 - 90-1137 - 5093 - 2 x 101893 16-1/2" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - Ipl # 803985



1976 C-120 Automatic model 61-12KS01 - 90-1136 -    - 2 x 102764 11-5/8" axles replaced by 99-5359 kit - (Axle seal 6449 1-1/8" ID)

1976 C-120 Automatic model 61-12KS02 - 90-1136 -    - 2 x 102764 11-5/8" axles replaced by 99-5359 kit - (Axle seal 6449 1-1/8" ID)

1976 C-120 Automatic model 61-12KS03 - 90-1136 -    - 2 x 105875 13-1/8" axles - (Axle seal 6449 1-1/8" ID)

1976 C-120 Automatic model 61-12KS04 - 90-1136 -    - 2 x 102764 11-5/8" axles replaced by 99-5359 kit - (Axle seal 6449 1-1/8" ID)

1976 C-160 Automatic model 61-16KS01 - 90-1140 -    - 2 x 102764 11-5/8" axles replaced by 99-5359 kit - (Axle seal 6449 1-1/8" ID)

1976 C-160 Automatic model 61-16KS02 - 90-1140 -    - 2 x 102764 11-5/8" axles replaced by 99-5359 kit - (Axle seal 6449 1-1/8" ID)

1976 C-160 Automatic model 61-16KS03 - 90-1140 -    - 2 x 105875 13-1/8" axles - (Axle seal 6449 1-1/8" ID)

1976 C-160 Automatic model 61-16KS04 - 90-1140 -    - 2 x 102764 11-5/8" axles replaced by 99-5359 kit - (Axle seal 6449 1-1/8" ID

1976 D-160 Automatic model 61-16OS01 - 90-1137 -    - 2 x 101893 16-1/2" axles - (Axle seal 6449 1-1/8" ID)

1976 D-160 Automatic model 61-16OS02 - 90-1137 -    - (TIPL not available) Assuming -  2 x 101893 16-1/2" axles - (Axle seal 6449 1-1/8" ID)

1976 D-200 Automatic model 61-20KS01 - 90-1137 -    - 2 x 101893 16-1/2" axles - (Axle seal 6449 1-1/8" ID)

1976 D-200 Automatic model 61-20KS02 - 90-1137 -    - (TIPL not available) Assuming -  2 x 101893 16-1/2" axles - (Axle seal 6449 1-1/8" ID)



1977 C-120 Automatic model 71-12KS01 - 90-1136 -    - 2 x 105875 13-1/8" axles - (Axle seal 6449 1-1/8" ID)

1977 C-120 Automatic model 71-12KS02 - 90-1136 -    - Assuming 2 x 105875 13-1/8" axles - (Axle seal 6449 1-1/8" ID)  [iPL n/a]

1977 C-160 Automatic model 71-16KS01 - 90-1140 -    - 2 x 105875 13-1/8" axles - (Axle seal 6449 1-1/8" ID)

1977 C-160 Automatic model 71-16KS02 - 90-1140 -    - 2 x 105875 13-1/8" axles - (Axle seal 6449 1-1/8" ID)

1977 D-160 Automatic model 71-16OS01 - 90-1137 -    - 2 x 101893 16-1/2" axles - (Axle seal 6449 1-1/8" ID)

1977 D-200 Automatic model 71-20KS01 - 90-1137 -    - 2 x 101893 16-1/2" axles - (Axle seal 6449 1-1/8" ID)



1978 C-121 Automatic model 81-12KS01 - 90-1172 -    - 2 x 105875 13-1/8" axles - (Axle seal 6449 1-1/8" ID)

1978 C-141 Automatic model 81-14KS01 - 90-1173 -    - 2 x 105875 13-1/8" axles - (Axle seal 6449 1-1/8" ID)

1978 C-161 Automatic model 81-16KS01 - 90-1173 -    - 2 x 105875 13-1/8" axles - (Axle seal 6449 1-1/8" ID)

1978 C-161 Twin Automatic model 81-16BS01 - 90-1173 -    - 2 x 105875 13-1/8" axles - (Axle seal 6449 1-1/8" ID)

1978 D-160 Automatic model 81-16OS01 - 90-1173 -    - 2 x 101893 16-1/2" axles - (Axle seal 6449 1-1/8" ID) - [90-1173 possibly should be 90-1137 - Typo at Toro?]

1978 D-200 Automatic model 81-20KS01 - 90-1173 -    - 2 x 101893 16-1/2" axles - (Axle seal 6449 1-1/8" ID) - [90-1173 possibly should be 90-1137 - Typo at Toro?]



1979 C-111 Automatic model 91-11BS01  - Was not built - ipl #810118R1

1979 C-121 Automatic model 91-12KS01 - 90-1172 -    - 2 x 105875 13-1/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl #810118R1

1979 C-121 Automatic model 91-12KS91 - Assuming  - 90-1172 -    - 2 x 105875 13-1/8" axles - (Axle seal 6449 1-1/8" ID) (Made in Belgium)

1979 C-141 Automatic model 91-14KS01 - 90-1173 -    - 2 x 105875 13-1/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl #810118R1

1979 C-161 Automatic model 91-16KS01 - 90-1173 -    - 2 x 105875 13-1/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl #810118R1

1979 C-161 Automatic model 91-16KS91 - Assuming - 90-1173 -    - 2 x 105875 13-1/8" axles - (Axle seal 6449 1-1/8" ID) (Made in Belgium)

1979 C-161 Twin Automatic model 91-16BS01 - 90-1173 -    - 2 x 105875 13-1/8" axles - (Axle seal 6449 1-1/8" ID)

1979 C-161 Twin Automatic model 91-16BS02 - 90-1173 -    - 2 x 105875 13-1/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl #810118R1

1979 D-160 Automatic model 91-16OS01 - 90-1173 -    - 2 x 101893 16-1/2" axles - (Axle seal 6449 1-1/8" ID) - [90-1173 possibly should be 90-1137 - Typo at Toro?]

1979 D-160 Automatic model 91-16OS02 - Not listed @ Toro and may be an invalid model number

1979 D-200 Automatic model 91-20KS01 - 90-1173 -    - 2 x 101893 16-1/2" axles - (Axle seal 6449 1-1/8" ID) - [90-1173 possibly should be 90-1137 - Typo at Toro?]

1979 D-200 Automatic model 91-20KS02 - 90-1173 -    - 2 x 101893 16-1/2" axles - (Axle seal 6449 1-1/8" ID) - [90-1173 possibly should be 90-1137 - Typo at Toro?]



1980 C-125 Auto model 01-12KE01 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID)

1980 C-125 Auto model 01-12KS01 - 90-1173 -    - 2 x 105875 13-1/8" axles - (Axle seal 6449 1-1/8" ID)

1980 C-145 Auto model 01-14KE01 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID)

1980 C-145 Auto model 01-14KS01 - 90-1173 -    - 2 x 105875 13-1/8" axles - (Axle seal 6449 1-1/8" ID)

1980 C-165 Auto model 01-16KE01 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID)

1980 C-165 Auto model 01-16KS01 - 90-1173 -    - 2 x 105875 13-1/8" axles - (Axle seal 6449 1-1/8" ID)

1980 C-165 Auto model 01-16KS91 - Assuming - 90-1173 -    - 2 x 105875 13-1/8" axles - (Axle seal 6449 1-1/8" ID) (Made in Belgium)

1980 C-175 Twin Auto model 01-17KE01 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID)

1980 C-175 Twin Auto model 01-17KS02 - 90-1173 -    - 2 x 105875 13-1/8" axles - (Axle seal 6449 1-1/8" ID)

1980 D-160 Auto model 01-16OS01 - 90-1173 -    - 2 x 101893 16-1/2" axles - (Axle seal 6449 1-1/8" ID) - [90-1173 possibly should be 90-1137 - Typo at Toro?]

1980 D-200 Auto model 01-20KS00 - 90-1173 -    - 2 x 101893 16-1/2" axles - (Axle seal 6449 1-1/8" ID) - [90-1173 possibly should be 90-1137 - Typo at Toro?]



1981 C-125 Auto model 01-12KE02 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID)

1981 C-145 Auto model 01-14KE02 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID)

1981 C-165 Auto model 01-16KE02 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID)

1981 C-175 Twin Auto model 01-17KE01 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID)

1981 D-160 Auto model 01-16OS01 - Assuming - 90-1173 -    - 2 x 101893 16-1/2" axles - (Axle seal 6449 1-1/8" ID) - [90-1173 possibly should be 90-1137 - Typo at Toro?] Not listed @ Toro

1981 D-200 Auto model 01-20KS00 - 90-1173 -    - 2 x 101893 16-1/2" axles - (Axle seal 6449 1-1/8" ID) - [90-1173 possibly should be 90-1137 - Typo at Toro?]



1982 B-115 Auto model 02-11BE01 - 700-004 -    - Uses 1320 Peerless transaxle

1982 B-165 Twin Auto model 02-16BE01 - 700-004 -    - Uses 1320 Peerless transaxle

1982 C-145 Auto model 01-14KE03 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID)

1982 C-175 Twin Auto model 01-17KE02 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID)

1982 C-195 Twin Auto model 01-19KE01 - 1100-032 -    - 109754 12-7/8" left axle, 109753 15-7/8" right axle - (Axle seal 6449 1-1/8" ID)

1982 D-160 Auto model 01-16OS01 - Assuming - 90-1173 -    - 2 x 101893 16-1/2" axles - (Axle seal 6449 1-1/8" ID) - [90-1173 possibly should be 90-1137 - Typo at Toro?] Not listed @ Toro

1982 GT-1848 Twin Auto model A1-184801 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - ipl # 810286R1



1983 B-115 Auto model 12-11BE01 - 700-004 -    - Uses 1320 Peerless transaxle

1983 B-165 Twin Auto model 12-16BE01 - 700-004 -    - Uses 1320 Peerless transaxle

1983 C-145 Auto model 01-14KE04 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID)

1983 C-175 Twin Auto model 01-17KE03 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID)

1983 C-195 Twin Auto model 01-19KE01 - Assuming - 1100-032 -    - 109754 12-7/8" left axle, 109753 15-7/8" right axle - (Axle seal 6449 1-1/8" ID) Not listed @ Toro for 1983, 1982 only

1983 GT-1848 Twin Auto model D1-184801 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID)



1984 B-165 Twin Auto model 12-16BE02 - 700-004 -    - Uses 1320 Peerless transaxle

1984 C-145 Auto model 11-14KE01 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - Some use alternate differential carrier bearings See PSB #369

1984 C-175 Twin Auto model 11-17KE01 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - Some use alternate differential carrier bearings See PSB #369

1984 C-195 Twin Auto model 01-19KE02 - 1100-032 -    - 109754 12-7/8" left axle, 109753 15-7/8" right axle - (Axle seal 6449 1-1/8" ID)

1984 GT-1800 Twin Auto model A1-18BE01 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - Some use alternate differential carrier bearings See PSB #369 - Ipl # 810351R1



1985 211-A model 22-11BE01 - 700-004 -    - Uses 1320 Peerless transaxle

1985 314-A model 21-14KE01 - 700-015 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - Tipl ????

1985 417-A model 31-17KE01 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - Tipl



1986 YT12-A model 22-12TE01 - 200-Series Automatic - 700-004 -    - Uses 1320 Peerless transaxle

1986 312-A model 21-12KE01 - 700-015 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 4 pinions - ipl # 810405R1

1986 312-A model 21-12KE02 - 700-015 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 4 pinions - ipl # 810405R1

1986 417-A model 31-17KE02 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 810405R1

1986 420-LSE Auto model 31-20KE01 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 810405R1



1987 312-A model 21-12KE03 - 700-015 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 4 pinions - Tipl

1987 418-A model 31-18KE01 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 4 pinions - Tipl ????

1987 418-C model 41-18KE01 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 4 pinions - Tipl ????



1988 252-H model 22-13KE01 - 700-003 -    - Uses 1320 Peerless transaxle

1988 257-H model 22-17KE01 - 700-003 -    - Uses 1320 Peerless transaxle

1988 516-H model 31-16OE01 - 700-015 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 4 pinions - ipl # 810623

1988 518-H model 31-18OE01 - 700-015 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 810623 ?????

1988 518-He model E1-18OE01 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3328-949 - Export model

1988 520-H model 31-20OE01 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 810623

1988 520-HC model C1-20OE01 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 810623



1989 212-H model 32-12BE01 - 750-012 -    - Eaton transaxle

1989 212-H model A2-12KE01 - 750-019 -    - Eaton transaxle

1989 212-He model E2-12KE01 - 750-012 -    - Eaton transaxle

1989 212-He model R2-12KE01 - 750-012 -    - Eaton transaxle (This may be a 1990 model)

1989 252-H model 22-13KE02 - 700-003 -    - Uses 1320 Peerless transaxle

1989 257-H model 22-17KE02 - 700-003 -    - Uses 1320 Peerless transaxle

1989 518-H model 31-18OE02 - 700-015 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 810623 ????

1989 518-He model E1-18OE02 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl #899518 - Exported

1989 520-H model 31-20OE02 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 810623 ????

1989 520-HC model C1-20OE02 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 810623 ????



Note - ipl # 810623 listed for 1988 and 1989 500-Series

300-Series use 4 pinions and 400-Series use 8 pinions. There are no 300 or 400-Series in 1988 or 1989 the manual is listed for.



1990 210-H model 32-10BE01 - 750-019 - IPL shows 750-012 Eaton transaxle

1990 212-H model 32-12OE01 - 750-012 -    - Eaton transaxle

1990 212-H model 32-12BEA1 - ???????

1990 212-He model R2-12BE01 {Model not recognized @ Toro}

1990 212-HSBe model S2-12BE01 {Model not recognized @ Toro}

1990 216-H model 32-16BE01 - 750-012/019 Eaton transaxle

1990 312-H model 31-12KE01 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - Tipl

1990 416-H model 41-16OE01 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions

1990 518-He model R1-18OE01 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl #899518 - Exported

1990 518-He model R1-18OE02 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - Exported

1990 520-H model 41-20OE01 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - Tipl



1991 210-H model 32-10BE02 Serial 1000001-1999999 - 750-032 -    - Eaton transaxle

1991 212-H model 32-12BEA2 Serial 1000001-1999999

1991 212-H model 32-12BEA3 Serial 1000001-1999999

1991 212-H model 32-12OE02 Serial 1000001-1999999

1991 212-H model 32-12OEA1 Serial 1000001-1999999

1991 212-H model A2-12KE02 Serial 1000001-1999999

1991 212-He model R2-12OE01 Serial 1000001-1999999

1991 244-H model 22-14OE01 Serial 1000001-1999999

1991 246-He model R2-16BE01 Serial 1000001-1999999 (Toro has this listed as a 1992 model) - Exported

1991 312-H model 51-12KE01 Serial 1000001-1999999 - 1100-032 -    - ipl # 3314-853 - No hydro in manual

1991 416-H model 51-16OE01 Serial 1000001-1999999 - 1100-032 -    - ipl # 3314-853 - No hydro in manual

1991 520-H model 41-20OE02 Serial 1000001-1999999 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - Illustration in ipl is 8-Speed

1991 520-He model R1-20OE01 Serial 1000001-1999999 - 1100-032? -    - No info available other than operator manual - Export model



1992 312-H model 51-12KE02 Serial 2000001-2999999 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3315-196

1992 416-H model 51-16OE02 Serial 2000001-2999999 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3315-196

1992 520-H model 41-20OE03 Serial 2000001-2999999 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3315-194

1992 520-He model R1-20OE02 Serial 2000001-2999999 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3315-246 - Exported



1993 314-H model 73401 Serial 3900001-3999999 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3315-390

1993 416-H model 73421 Serial 3900001-3999999 - 1100-032 - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3316-142

1993 520-H model 73501 Serial 39000001-39999999 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3316-145

1993 520-He model 73520 Serial 39000001-39999999 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3316-146 - Exportedl



1994 314-H model 73401 Serial 4900001-4999999 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3316-944

1994 416-H model 73421 Serial 4900001-4999999 - 1100-032 - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3316-930

1994 520-H model 73501 Serial 49000001-49999999 - 1100-032 - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3317-112

1994 520-He model 73520 Serial 4900001-4999999 - 1100-032 - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3316-867 - Exported



1995 314-H model 73401 A Serial 5900001-5900260 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3316-944

1995 314-H model 73401 B Serial 5900261-5901260 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3317-887

1995 314-H model 73401 C Serial 5901261-5999999 - 1100-032 -    - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3317-887



1995 416-H model 73421 A Serial 5900001-5901046 - 1100-??? - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3316-930

1995 416-H model 73421 B Serial 5901047-5999999 - 1100-062 - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3317-888



1995 520-H model 73501 A Serial 59000001-59000411 - 1100-032 - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3317-112

1995 520-H model 73501 B Serial 59000412-59002868 - 1100-032 - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3317-377

1995 520-H model 73501 C Serial 59002869-59999999 - 1100-032 - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3317-890



1995 520-He model 73520 A Serial 5900001-5900177 - 1100-032 - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3317-376 - Exported

1995 520-He model 73520 B Serial 5900178-5999999 - 1100-062 - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3317-891 - Exportedl



1996 314-H model 73401 Serial 6900001-6999999 - 1100-032 - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3317-887

1996 314-H model 73403 Serial 6900001-6999999 - 1100-062 - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3324-848 - (Gold trim)

1996 416-H model 73421 Serial 6900001-6999999 - 1100-062 - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3317-888

1996 416-H model 73423 Serial 6900001-6999999 - 1100-062 - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3318-523 - (Gold trim)

1996 520-H model 73501 Serial 69000001-69999999 - 1100-032 - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3317-890   Add ipl to 1996 manuals

1996 520-H model 73502 Serial 6900001-6999999 - 1100-062 - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3318-524 - (Gold trim)

1996 520-He model 73521 Serial 6900001-6999999 - 1100-062 - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3318-525



1997 314-H model 73403 Serial 7900001-7999999 - 1100-062 - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3319-160

1997 416-H model 73423 Serial 7900001-7999999 - 1100-062 - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3319-163

1997 520-H model 73502 Serial 7900001-7999999 - 1100-062 - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3319-164 - Last year for the 520

1997 520-He model 73521 Serial 7900001-7999999 - 1100-062 - 108361 10-1/8" left axle, 108362 13-1/8" right axle - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3318-525 - Last year for the 520 - Exported



1998 518xi model 73470 Serial 8900001-8999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3319-724

1998 520Lxi model 73545 Serial 8900001-8999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3319-726

1998 520Lxie model 73546 Serial 8900001-8999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3319-726 - Exported

1998 520xi model 73540 Serial 8900001-8999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3319-724

1998 520xie model 73541 Serial 8900001-8999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3319-724 - Exported

1998 522xi model 73560 Serial 8900001-8999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3319-725

1998 523Dxi model 73550 Serial 8900001-8999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3323-250

1998 523Dxie model 73551 Serial 8900001-8999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3323-250 - Exported



1999 518xi model 73471 Serial 9900001-9999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3325-559

1999 520Lxi model 73547 Serial 9900001-9999999 - 1100-063 - 2 x 79-3340 axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3321-965 (11.62)

1999 520Lxie model 73580 Serial 9900001-9999999 - 1100-063 - 2 x 79-3340 axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3321-965 (11.62) - Exported

1999 520xi model 73542 Serial 9900001-9999999 - 1100-063 - 2 x 79-3340 axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3325-559

1999 520xie model 73570 Serial 9900001-9999999 - 1100-063 - 2 x 79-3340 axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3325-559 - Exported

1999 522xi model 73561 Serial 9900001-9999999 - 1100-063 - 2 x 79-3340 axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3321-964 (11.62)

1999 523Dxi model 73552 Serial 9900001-9999999 - 1100-063 - 2 x 79-3340 axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3321-968 (11.62)

1999 523Dxie model 73590 Serial 9900001-999999 - 1100-063 - 2 x 79-3340 axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3321-968 (11.62) - Exported



2000 518xi model 73471 A Serial 000000001-000999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3321-940 (11.62)

2000 518xi model 73471 B Serial 200000001-200999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3324-379 (11.62)

2000 520Lxi model 73547 A Serial 200000001-200000241 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3321-965 (11.62)

2000 520Lxi model 73547 B Serial 200000242-200999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3324-381 (11.62)

2000 520Lxie model 73580 Serial 200000001-200999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3324-381 (11.62) - Exported

2000 520xi model 73542 A Serial 000000001-000999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3321-940 (11.62)

2000 520xi model 73542 B Serial 200000001-200999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3324-379 (11.62)

2000 520xie model 73570 A Serial 200000001-200999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3321-940 (11.62) - Exported

2000 520xie model 73570 B Serial 200000001-200999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3324-379 (11.62) - Exported

2000 522xi model 73561 A Serial 000000001-000999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3321-964 (11.62)

2000 522xi model 73561 B Serial 200000001-200000200 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3321-964 (11.62)

2000 522xi model 73561 C Serial 200000201-200999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3324-380 (11.62)

2000 522xi Indy Special Edition model 73561SEI D Serial 200000001-200999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3324-847

2000 523Dxi model 73552 Serial 200000001-200999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3324-382 (11.62)

2000 523Dxie model 73590 Serial 200000001-200999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3324-382 (11.62) - Exported



2001 518xi model 73471 Serial 210000001-210999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3325-559

2001 520Lxi model 73547 Serial 210000001-210999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3325-560

2001 520Lxie model 73580 Serial 210000001-210999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3325-560 - Exported

2001 520xi model 73542 Serial 210000001-210999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3325-559

2001 520xie model 73570 Serial 210000001-210999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3325-559 - Not listed at Toro - Exported

2001 522xi model 73561 Serial 210000001-210999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3325-562

2001 523Dxi model 73552 Serial 210000001-210999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3325-561 - Not listed at Toro

2001 523Dxie model 73590 Serial 210000001-210999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3325-561 - Exported



2002 520xi model 73542 Serial 220000001-220999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3325-559

2002 520xie model 73570 Serial 220000001-220999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3325-559 - Exported

2002 522xi model 73561 Serial 220000001-220999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3325-562

2002 523Dxie model 73590 Serial 220000001-220999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3325-561 - Exported



2003 520xi model 73542 Serial 230000001-230999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3328-745

2003 520xie model 73570 Serial 230000001-230999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3328-747 - Exported

2003 522xi model 73561 Serial 230000001-230999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3328-746

2003 523Dxie model 73590 Serial 230000001-230999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3328-748 - Exported



2004 520xi model 73542 Serial 240000001-240999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3328-745

2004 522xi model 73561 Serial 240000001-240999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3328-746

2004 523Dxie model 73590 Serial 240000001-240999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3328-748 - Exported



2005 550 5xi-Series model 73561 Serial 250000001-250999999 - 1100-063 - 2 x 79-3340 11-5/8" axles - (Axle seal 6449 1-1/8" ID) - 8 pinions - ipl # 3353-260 - Formerly 522xi

2005 560e 5xi-Series model unknown Serial 250000001-250999999 - Listed in Demystification Guide #492-9137 but no record @ Toro - Model number unknown




×
×
  • Create New...
