Cover Belt cover Blueprints Factory.pdf 1.0.0

Sign in to follow this

3 Screenshots

About This File

Going thru some of the old paperwork from my Dad's shop and came across these.



Can't imagine there are too many companies today that would provide this kind of information for an obsolete part to their customers or their distribution channel.  Just goes to show what a great company they were back in the day.



Part Numbers were 4962, 4993, and 5308

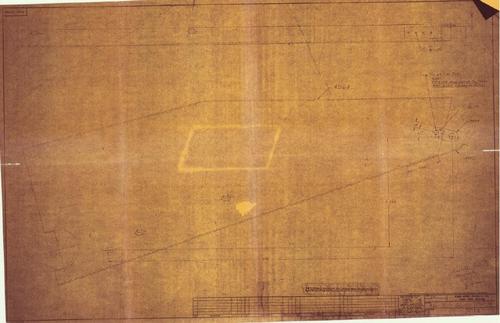

4962 fits Lauson powered tractors (Same as 5308 except has 5/16-24 tapped hole in mounting bracket)

1964 models 604, 654, 34E, 34R

1965 models L-105, L-155

1966 models L-106, L-156

1967 models L-107, L-157

1968 Lawn Ranger models 1-1631, 1-2631

1969 WorkHorse 700 models 1-3741, 1-3745, Commando 1-3741 sold in Europe but not on the Belgium list

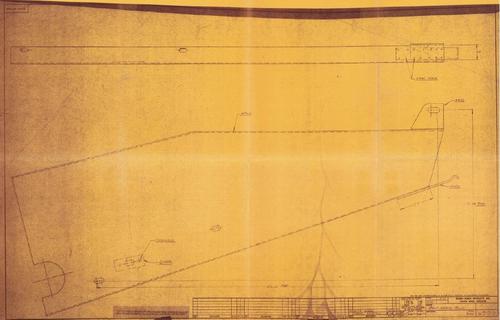

4993 fits Kohler powered tractors

1964 models 704, 754, 854

1965 model 855,

1966 models 706, 856

1967 models 857, 867

1968 model 1-4831 Commando 8



5308 fits Lauson powered tractors (Same as 4962 except omit 5/16-24 tapped hole in mounting bracket)

1965 models 605, 655,

1966 models 606, 656

1967 models 607, 657

1968 models 500 Special model 1-3631, Commando 6 model 1-4631






×
×
