Tractor 1973 8-spd 8hp 10hp 12hp 14hp 8-speed IPL Wiring Revised.pdf

Sign in to follow this

admin

2 Screenshots

About This File

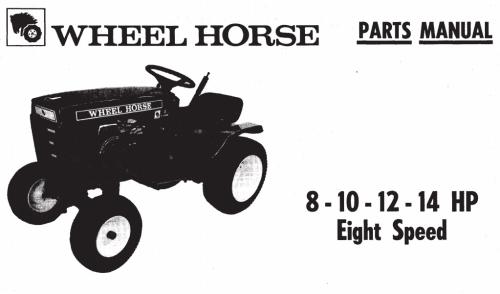

Illustrated Parts List #A-5343

Wiring

10 pages 2.19MB

Dated 11/71

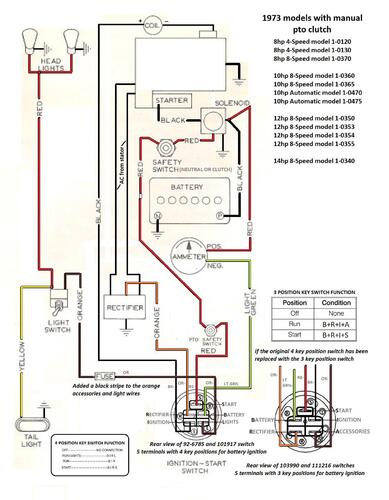

Manual pto clutch wiring Color

1 page 500KB



Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"

Ignition switch 101917 replaced by 92-6785 (5-terminal 4-position switch for battery ignition)



1973 8hp 8-speed model 1-0370



1973 10hp 8-speed model 1-0365



1973 10hp 8-speed model 1-0360

1973 Raider 10 8-speed model 1-0360 - May be a Belgium built model



1973 12hp 8-speed model 1-0350

1973 Raider 12 8-speed model 1-0350 - May be a Belgium built model



1973 12hp 8-speed model 1-0353 - May be a Belgium built model. Listed in PSB #301E - 1974 model C-120 8-Speed on the Belgium list

1973 12hp 8-speed model 1-0354 - May be a Belgium built model. Listed in PSB #301E - 1974 model C-120 8-Speed on the Belgium list

1973 12hp 8-speed model 1-0355 - May be a Belgium built model.- 1973 - Not on the Belgium list



1973 14hp 8-speed model 1-0340



1974 Raider 10 4-speed model 1-0393 listed at Toro but likely wrong manual - Do not see it on the Belgium list
