Mower Rotary 44in SD 1998 78357 & 78358 5xi OM IPL.pdf 1.0.0

Sign in to follow this

gwest_ca

5 Screenshots

About This File

Operator manual #3322-660

28 pages 785KB

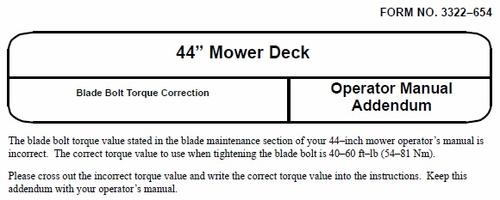

Addendum #3322-654

1 page 9KB

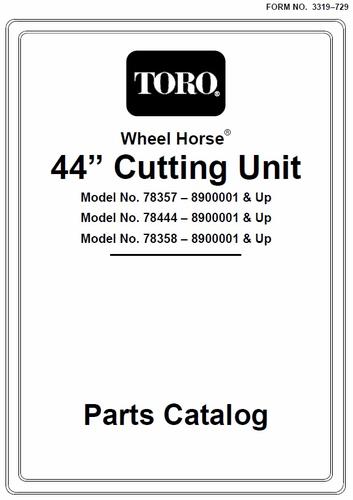

Illustrated parts list #3319-729

16 pages 713KB



Fits

518xi models 73470 and 73471 tractors

520xi models 73540 and 73542 tractors



Drive belt 95-4094 (HB x 96.72" or 5/8" x 96.72")

Spindle belt 95-4228 (HA x 82.04" or 1/2" x 82.04")



Model 78357 mower blades 3 of 54-0010

Model 78358 recycler mower blades 3 of 55-4940



1998 44" SD mower model 78357 Serial 8900001-8999999 - (86041 Recycler kit can be added to make a model 78358)

1998 serial numbers that have shown up for the 78357

8901629

8901772



1998 44" SD mower model 78358 Recycler Serial 8900001-8999999

1998 serial numbers that have shown up for the 78358

8900314



86041 44" Side Discharge Recycler kit

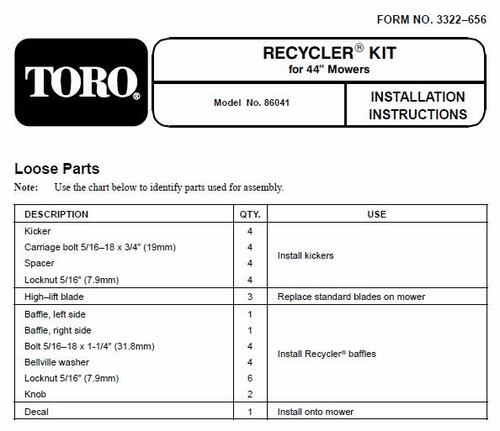

Operator manual 3322-656

4 pages 103KB

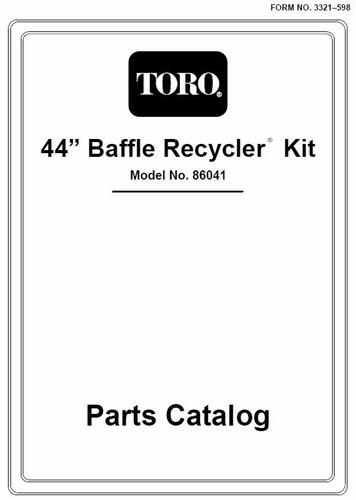

Illustrated parts list 3321-598

4 pages 114KB






×
×
