About This File
IPL from Toro Master Parts Viewer for tractor
50 pages 4.04MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Included the correct 110995 transmission IPL (Toro has the 110996 with 1" axles listed)
Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"

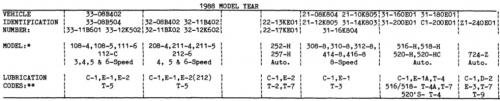

Lube chart SS
Details & Attachments
3 pages 117.84KB

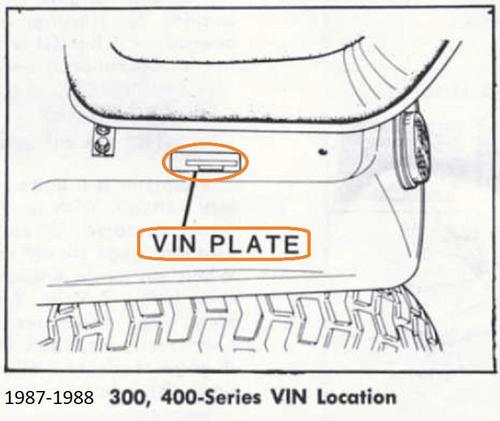

1988 416-8 model 31-16K804
1988 serial numbers that have shown up for the 31-16K804
27069 - Build date 1987 7209 July 28 Tuesday
27082
27279 - Build date 1987 7240 August 28 Friday
27381 - Build date 1987 7248 September 05 Saturday
27444
27608
27857
28328
28437 - Build date 1988 8119 April 28 Thursday
IPL from Toro Master Parts Viewer for engine
43 pages 2.40MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Kohler parts list for M16S-711523
Original OM #810473R1
Original IPL #810547R1
Links
For engine operator manual see
For engine service manual see
For transmission service manual see
