Tractor 2002 XL-Series Demystification Wiring Detailed Rev.pdf

Sign in to follow this

gwest_ca

3 Screenshots

About This File

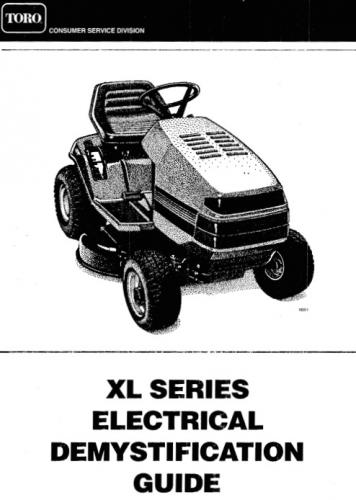

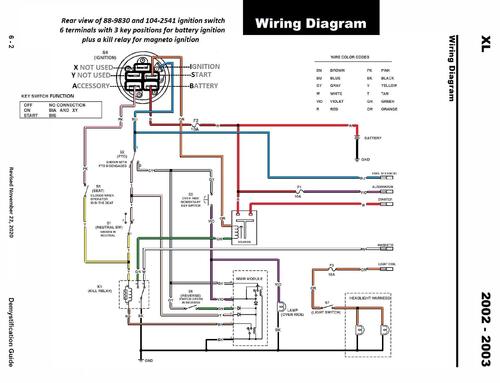

Detailed wiring from the Demystification Guide #492-4761

6 pages 1.5MB

p6-1 to p6-6



Detailed wiring from the Demystification Guide #492-3301

9 pages 295.21KB



Model years covered by this manual are a guess

2002 12-32XL model 71199 Serial 220000001-210999999

2002 13-32XL model 71209 Serial 220000001-210999999 - Export model

2002 13-32XLE model 71209 Serial 220000001-210999999 - Export model

2002 16-38HXL model 71227 Serial 220000001-210010000

2002 16-38HXL model 71227 Serial 220010001-210999999

2002 16-38HXL model 71242 Serial 220000001-210010000 - Export model

2002 16-38HXLE model 71242 Serial 220000001-210010000 - Export model

2002 16-38HXL model 71242 Serial 220010001-210999999 - Export model

2002 16-38HXLE model 71242 Serial 220010001-210999999 - Export model

2002 16-38XL model 71223 Serial 220000001-210010000

2002 16-38XL model 71223 Serial 220010001-210999999

2002 16-38XL model 71226 Serial 220010001-210999999 - Serial may be a typo - Export model

2002 16-38XLE model 71226 Serial 220010001-210999999 - Serial may be a typo - Export model

2002 17-44HXL model 71228 Serial 220000001-210010000

2002 17-44HXL model 71228 Serial 220010001-210999999

2002 17-44HXL Indy Special Edition model 71233 Serial 220000001-220999999

2002 17-44HXL model 71283 Serial 220010001-210999999 - Serial may be a typo - Export model

2002 17-44HXLE model 71283 Serial 220010001-210999999 - Serial may be a typo - Export model




×
×
