About This File
Operator manual #3316-595
Wiring
36 pages 1.8MB

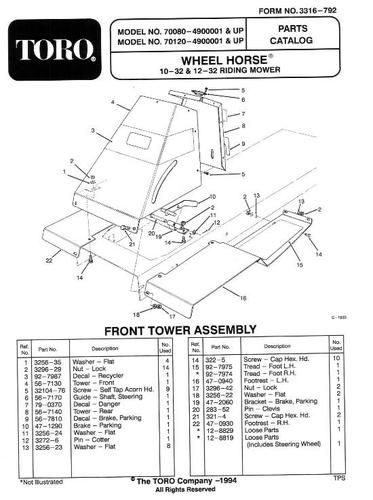

IPL #3316-792
Wiring
36 pages 7.1MB
Transmission drive belt 92-0870 - (HA x 31.0" or 1/2" x 31")
Mower drive and spindle belt 92-0875 (1/2" x 58" @ Gates) [Belt 47-1420 (1/2" x 65.56") in belt chart is wrong]

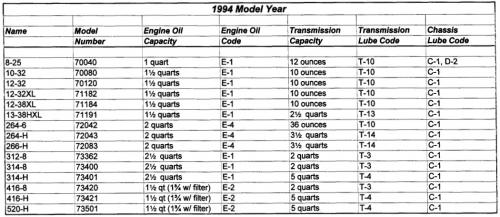

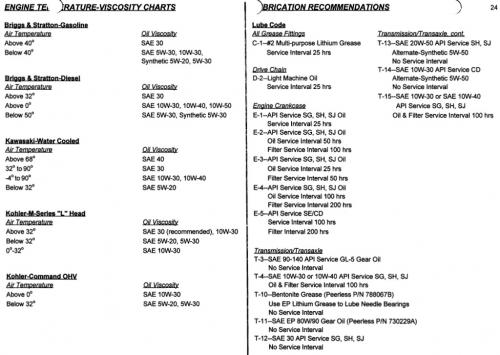

Lube chart SS
Details & Attachments
2 pages 113.16KB
1994 10-32 Rear Engine Rider Recycler model 70080 Serial 4900001-4999999
1994 serial numbers that have shown up for the 70080
4900221
----------------------------------------------------------------------------------------------------
Transmission drive belt 92-0870 - (HA x 31.0" or 1/2" x 31")
Details & Attachments
2 pages 113.5KB

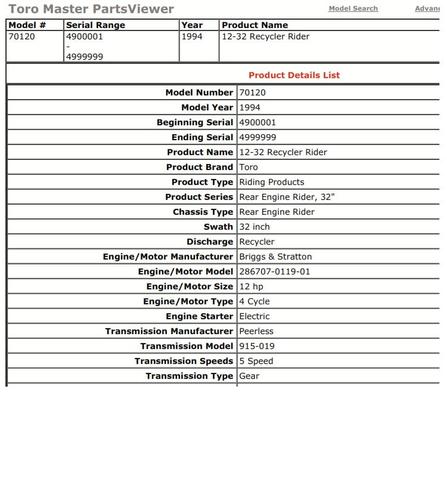

1994 12-32 Rear Engine Rider Recycler model 70120 Serial 4900001-4999999
