About This File
Operator manual #3315-355RevA or 3315-355 RevA for model 70040
Wiring
36 pages 2.5MB

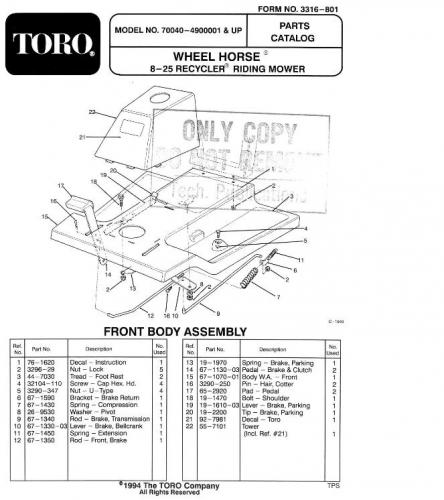

IPL #3316-801
Wiring
24 pages 5.3MB
Includes B&S 195707-0121-01 IPL
Includes Peerless 700-025 IPL
Transmission drive belt 67-0900 - (A x 40.0" or 1/2" x 40")
Mower drive and spindle belt 67-1390 replaced by 98-0710 (1/2" x 51")

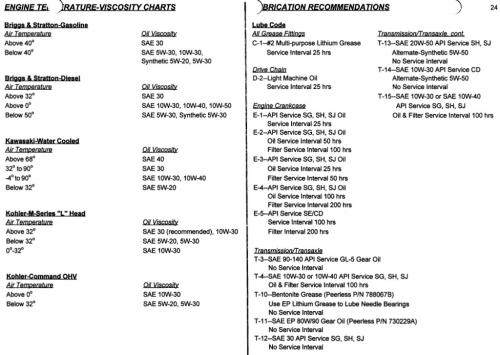

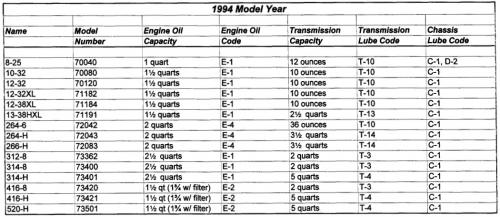

Lube chart Ss
Details & Attachments
2 pages 111.24KB
1994 8-25 Rear Engine Rider model 70040 Serial 49000001-49999999
1994 serial numbers that have shown up for the 70040
4900x338 - One digit missing so a guess
49008340
-------------------------------------------------------------------------------------------

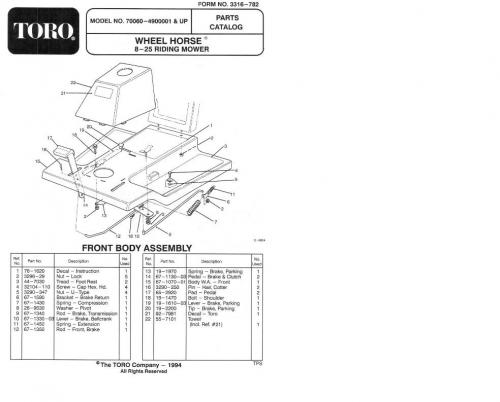

IPL #3316-782 for model 70060
24 pages 4.7MB
Includes B&S 195707-0121-01 IPL
Includes Peerless 700-025 IPL
Mower drive and spindle belt 67-1390 replaced by 98-0710 (1/2" x 51")
Details & Attachments
2 pages 110.25KB
1994 8-25 Rear Engine Rider model 70060 Serial 4900001-4999999
