Tractor 1996 416-8 Wiring Detailed Rev.pdf

Sign in to follow this

gwest_ca

2 Screenshots

About This File

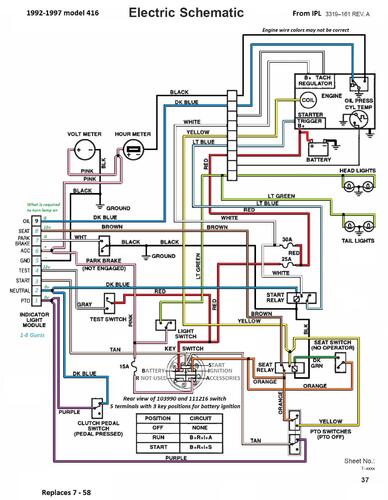

Detailed wiring from the Demystification Guide #492-4509 Color pdf

4 pages 1.5MB

Pages p7-57 to p7-60



Note - The ignition circuit in the original Guide incorrectly shows point and condenser ignition on page 7-59



1996 416-8 model 73420 Serial 6900001-6999999



1996 416-8 model 73422 Serial 6900001-6999999 - Has gold trim on hood



1996 416-8 model 73441 Serial 69000001-69999999 - Has gold trim on hood - Export model 416-8e




×
×
