Tractor 1990 12-32 RER D&A TIPL SN.pdf

Sign in to follow this

gwest_ca

4 Screenshots

About This File

IPL from Toro Master Parts Viewer
19 pages 1.54MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.


Recycler kit is 59167


Transmission drive belt 47-1410 - (HA x 47.74" or 1/2" x 47.74")

Mower drive and spindle belt 47-1420 - (HA x 65.56" or 1/2" x 65.56")

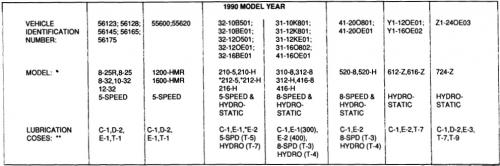

Lube chart SS


Details & Attachments
2 pages 109.09KB

1990 12-32 Rear Engine Rider model 56175 Serial 0000001-0999999

1990 serial numbers that have shown up for the 56175
0004569

On the Belgium list

Links

For operator manual and wiring see

For B&S 281707-0175-01 engine operator manual and IPL see

For Peerless 770 transmission IPL see




×
×
