Tractor 1990 8-32 RER D&A TIPL sn.pdf

Sign in to follow this

gwest_ca

4 Screenshots

About This File

IPL from Toro Master Parts Viewer
19 pages 1.54MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

Recycler kit is 59167



Transmission drive belt 47-1410 - (HA x 47.74" or 1/2" x 47.74")

Mower drive and spindle belt 47-1420 - (HA x 65.56" or 1/2" x 65.56") - Wrong in belt chart

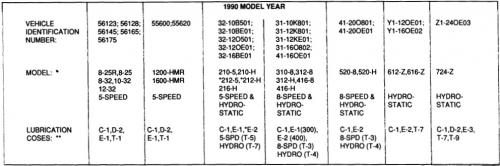

Lube chart SS


Details & Attachments
2 pages 108.86KB

1990 8-32 Rear Engine Rider model 56145 Serial 0000001-0999999

On the Belgium list

Links

For operator manual and wiring see

For B&S 191707-6021-01 engine operator manual and IPL see

For Peerless 770 transmission IPL see




×
×
