Tractor 1988 257-H D&A TIPL SN.pdf

Sign in to follow this


5 Screenshots

About This File

Illustrated parts list Wiring from Toro Master Parts Viewer
48 pages 3.53MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
This parts list has the ipl for the Kawasaki engine.

On the Belgium list

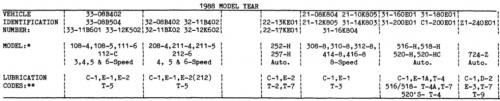

Lube chart SS

Details & Attachments
3 pages 114.11KB


Transmission drive belt 109428 - (HA x 76" or 1/2" x 76")

1988 257-H model 22-17KE01

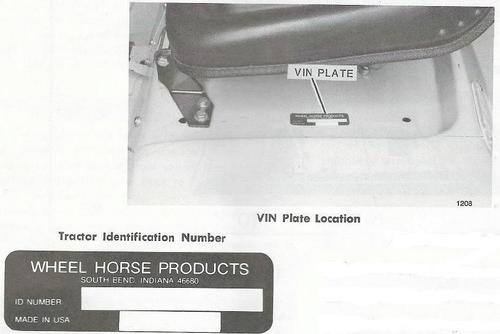

1988 serial numbers that have shown up for the 22-17KE01
