About This File
Operator manual #A-7137
IPL
3 pages 1.12MB

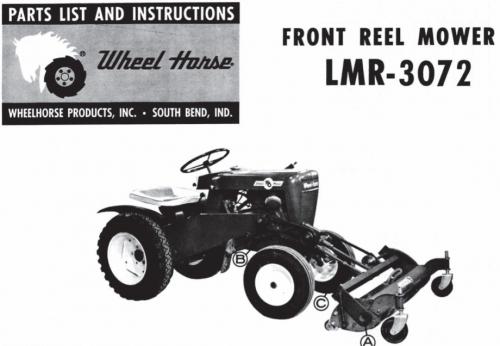

The 1962 model LMR-3072 with the 6040 kit makes up the 1963 model LMR-303
Fits 701, 502, 552, 702, 603, 653, 753 and 604
Differences between 1962 model LMR-3072 and 1963 model LMR-303
Lift bar #33 2520 changed to 4596
Differences between 1963 model LMR-303 and 1964 model LMR-304
Drive belt went from 34" to 35"
Clutch bar #39 4096 changed to #58 5250
Drive belt 1572 - 4L x 34" or 1/2" x 34"
Jack shaft belts 2539 matched pair 2539 (3Lx34 or 3/8" x 34")
Mower Reel 1963 30in Front model LMR-303

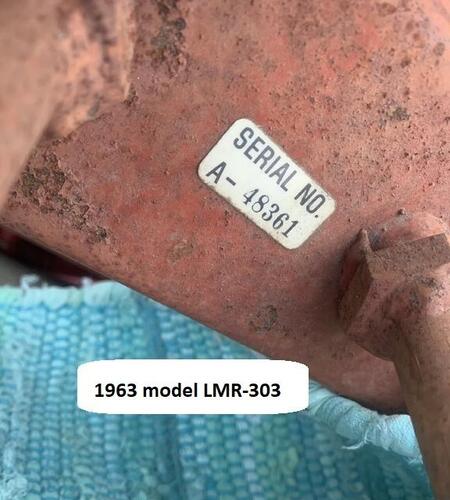

1963 serial numbers that have shown up for the LMR-303
A-48361
