About This File
Operator manual IPL #A-5252
5 pages 6MB
Formerly RM-485
Replacement deck for 953, 1054 and 1054A tractors
Drive belt 1595 (1/2" x 66.95")
Spindle belt 1594 (1/2" x 107.21")

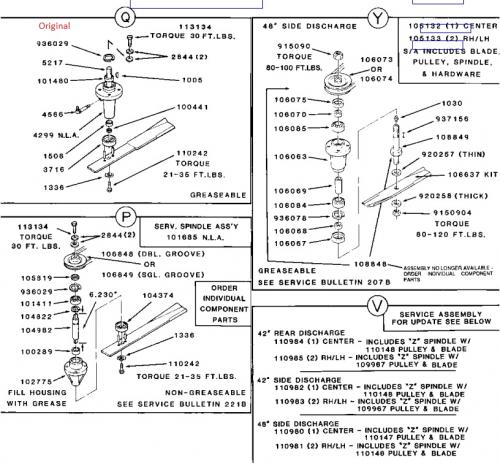

Mower spindle assemblies could be Q, P, V, Y or Z
For P see service bulletin 221B
For V and Y see service bulletin 292B
4380 blade replaced by 6758 and then by 100202 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)
Mower Rotary 1966 48in SD model 5-5481
Mower Rotary 1967 48in SD model 5-5481
Mower Rotary 1968 48in SD model 5-5481
Mower Rotary 1969 48in SD model 5-5481
