Mower Rotary 36in RD 1978 85-36MR01 TIPL SN.pdf

Sign in to follow this

gwest_ca

5 Screenshots

About This File

IPL from Toro Master Parts Viewer
6 pages 373.88KB



Fits B-Series and C-Series tractors


Drive belt 102607 (1/2" x 89.12") when used on medium frame 43-1/2" wheelbase tractors
1972 Commando 800 model 1-0110
1973 8hp 4-Speed model 1-0120
1974 B-80 4-Speed models 1-0140 and 1-0145
1974 B-100 Auto model 1-0510
1975 B-80 4-Speed model 1-0141
1975 B-100 Auto model 1-0511


Drive belt 102741 (1/2" x 96.6") for B-Series & C-Series tractors with 45-1/2" wheelbase (Gates replacement BladeRunner 6638BR 17/32" x 96.75")



Spindle belt 8411 (1/2" x 76.94")

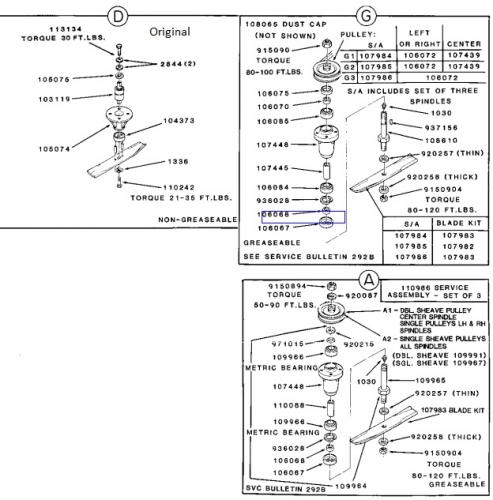

Mower spindle assemblies could be D, A1, G2 or Z

For A1 and G2 see service bulletin 292B



9187 center blade and 9188 left and right blades replaced by 8969 3-blade kit (Hole 5/8in.x3/4in. Double-D)

8969 blade set available again from Toro June 4, 2019



Mower Rotary 1978 36in RD model 85-36MR01
1978 serial numbers that have shown up for the 85-36MR01

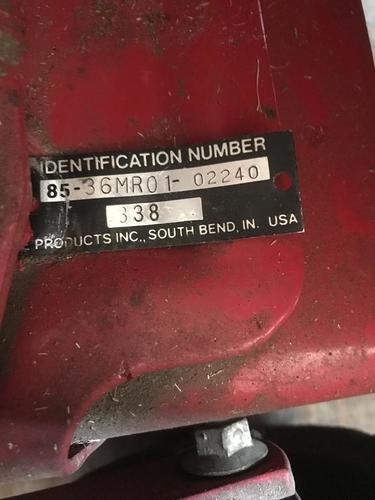

002240 - Build date 1977 7338 December 04 Sunday (Plate stamped 338) - Best guess
007087
007128 - Build date 1978 8020 January 20 Friday
008021 - Build date 1978 8037 February 06 Monday

008150 - Build date 1978 8038 February 07 Tuesday
008240 - Build date 1978 8038 February 07 Tuesday

013575 - Build date 1978 8079 March 20 Monday
017918 - Build date 1978 8111 April 21 Friday

019333 - Build date 1978 8128 May 08, Monday

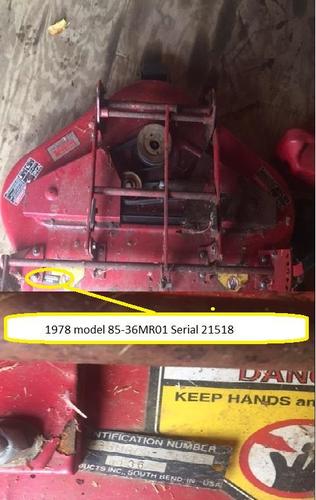

021518 - Build date 1978 8136 May 16 Tuesday
021553 - Build date 1978 8136 May 16 Tuesday

021670 - Build date 1978 8136 May 16 Tuesday




×
×
