About This File
IPL from Toro Master Parts Viewer
6 pages 318.49KB
Fits B-111 tractors
Drive belt 106523 replaced by 110141 (1/2" x 41")
Spindle belt 106516 (1/2" x 83")

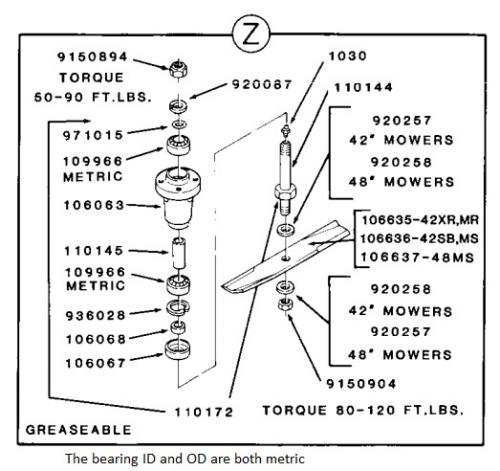

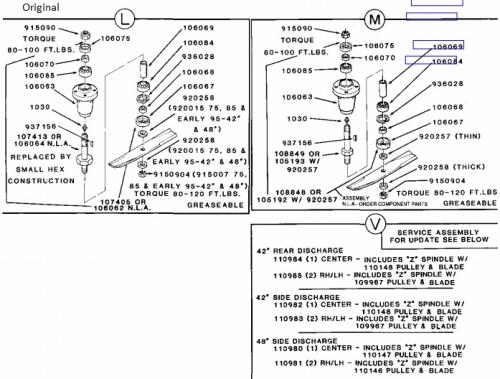

Mower spindle assemblies could be L, M, V or Z
For V see service bulletin 207B
106079 and 106108 blades replaced by 106635 3-blade set (3/4" center hole)
Mower Rotary 1979 42in RD model 95-42XR02
