About This File

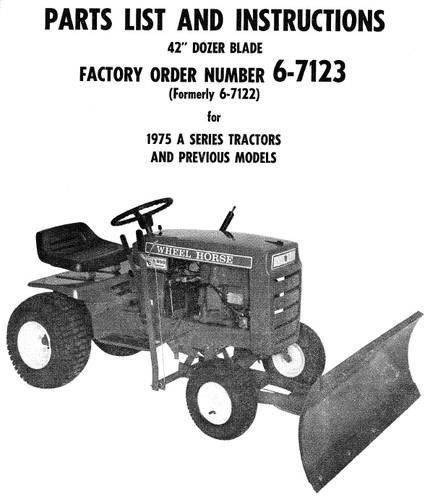

Operator manual #803888
IPL
4 pages 1.01MB
Lift link dimensions submitted by rlrnot
This refers to Item # 28 in the manual part number 104003
1-1/2" by 3/8" bar stock.
OAL = 22-7/8"
All dimensions are from end with (2) 27/64" holes.
23/32" to ctr. of first hole.
1-11/32" to ctr. of sec hole
21-27/32" to ctr. of 11/16" hole
This blade replaced 6-7121
This blade replaced by 6-7123, 6-7124, 66-42BA01, 76-42BA01, 86-42BA01, 96-42BA01 and 06-42BA01
Fits A-800 Ranger
Missed @ Toro
1974 a guess
Dozer 1974 42in model 6-7122 Complete
