Tractor 1977 C-120 & C-140 8-speed D&A IPL SN.pdf

Sign in to follow this

gwest_ca

5 Screenshots

About This File

IPL #803699
71 pages 2.16MB

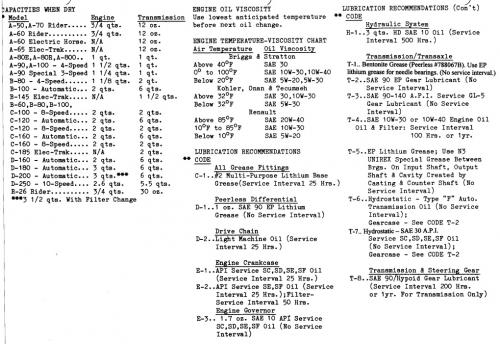

Lube chart SS



Details & Attachments
4 pages 119.12KB

--------------------------------------------------------------------------------------------------------------



Tractor weight 600 lbs.

Long frame 45-1/2" wheelbase

Uses 103907 8-speed transmission with 8 one-piece pinions and 1-1/8" axles

Uses Kohler K301S-47421d with battery ignition and 15 amp stator

Uses 103990 5-terminal 3-position ignition switch



Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"

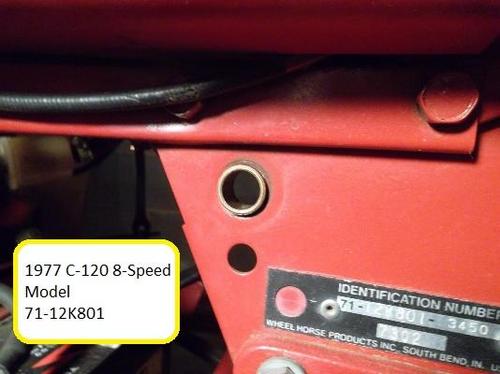

1977 C-120 8-Speed model 71-12K801

1977 serial numbers that have shown up for the 71-12K801
001003 - Build date 1976 6336 December 01 Wednesday Stamped 7336 which is wrong
001752 - Build date 1976 6334 November 29 Monday 7334 looks wrong
001881 - Build date 1976 6336 December 01 Wednesday Stamped 7336 which is wrong
003424 - Build date 1976 6302 October 28 Thursday Stamped 7302 which is wrong
003450 - Build date 1976 6302 October 28 Thursday Stamped 7302 which is wrong This tractor purchased May 1977 and
004861 - Build date 1976 6310 November 05 Friday Stamped 7310 which is wrong
005095
009187
009212 - Build date 1977 7007 January 07 Friday

009234 - Build date 1977 7007 January 07 Friday

009375 - Build date 1977 7011 January 11 Tuesday
0xxxxx - Build date 1977 7061 March 02 Wednesday
012386 - Build date 1977 7075 March 16 Wednesday [075?] Possibly 7075?
015153 - Build date 1977 7089 March 30 Wednesday

015253 - Build date 1977 7089 March 30 Wednesday [M]
016673 - Build date 1977 7133 May 13 Friday - 18673 posted looks wrong?
016864 - Build date 1977 7136 May 16 Monday - 18864 posted looks wrong?
017341 - Build date 1977 7141 May 21 Saturday - Serial number 7341 is missing the 1st digit Should be 17341?
018842

153315 - Made in Belgium - Located in the UK  Model 71-12K8 with G.  D. Mountfield Ltd serial 1973
157066 - Made in Belgium - Located in Bolton UK
160487 - Made in Belgium - Located in the UK



-----------------------------------------------------------------------------------

European model - Serials are consecutive from year to year



Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"



1977 C-140 8-Speed model 71-14K8

1977 serial numbers that have shown up for the 71-14K8

160848 - Made in Belgium




×
×
