Operator manual #810669R1 or 810669 R1
26 pages 2.82MB

Mistakes in manual
393777 engine model should be 303777-0133-01
Wiring diagram is labeled 212-H - may not be correct for this model



IPL from Toro Master Parts Viewer - Tractor
30 pages 2.03MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.



IPL from Toro Master Parts Viewer - Engine
11 pages 961.38KB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.



Transmission drive belt 114433 - (HA x 83.0" or 1/2" x 83")

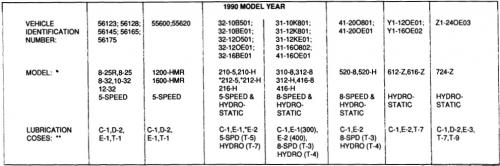

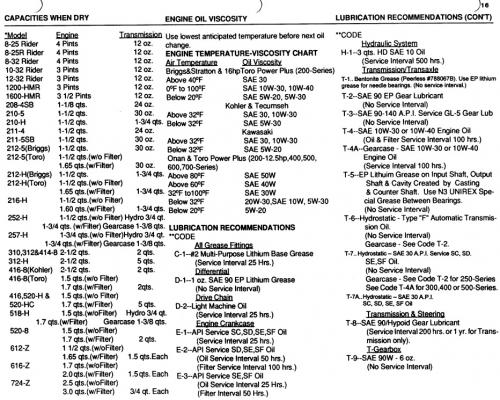

Lube chart SS



Details and attachments
3 pages 115.30KB



1990 216-H model 32-16BE01
1990 serial numbers that have shown up for the 216-H
