About This File
Operator manual
IPL
10 pages 1.15MB
Dated 7-69 and Rev3/71
Includes Includes PSB's #120 #221B

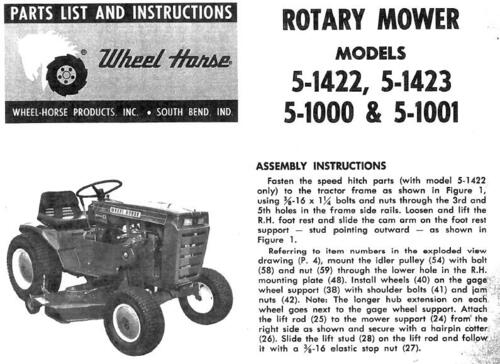

Operator manual IPL #A-5196
4 pages 6.8MB
Better copy
Fits Raider, Charger and Electro long frame models

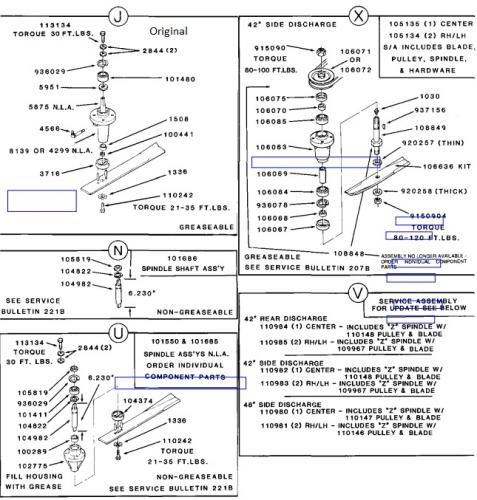

Mower spindle assemblies could be J, N, U, V, X or Z
For N and U see service bulletin 221B
For X and V see service bulletin 207B
Drive belt 9782 (1/2" x 69") [9783 in belt chart is wrong]
Spindle belt 6738 (1/2" x 86")
6693 blade replaced by 100200 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)
Stens replacement - 3 of 350-041 still available March 6, 2021
Mower Rotary 1971 42in SD model 5-1000
