About This File
Operator manual #810735R1
8 pages 2.48MB
Dated 08/89 so should be 1990 also (1991 and 1992 @ Toro)

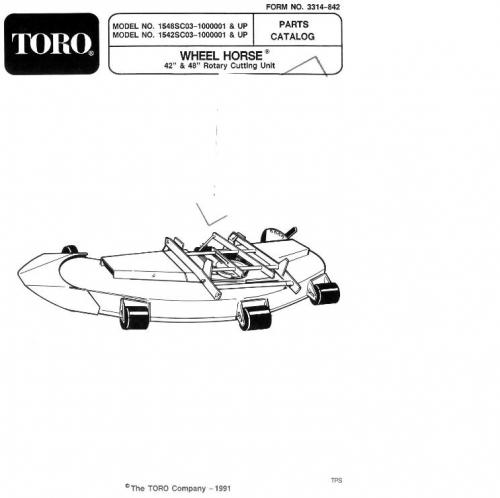

IPL #3314-842
8 pages 1.25MB
Fits 300, 400 and 500-Series tractors
Drive belt 102742 replaced by 94-2501 (1/2" x 103")
Spindle belt 1594 (1/2" x 107.21")
106078 blade replaced by 106637 3-blade set (3/4" round hole)
Mower Rotary 1990 48in SD model 15-48SC03
Mower Rotary 1991 48in SD model 15-48SC03 Serial 1000001-1099999
1991 serial numbers that have shown up for the 15-48SC03
1050676
1050938
1051795
1052015
1052496
1052866
Mower Rotary 1992 48in SD model 15-48SC03 Serial 2000001-2099999
1992 serial numbers that have shown up for the 15-48SC03
2000263
2000375
2000734
2000800
2001339
2002229
2002420
