About This File
Operator manual #810735R1 or 810735 R1
8 pages 2.48MB
Dated 08/89 so should be 1990 also (1991 and 1992 @ Toro)

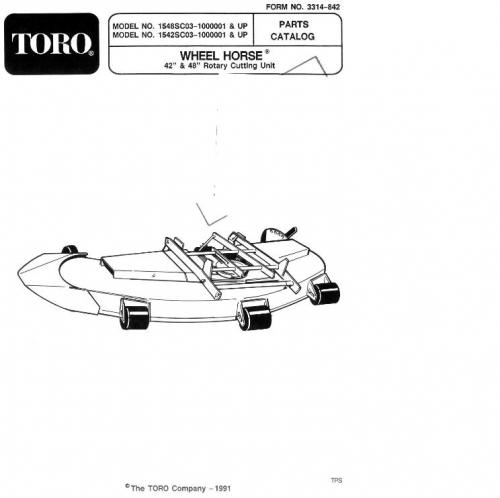

IPL #3314-842
8 pages 1.25MB
Fits 300 and 400-Series tractors
Drive belt 102742 replaced by 94-2501 (1/2" x 103")
Spindle belt 6738 (1/2" x 86")
106077 blade replaced by 106636 3-blade set (3/4" round hole)
Mower Rotary 1990 42in SD model 15-42SC03
Mower Rotary 1991 42in SD model 15-42SC03 Serial 1000001-1999999
1991 serial numbers that have shown up for the 15-42SC03
1050621
Mower Rotary 1992 42in SD model 15-42SC03 Serial 2000001-2999999
1992 serial numbers that have shown up for the 15-42SC03
2000092
2000304
