Tractor 1993 520-H & 520-He Wiring Detailed Rev.pdf


gwest_ca

2 Screenshots

About This File

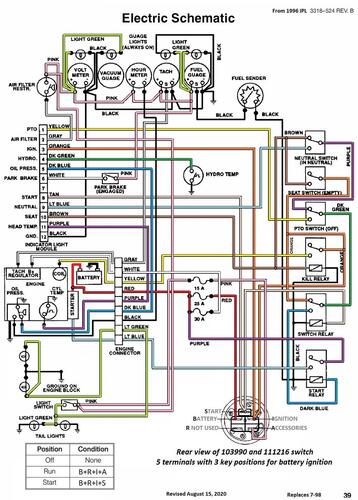

Detailed wiring from the Demystification Guide #492-4509 Color pdf

8 pages 3.1MB

p7-97 to p7-104



Mistake in 492-4509 manual - The 113476 and 78-0060 tachometer does not get it's signal on the gray wire from the B+ terminal of the voltage regulator. This is also incorrect on page 3-10 describing the tachometer's operation.
The gray wire comes from one of the regulator's AC terminals.



1993 520-H model 73501 Serial 39000001-39999999



1993 520-H model 73520 Serial 3900001-3999999 - Export model 520-He




×
×
