Blade Dozer 48in 1984-1989 06-48BC01 OM TIPL DNA SN.pdf

Sign in to follow this

2 Screenshots

About This File

Operator manual #810280R1 or 810280 R1
6 pages 1.89MB
Dated 05/83

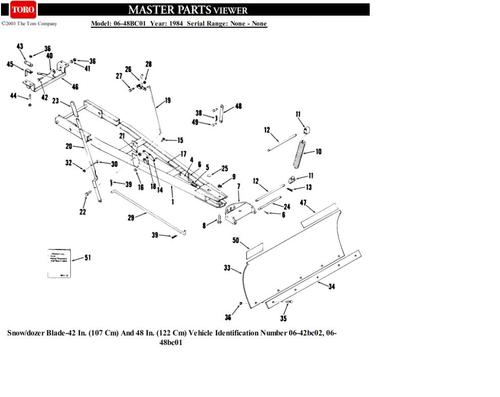

IPL from Toro Master Parts Viewer
2 pages 144.29

Fits long and short frame tractors except Lawn Rangers and mid-engine models


Dozer 1984 42in model 06-48BC01 Complete (Blade changed to 48in this year)
1984 serial numbers that have shown up for the 06-48BC01
248165 - Model year a guess


Dozer 1985 42in model 06-48BC01 Complete

Dozer 1986 42in model 06-48BC01 Complete

1986 serial numbers that have shown up for the 06-48BC01

04199 - Model year a guess - 4199 could be a 1984 build date 1984 4199 July 17 Tuesday

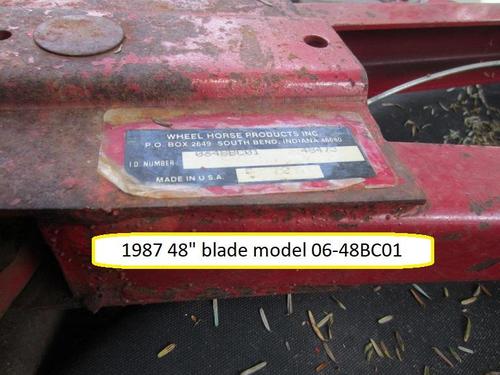

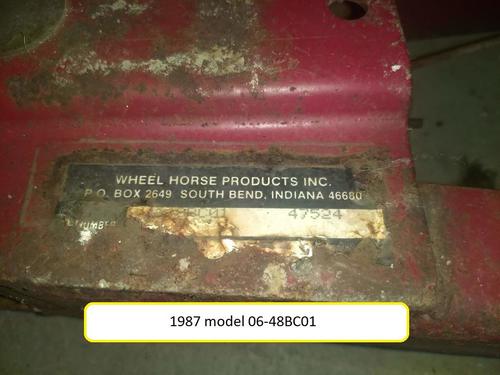

Dozer 1987 42in model 06-48BC01 Complete
1987 serial numbers that have shown up for the 06-48BC01
28241 - Model year a guess
29335 - Model year a guess
30262 - Model year a guess
31097 - Model year a guess
38741 - Model year a guess
38855 - Model year a guess

39219 - Model year a guess
39366 - Model year a guess
39833 - Model year a guess

46893 - Model year a guess

Dozer 1988 42in model 06-48BC01 Complete
1988 serial numbers that have shown up for the 06-48BC01
50002 - Build date 1988 8192 July 11 Tuesday
50435 - Model year a guess
50953 - Model year a guess
51721 - Build date 1988 8268 September 24 Saturday
51845 - Build date 1988 8268 September 24 Saturday

Dozer 1989 42in model 06-48BC01 Complete
1989 serial numbers that have shown up for the 06-48BC01

0052547 - Build date 1988 8291 October 17 Monday
0053177 - Model year a guess



Dozer DNA of long tractor frame dozer blades

1966-1967 model BD-426 - Fits LONG frame tractors - Mounts ahead of the rear axle - replaced by

1968 model 6-1111 - Fits LONG frame tractors - Mounts ahead of the rear axle

----------------------------------------------------------------------------------------------------------------------

1968 model 6-4111 - First to fit LONG & SHORT frame tractors and first to mount under the rear axle - replaced by

1969 model [6-4112 + 6-9621]

1970-73 model [6-4113 + 6-9622]

1973-74 model [6-4113 + 6-9623]

1974 model [6-4114 + 6-9624]

1974 model 6-2131

1975 model 6-2132

1976 model 6-2133

1976 model 66-42BC01

1977 model 76-42BC01

1978 model 86-42BC01

1979 model 96-42BC01

1980 model 06-42BC01

1981-1984 model 06-42BC02 (Up to here they are 42" wide)

1984-1989 model 06-48BC01 (They are now 48" wide) - replaced by the following

1990 model 06-48BC02

1991-1993 model 06-48BC03

1993-2001 model 79350

2002 2004-2009 2012 model 79364




×
