Mower Rotary 42in SD 1986-1988 05-42MS05 3-400 OM IPL SN.pdf

Sign in to follow this

gwest_ca

4 Screenshots

About This File

Operator manual #810403R1 or 810403 R1 (This is a better copy)
8 pages 1.35MB
Dated 05/85

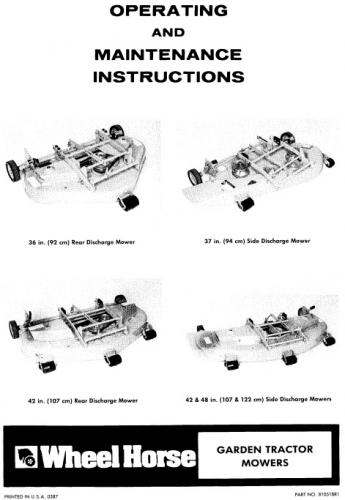

Operator manual #810518R1
8 pages 1.79MB
Dated 03/87

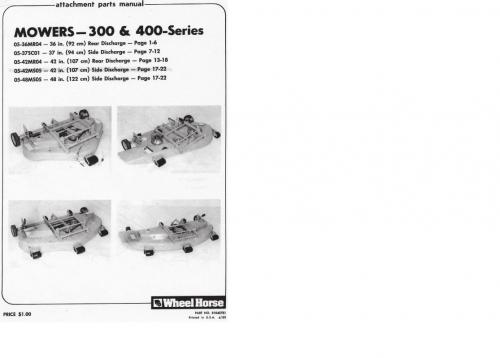

IPL #810407R1
7 pages 2.57MB
Dated 4/85

Fits 300 and 400-Series tractors

Drive belt 102742 replaced by 94-2501 (1/2" x 103")
Drive belt with front mower carrier and single cylinder engine 109956 (1/2" x 102")
Drive belt with front mower carrier and twin cylinder engine 102742 replaced by 94-2501 (1/2" x 103")


Spindle belt 6738 (1/2" x 86")



Mower blades 106077 replaced by 106636 3-blade set (3/4" round hole)

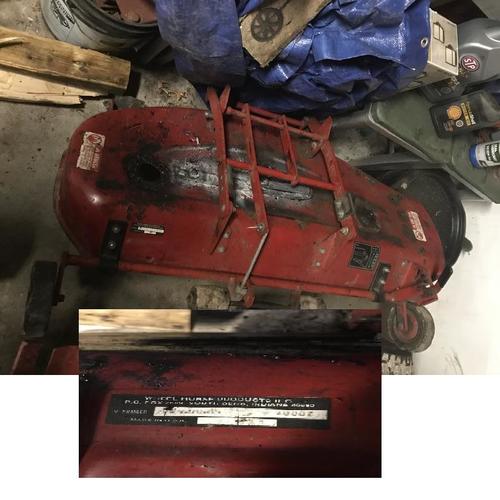

Mower Rotary 1986 42in SD model 05-42MS05
1986 serial numbers that have shown up for the 05-42MS05

54474

63703
64691
65540 - Build date xx43

66024 - Purchased April 14, 1987
66452
69271


Mower Rotary 1987 42in SD model 05-42MS05
1987 serial numbers that have shown up for the 05-42MS05
70390

70887
71065

72263

72764
72994
73288

73314

73476
73642
74883
76085

76161 - Build date 1987 7013 January 13, Tuesday

77342 - Purchased May 9, 1987

77764

Mower Rotary 1988 42in SD model 05-42MS05
1988 serial numbers that have shown up for the 05-42MS05

82306

82374
82419

82681 - On an early 1988 tractor

82961

84331
84726

84853

85548

85657

85680

87611 - Build date 1988 8134 May 13, Friday
