Tractor 1973 Auto 10hp 12hp 14hp 16hp Automatic OM Wiring Revised SN.pdf

Sign in to follow this

8 Screenshots

About This File

Operator manual #A-5325

Wiring

8 pages 2.42MB

Dated 7/72

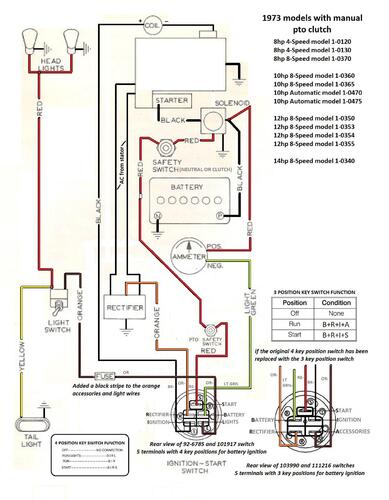

Manual pto clutch wiring Color

1 page 500KB

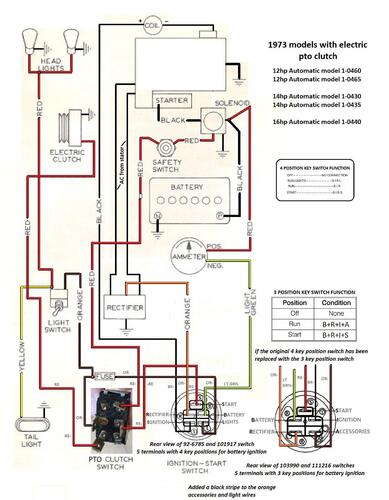

Electric pto clutch wiring Color

1 page 491KB

Note - Electric clutch fuse #101639 is a SFE-20 amp

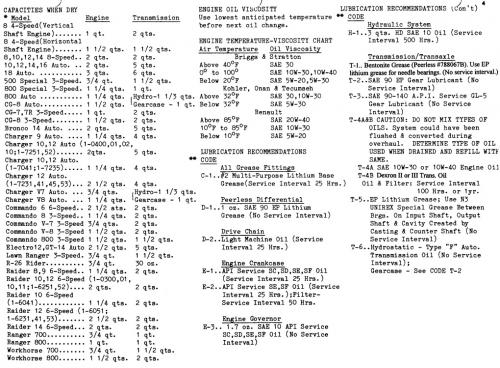

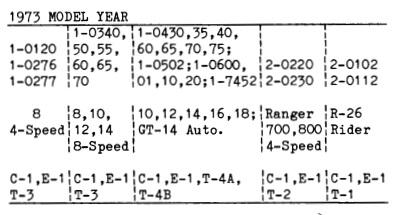

Lube chart SS



1973 10hp Auto model 1-0470 Uses 1" axles and 4-pinion differential in 5087 transaxle with 7880 Hydrogear

1973 serial numbers that have shown up for the 1-0470
0903514 - Model 1-0470-8
0903565
0903580
0929497 - May be a 1-0475



1973 10hp Auto model 1-0475 Uses 1" axles and 4-pinion differential in 5090 transaxle with 102866 Piston-piston Hydrogear

1973 serial numbers that have shown up for the 1-0475
0929497 - May be a 1-0470
0935921 - Model 1-0475-8
0936013
0936062
0936397
0937822 - Model 1-0475-8



1973 12hp Auto model 1-0460 Uses 1-1/8" axles and 10-pinion limited slip differential in 5062 transaxle with 7880 Hydrogear

1973 serial numbers that have shown up for the 1-0460
0126412 - Made in Belgium
0133154 - Made in Belgium - Located in Norway
0902422
0902561
0902586
0902587 - Model 1-0460-8
0902600



1973 12hp Auto model 1-0465 Uses 1-1/8" axles and 10-pinion limited slip differential in 5089 transaxle with 102866 Piston-piston Hydrogear

1973 serial numbers that have shown up for the 1-0465
0931554 - Model 1-0465-8
0931598
0936911
0936965
0937120

0937324
0943448
0943470
0957130

0957156

0957265 - Model 1-0465-8
0957280

0962679 - Model 1-0465-8



1973 14hp Auto model 1-0430 Uses 1-1/8" axles and 10-pinion limited slip differential in 5062 transaxle with 7880 Hydrogear

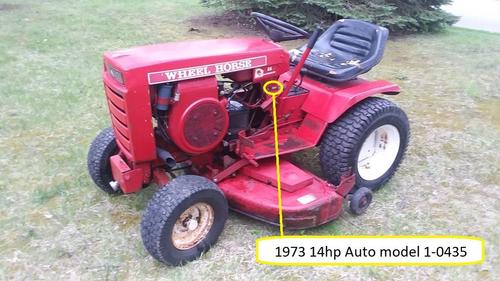

1973 14hp Auto model 1-0435 Uses 1-1/8" axles and 10-pinion limited slip differential in 5089 transaxle with 102866 Piston-piston Hydrogear

1973 serial numbers that have shown up for the 1-0435

0931348 - Model 1-0435-8

0936441 - Model 1-0435-8

0936438 - Model 1-0435-8

0936446 - Model 1-0435-8

0936734 - Model 1-0435-8



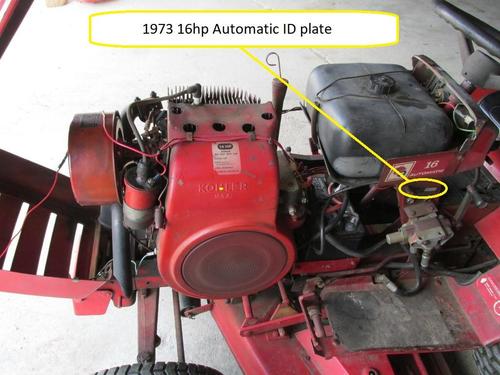

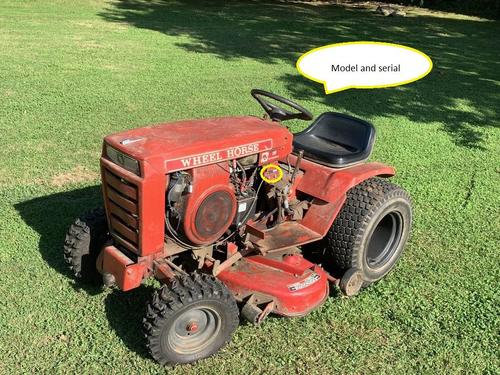

1973 16hp Auto model 1-0440 Uses 1-1/8" axles and 8-pinion differential in 5088 transaxle with 102866 Piston-piston Hydrogear

1973 serial numbers that have shown up for the 1-0440
0901375
0929829
0929836 - Model 1-0440-8

0931914 - Model 1-0440-8
0931949
0942825
0942886
0957410

0957426 - Model 1-0440-8
0957462
0957470
0957531
0962407 - Model 1-0440-8
0966557

0966637 - Model 1-0440-8
0966653
0966696
0969155
0969178
0969185




×
×
