Mower Rotary 48in SD 1988 05-48SC01 3-4-500 OM TIPL SN.pdf

Sign in to follow this

admin

3 Screenshots

About This File

Operator manual #810518R1 or 810518 R1
8 pages 1.79MB
Dated 03/87

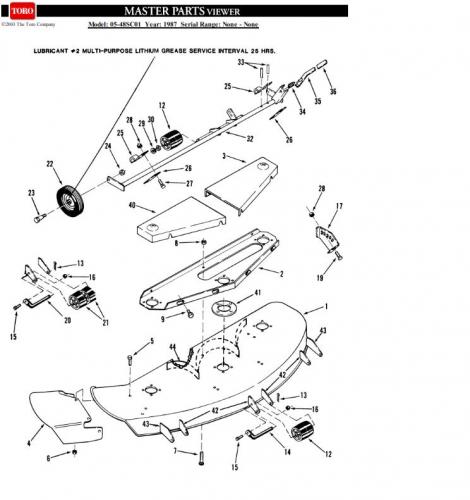

IPL from Toro Master Parts Viewer
6 pages 426.07KB

Fits 300, 400 and 500-Series tractors



Drive belt 102742 replaced by 94-2501 (1/2" x 103")
Spindle belt 1594 (1/2" x 107.21")



Uses Z spindle assembly



106078 blade replaced by 106637 3-blade set (3/4" round hole)



Mower Rotary 1988 48in SD model 05-48SC01

1988 serial numbers that have shown up up the 05-48SC01

80110 - Build date 1988 8217 August 04 Thursday




×
×
