Tractor 1973 Auto 10hp 12hp 14hp 16hp Automatic IPL Wiring Revised.pdf

Sign in to follow this

admin

3 Screenshots

About This File

IPL #A-5345

Wiring

17 pages 4.70MB

Dated 2/73

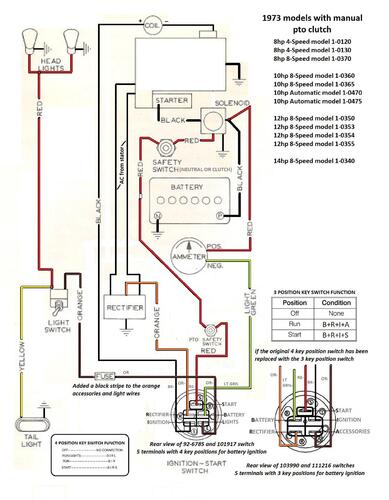

Manual pto wiring Color

1 page 500KB

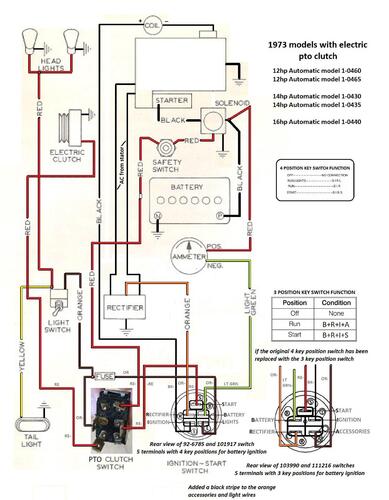

Electric pto wiring Color

1 page 491KB



5955 Sundstrand hydro pump gasket nla - 102759 gasket should work



Tractor drive belt # 7478 replaces # 4535 (HB/5L x 84.22" or 5/8" x 84.22")



1973 10hp Auto model 1-0470 Uses 1" axles and 4-pinion differential in 5087 transaxle with 7880 Hydrogear - (Manual pto)

1973 10hp Auto model 1-0475 Uses 1" axles and 4-pinion differential in 5090 transaxle with 102866 Piston-piston - (Manual pto)



1973 12hp Auto model 1-0460 Uses 1-1/8" axles and 10-pinion limited slip differential in 5062 transaxle with 7880 Hydrogear - (Electric pto)

1973 12hp Auto model 1-0465 Uses 1-1/8" axles and 10-pinion limited slip differential in 5089 transaxle with 102866 Piston-piston - (Electric pto)



1973 14hp Auto model 1-0430 Uses 1-1/8" axles and 10-pinion limited slip differential in 5062 transaxle with 7880 Hydrogear - (Electric pto)

1973 14hp Auto model 1-0435 Uses 1-1/8" axles and 10-pinion limited slip differential in 5089 transaxle with 102866 Piston-piston - (Electric pto)



1973 16hp Auto model 1-0440 Uses 1-1/8" axles and 8-pinion differential in 5088 transaxle with 102866 Piston-piston - (Electric pto)
