About This File

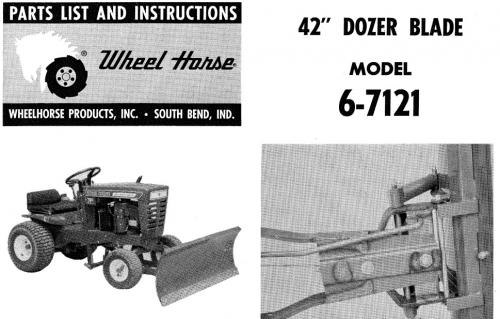

Operator manual #803888
IPL
4 pages 1.60MB
Fits vertical shaft Commando and Charger V7 V8 tractors and A-800 Ranger in 1974
This blade replaced by 6-7122, 6-7123, 6-7124, 66-42BA01, 76-42BA01, 86-42BA01, 96-42BA01 and 06-42BA01
Lift link dimensions submitted by rlrnot
This refers to Item # 28 in the manual part number 104003
1-1/2" by 3/8" bar stock.
OAL = 22-7/8"
All dimensions are from end with (2) 27/64" holes.
23/32" to ctr. of first hole.
1-11/32" to ctr. of second hole.
21-27/32" to ctr. of 11/16" hole.
Dozer 1970 42in model 6-7121 Complete
Dozer 1971 42in model 6-7121 Complete
1971 serial numbers that have shown up for the 6-7121
771973
Dozer 1972 42in model 6-7121 Complete
Dozer 1973 42in model 6-7121 Complete
