  • 953 nut

                          Specifications

    Length                                                                         69"           Engine                       Kohler K241S        46135A

    Wheelbase                                                                  47"           Transmission             Wheel Horse             5045

    Width                                                                        36.5"           Engine displacement              23.9 Cubic Inches

    Height                                                                         42"            Engine Oil Capacity                               2 Quarts

    Net Weight                                                           656 lbs.            Air Cleaner                      Novo Updraft Oil Filled

    Engine    (4 cycle, single cylinder air cooled)      9.6 H.P.            Spark Plug               Champion H-10   Gap .025"

    Fuel Capacity                                                     2.75 Gal.            Ignition points gap                                       .020"

    Tires, front                4.00 X 8" Pneumatic (16" diameter)

    Tires, Rear              6.40X 15" Pneumatic (27" diameter)

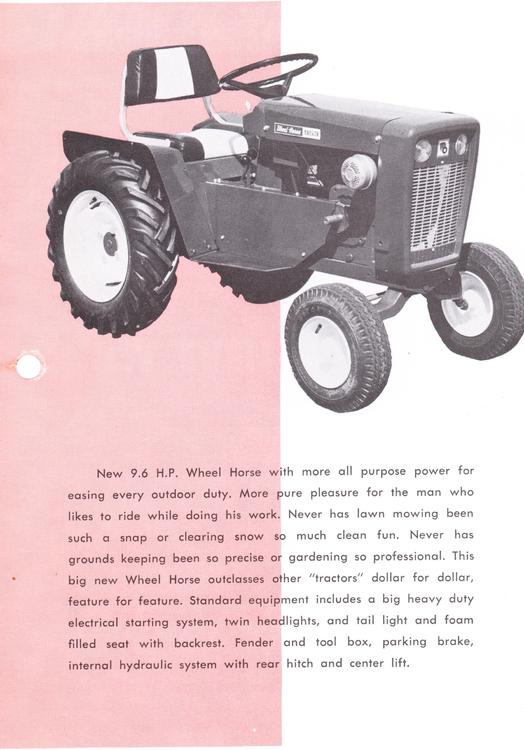

    566619e3ba686_953brochure.thumb.jpeg.33e

    Early production 953s can be distinguished by four primary features. The headlights are recessed behind the grill rather than protruding from it, they use a "Ross" steering gear rather than the later "Fan Gear", Have Serial Numbers beginning with "62" and the steering wheel has a diamond shaped center cap rather than a round one. It is thought that only about one thousand early models were produced though no actual production numbers are available.

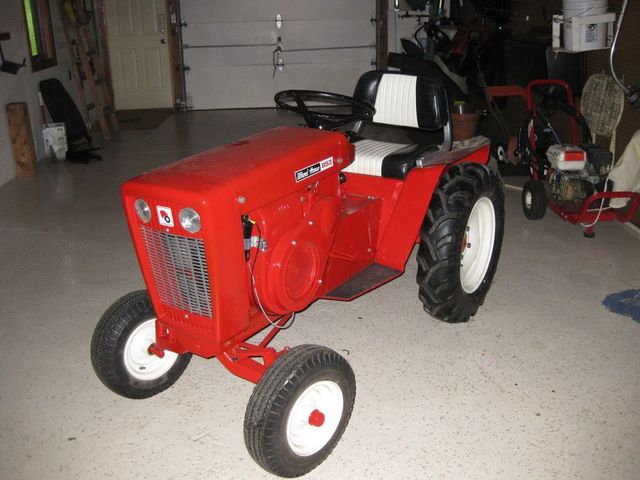

    953.thumb.jpg.a0053ad3dd00ac13debeffdf60

    5664d7a8bfffc_953survivor.JPG.7db809cd80

    5664e032c5d41_953atWHToroMuseum.jpg.0796

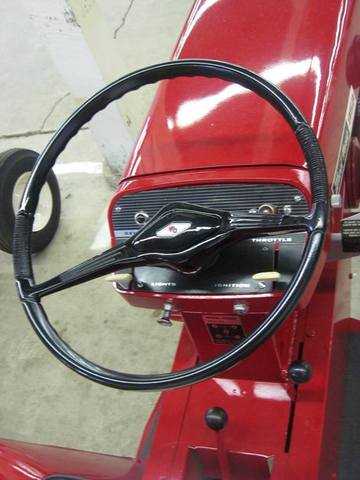

    Early 953 Steering Wheel.

    5664e3cb8722c_early953steeringwheel.thum

    Ross Steering Box

    5664e7f52e2f3_RossSteeringBox.jpg.580653
