a.dumont

Starter Solenoid Location?

Recommended Posts

Posted (edited)

Just picked up a 1973 Auto 18. Battery, starter solenoid, and all wiring have been modified and replaced. Trying to go back to the original. I have a wiring schematic, but no images to show the location of where the solenoid mounts, etc. If anyone has a comparable model with a Kohler twin cylinder engine, please take some photos of your wiring harness, solenoid location, etc. and post below.

Edited by a.dumont

Share this post


Link to post
Share on other sites

Sitting in the seat the solenoid is/was located mounted to the frame on the right side under the battery tray, if its not there you should see the 2 holes left from the original mount. From factory its HID behind a panel and its a nightmare to get to with out removing it. (as the years have gone by, I decided a while back to just leave that panel off!);)

  • Like 1

Share this post


Link to post
Share on other sites

The gap on the right side behind the engine flywheel - on the frame as said . Yes , it's a real pain to locate it without those panels removed and it fits tightly against the panel itself . I've never found any good pics of how the wiring was routed through there , but I just re-did mine yesterday during re-assembly and I can get a pic of how I did it to protect the battery cables .



Sarge

Share this post


Link to post
Share on other sites

Sarge,

I'd appreciate a few pictures of your rewiring. I may need to do more work to this than originally expected just to get it functional. Once everything works, I be doing a full overhaul.

Share this post


Link to post
Share on other sites

This image is from Hodge71's (Jeff in PA) post in the Gallery section here. I believe the Solenoid location can be seen here?. Not familiar with the Model but clearly an advantage of having an up-to-date gallery of models/images. Hope this helps.



post-1339-0-12838500-1390929035_thumb.jp

  • Thanks 1

Share this post


Link to post
Share on other sites

Sorry - totally forgot to grab some pics when I was inspecting the pump hunting an oil leak - will get some shortly....



Sarge

Share this post


Link to post
Share on other sites

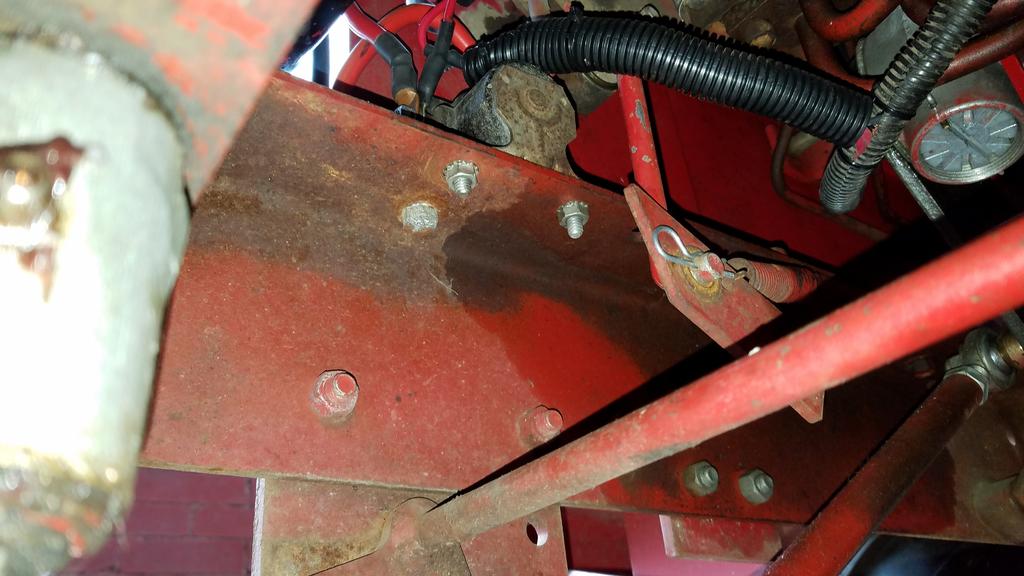

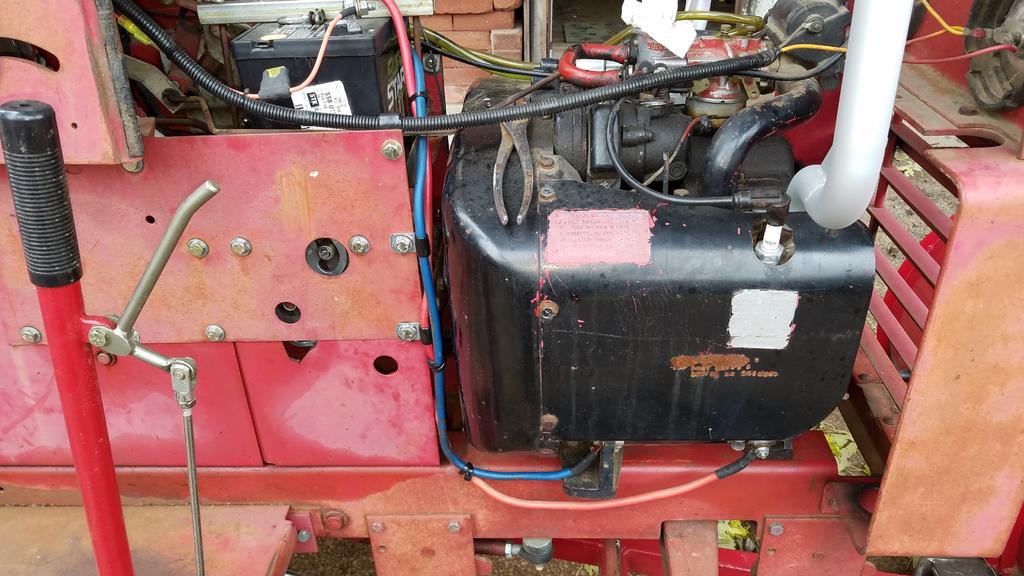

Here you go -

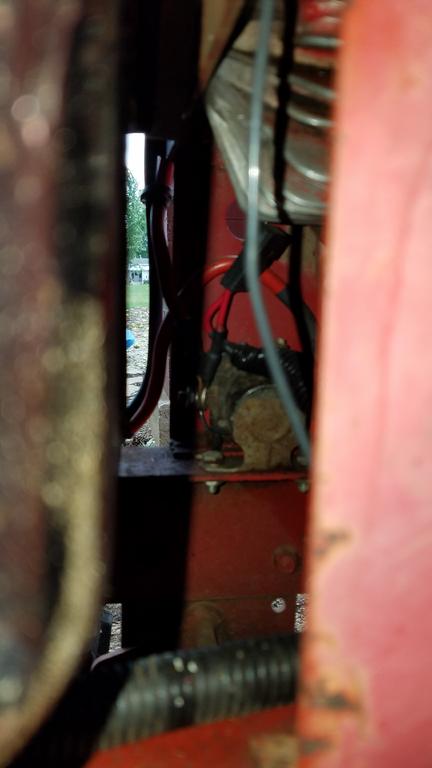

Last pic is from the left side - facing the right frame rail just behind the engine . It's no real fun getting to that solenoid - easier to hook the battery cables to it first , them mount the unit to the frame . Make sure it's well grounded to the frame - otherwise the coil in it can't work to make the contact between the two main terminals .



As with so many of these tractors - this is not original . I have no idea nor can I find any good pics of how the wiring was originally routed . I just took the best path I could find to keep it away from the pump's directional linkage and all the brackets so any vibration wouldn't eat through a cable . I used Keps nuts to help with frame grounding and there is a ground wire running from one mounting bolt of the solenoid over to the mounting bolts on the rectifier and then up to the battery negative post . This prevents having to rely on metal to metal contact to complete the ground circuit on these things and any issues in the future . I too would love to see exactly how the original setup was routed - it's a tight spot due to how the pump is mounted in the tractor .



Sarge
