Jump to content
pacer

Rectifier Packard 56 type connector?

Recommended Posts

BMW was asking about connecting the rectifier wires on a D-200 which prompts me to ask about the Delphi Packard 56 type connector that goes to it. I have looked at connectors til I'm crosseyed and cannot find this type. Its a 3 point but its different in that it has 2 on bottom with the one on top to the side - not in the much more popular 'pyramid' style. Anyone know of a source?? Seems like all the connectors to the regulators - and the ign switch - get hot and melt. I have 3 of the D's and all 3 are this way. The one below is not so bad but is melted enough the the tabs wont engage .... so far I have just been pushing each individual wire onto the rectifier, but :handgestures-thumbdown:


  • Like 1

Share this post


Link to post
Share on other sites
Posted (edited)

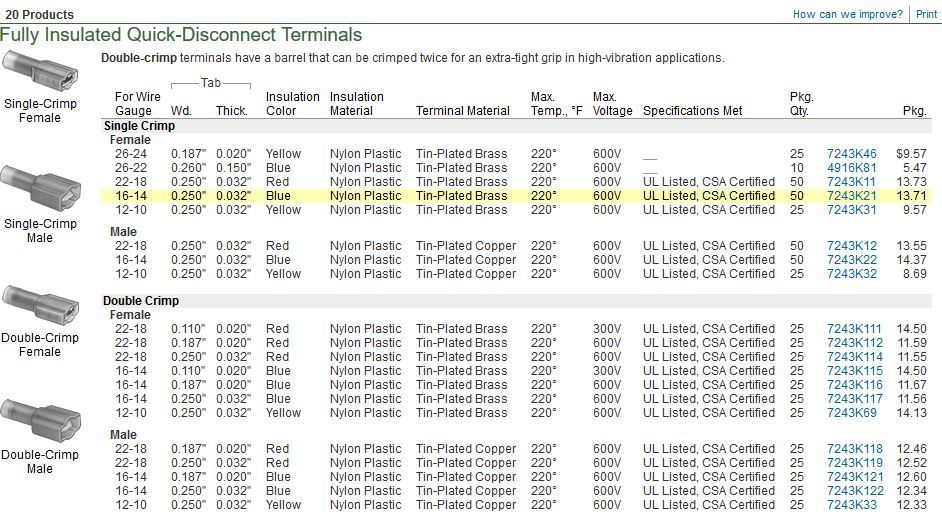

Not a direct answer but I do not bother trying to find the right connectors in all cases.  I just put on fully insulated connectors and put each wire on separately.  have done it for regulators and ignition switches


Edited by pfrederi

Share this post


Link to post
Share on other sites

I got the Packard 56 series connectors (and crimpers) from: THE ELECTRICAL DEPOT.COM!

I bought single, double, triple, quadruple and 5 position (what is 5?) male & female connectors as well as the male/female ends for the wires.

I rewired a tractor using all new connectors and the correct gauge AND color of wire! Damn proud of myself!

  • Like 3

Share this post


Link to post
Share on other sites

KC,

Amazingly I missed that web site somehow, but unfortunately they also didnt have that connector, apparently it has been totally discontinued. I will just continue and do like paulf (above) does and just use individual connections at the rectifier. Thanks for the link tho, looks like a good one to keep in bookmarks.



The 5 position is the one that goes at the ignition switch - they are also prone to get hot and melt.

  • Like 1

Share this post


Link to post
Share on other sites

How about taking the 5 position plug and cut off the 2 that aren't needed to make the 3 position?

Share this post


Link to post
Share on other sites
5 hours ago, diesel cowboy said:

How about taking the 5 position plug and cut off the 2 that aren't needed to make the 3 position?

Possibly, but some rectifiers are 3 terminals in a row, and some are offset from one another.

If the 5 position works, really don't need to cut it, just use the 3 positions necessary to connect to the regulator.

I will try to look this evening to see if the 5 position terminal will fit the rectifier.

Share this post


Link to post
Share on other sites
Posted (edited)

I had the same thought, except I was wondering about the four slot. Now since this has been brought up - and I hadnt thought of the five slot connector - and, since I have a fiver on hand ...... well I'll just give er a try!!:lol:



Edit: OK, so the 5 holer - and no doubt the 4 holer - will work! Although I didnt actually try with it all hooked up - I just fitted a blank onto a spare rectifier. But -- it will have to be "trimmed" of the excess slots, say with a cut-off wheel on a Dremel, which sure wont be a problem. they would interfere with mounting - on mine.

Edited by pacer

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now


  • Recently Browsing   0 members

    No registered users viewing this page.

×
