How does it steer?

Surprisingly well, I thought it might be heavy but it's actually quite light.

Share this post


Link to post
Share on other sites

She's looking good Mark, that should be plenty of articulation on the front :D:handgestures-thumbup:

Share this post


Link to post
Share on other sites

Wow.. that's going to be a really cool horse Mark..   and like Ian said plenty of articulation on it..awesome.

Share this post


Link to post
Share on other sites

Looks great! So with the 4x4 engaged is there any binding when making turns?

Mike........

That's the last bit, I had to make everything else fit before committing to the final drive. There's an intermediate shaft to go ahead of the tranny that increases the drive ratio. The drive will be taken from the brake drum as it is a fixed 12:1 ratio and pretty handy.

6a1d195d427f95159358df11f5470e03_zps55a1

The front axle can be disengaged and that linkage is already complete as 4WD only needs to be used when the rear wheels lose traction.

Even though I have measured and designed Ackerman steering, when the front axle is driven it will cause wind up, causing the front wheels to scrub and affect the turn radius.

Edited by meadowfield

Share this post


Link to post
Share on other sites

i like it:) looks a bit too high in the front though



Koen

It sits just right in the front, need larger tires in the back with the rear fenders raised and the footrest modified to make room.

Share this post


Link to post
Share on other sites

i like it:) looks a bit too high in the front though



Koen

It sits just right in the front, need larger tires in the back with the rear fenders raised and the footrest modified to make room.

I did that with my sons, I think I might lower the tranny by 2 inches and see how it goes...

Share this post


Link to post
Share on other sites

Nice "upgrade"!  Id really like to see details on the drive and how your going to transmit power to the front.

Share this post


Link to post
Share on other sites

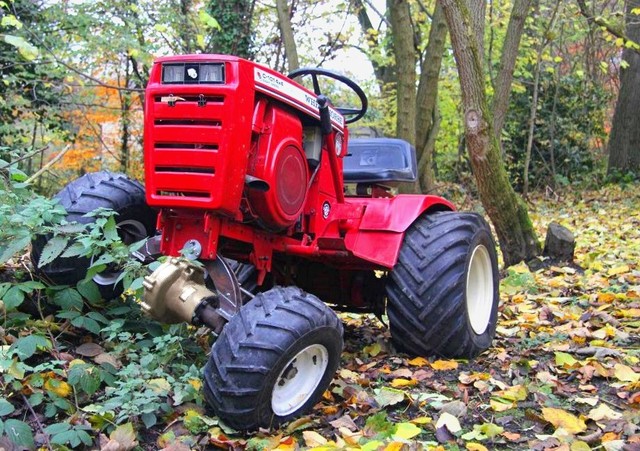

Really cool. This pic belongs in the calendar thread .


 No, this one.   :)

post-3498-0-82567900-1385474338_thumb.jp

  • Like 2

Share this post


Link to post
Share on other sites

How about Both???  Excellent pics and it definetly has "the look" in both.

  • Like 1

Share this post


Link to post
Share on other sites

How about Both???  Excellent pics and it definetly has "the look" in both.



thanks guys!  I think I might just print both and put on my wall :dance:

  • Like 1

Share this post


Link to post
Share on other sites

Nice "upgrade"!  Id really like to see details on the drive and how your going to transmit power to the front.



thanks, there is a definite plan. Maybe I'll post some more pics this weekend...

Share this post


Link to post
Share on other sites

As I'm home for a few days, managed a few hours earlier


Turning down the inside of the brake drum to 30mm


Then turning down a sprocket to fit over the shaft.


The two together, the drum now fits on reversed with sprocket on the outside.

To complete the story, here's a snapshot of the intermediate gearbox calculator.

projectC4gearcalculatorv1_zpsbe831dae.jp

I just input the two axle gear ratios, tyre diameters and preferred pulley sizes. The calculator tells me what sprocket sizes I need to get the closest match.

Edited by meadowfield

Share this post


Link to post
Share on other sites

Disastrous update...

Firstly turned a ring to fit inside the drum in order to lock the sprocket and align it.


Then turned the inside of the drum to make it a tight fit.


Then welded the two together, they just about weld... The brake drum is very powdery and very interesting to turn


Then pushed the two together and pushed the drum back onto the transmission to see the fit. Ouch!!! As I pushed it onto the shaft I trapped my thumb on the brake band and my nail has gone black!? :( not done that for a while...

Then the real disaster


The sprocket should be an 08B and clearly it isn't! The chain rides high and the tooth width is too small. I wish I had noticed before I did the work boring the centre.

That's going to be it for now as I'm away for a few days.

Edited by meadowfield

Share this post


Link to post
Share on other sites

I feel you pain...  :scared-eek:

smashed my thumb early August, trying to remove a stuck hitch pin.

Only recently started to feel, and look normal again.    :eusa-doh:

Share this post


Link to post
Share on other sites

:text-goodpost:   I don't think I would change the tire size, just make up an adapter plate to elevate the rear two or three inches at the tranny mount. You already have the gearing worked out with the tires that are on it, going to bigger tires would change that. :text-coolphotos:

Edited by 953 nut

Share this post


Link to post
Share on other sites

:text-goodpost:   I don't think I would change the tire size, just make up an adapter plate to elevate the rear two or three inches at the tranny mount. You already have the gearing worked out with the tires that are on it, going to bigger tires would change that. :text-coolphotos:

Tyre size is fixed, I like the look and as you say the gearing is sorted.

I will probably do the same to the rear as I doc with my sons. Weld a two inch piece on the bottom of the tranny mount and move the tranny down a few inches. It's easier than moving the fender, etc.

Share this post


Link to post
Share on other sites

The last update was really annoying, fortunately the company that shipped accepted their mistake and sent the correct part this time.

That mean that the last mods to the brake drum had to be undone...

e1478deab89acd606439ad547827c8d2_zps83b5

Careful use of the grinder and a hammer! Note the casting broke instead of the weld.

The inside was cleaned up and the sprocket fits inside using 3 screws to hold it in place.

4a905a03164553468b4598bc86bbb7c3_zpsd279

Finally getting me to where I should have been a week ago.


Share this post


Link to post
Share on other sites

Bit cold and windy up north today... Painted the front wheels indoors, swmbo (the boss) not happy with the smell of paint and thinners.

87cd6ac527d245097e87eb0024c3b052_zps438f

Drive belt and bearings arrived today :)

Mock up to check the fit and general idea - final implementation will not be made from wood :P


Share this post


Link to post
Share on other sites

Bit cold and windy up north today... Painted the front wheels indoors, swmbo (the boss) not happy with the smell of paint and thinners.

Ahh Bless 'em , the Ladies don't like the smell of paint in the house, but Nail Polish and the Remover fumes are ok  :eusa-think:  .



Glad your back on track, looking good and the Black Thumb Nail is on the mend :handgestures-thumbupright: .
