Snow Thrower Lift Tube and Flag Dimensions


  • Please log in to reply
15 replies to this topic

#1 OFFLINE   plowmaster

plowmaster

    Advanced Member

  • Members
  • PipPipPip
  • 194 posts
  • Joined 15-July 08
  • 0 thanks
    • Member No: 501
  • Locationlisbon

Posted 21 August 2008 - 05:00 AM

apparently im missing the part that runs from the bottom tube to the tractor. if anyone has pics of this part or dementions i sure would appreciate them

its getting cold here, 38 yesterday mornin. hope we dont have an early frost.

thanks again guys.

#2 OFFLINE   TT-(Moderator)

TT

    Got Wheel Horse?

  • Moderators-(Moderator)
  • 10,624 posts
  • Joined 06-August 07
  • 146 thanks
    • Member No: 33
  • LocationJulian, PA

Posted 21 August 2008 - 10:09 AM

This one will definitely go to the FAQ section!

This lift rod and flag are for my 1986 42" single-stage snowthrower for use on a long frame garden tractor. I have had this thrower mounted on a 1986 312A, 1990 416H, 1992 416-8, and a 1973 12 8 speed. Pre Attach-Matic tractors will need the tube length altered, as will the short and medium frame machines, but the "flag" is basically the same. This particular flag does not have the lift assist spring tab, but one could easily be added. (I use it on a 416 with hydraulic lift now, so it's not needed.)

The lift tube is 1 1/4" O.D. X 3/4" I.D. by 42" long. (raw)
The plate at the end of the tube is 3/8" X 2" strap steel, 6 1/2" long. (bent per photo at 3" from the end opposite the hole)
The tube overlaps the plate by 2 3/4" and is welded on both sides.
The centerline of the hole in the plate is roughly 44 3/4" from the end of the tube.

Posted Image

Posted Image

Posted Image

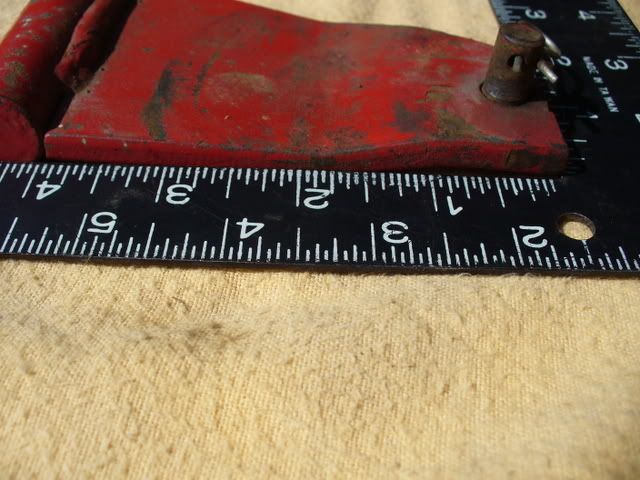

The flag is constructed from one piece of 3/4" round X 11" long welded to a piece of 1/4" X 3" flat steel, 4" long. The end opposite the rod is 1 1/2" wide. (angle on front side toward tube)
There is an offset bend per photo. The first bend is 2" from rod - second bend at 3". Clevis pin is 3/8" X 3/4".

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image
  • Hydro likes this

Terry



Interested in becoming a forum supporter?


Thanked by 1 Member:
as350mechanic1

#3 OFFLINE   MaineDad

MaineDad

    Senior Advanced Member

  • Members
  • PipPipPipPipPip
  • 1,414 posts
  • Joined 28-November 07
  • 4 thanks
    • Member No: 69
  • LocationMaine

Posted 21 August 2008 - 12:06 PM

Terry,

I saved a copy of the last picture of the lift flag. I don't know how many times each year someone on the Yahoo WH group wants to know what a lift flag is <_<
1977 C-120 8 Speed (Restored)
1977 C-120 8 Speed (Being Restored)
Various attachments

#4 OFFLINE   TT-(Moderator)

TT

    Got Wheel Horse?

  • Moderators-(Moderator)
  • 10,624 posts
  • Joined 06-August 07
  • 146 thanks
    • Member No: 33
  • LocationJulian, PA

Posted 21 August 2008 - 12:11 PM

Yes, Micah.....
It will be a popular question again real soon! B)

BTW -- If anyone needs any other info or dimensions on these pieces, just "shout". :whistle:

Terry



Interested in becoming a forum supporter?


#5 OFFLINE   plowmaster

plowmaster

    Advanced Member

  • Topic Starter
  • Members
  • PipPipPip
  • 194 posts
  • Joined 15-July 08
  • 0 thanks
    • Member No: 501
  • Locationlisbon

Posted 22 August 2008 - 05:56 AM

your a good man, TT. excellent photographs, thanks alot.
the flag is what ill be building, and hopfully ill get a few pics of the build. ill be taking the pic to the fella i bought the blower off of to show him, when i bought the blower i mentioned the attachment flag and he said he would look for it, and he also lowerd the price for it not being with the blower.

again, great pics, and nice contrasting carpenters square.

#6 OFFLINE   WheelHorse_of_course

WheelHorse_of_course

    Senior Advanced Member

  • Members
  • PipPipPipPipPip
  • 1,327 posts
  • Joined 06-November 07
  • 0 thanks
    • Member No: 48
  • LocationAnnandale, Virginia

Posted 23 August 2008 - 07:20 PM

My blower on my Charger 12 needed a spacer because the lift rod was not long enough. The guy I bought it from has a 312. I assume the difference is because the front mount on the Charger is an add-on.

In any case, the perfect spacer to use is one of the two spacers from the rear lift point. When a tractor has a draw bar but no lift there are two spacers.

These fit perfectly :banana: B)

My picture got deleted, when I get a chance I'll add it to this post.
Horses: 1969 Charger 12
Implements: Dozer blade, snow blower, turning plow, furrower, 42" SD deck, 42" SD deck, Brinly spreader/aerator, Craftsman dethatcher, Brinly sweeper
Annandale, VA (DC area)

#7 OFFLINE   WheelHorse_of_course

WheelHorse_of_course

    Senior Advanced Member

  • Members
  • PipPipPipPipPip
  • 1,327 posts
  • Joined 06-November 07
  • 0 thanks
    • Member No: 48
  • LocationAnnandale, Virginia

Posted 25 August 2008 - 09:12 AM

Here is a fuzzy picture of how well the spacers from the rear lift perfectly fit the flag. This effectively made the lift rod about an inch longer.

Posted Image :horseplay:
Horses: 1969 Charger 12
Implements: Dozer blade, snow blower, turning plow, furrower, 42" SD deck, 42" SD deck, Brinly spreader/aerator, Craftsman dethatcher, Brinly sweeper
Annandale, VA (DC area)

#8 OFFLINE   TT-(Moderator)

TT

    Got Wheel Horse?

  • Moderators-(Moderator)
  • 10,624 posts
  • Joined 06-August 07
  • 146 thanks
    • Member No: 33
  • LocationJulian, PA

Posted 25 August 2008 - 09:26 AM

Heavy 3/4" I.D. X 1 1/2" O.D. flat washers (P/N 920015) were actually used for lift rod shimming. That's why the flat spot is at the front of the base of the "flag".
These washers were used by WH in many locations - from front wheel spindles to blade spindles on many mower decks.
Although your use of the drawbar spacer is creative, I'm sure it would eventually crush.

Terry



Interested in becoming a forum supporter?


#9 OFFLINE   tmix

tmix

    Advanced Member

  • Members
  • PipPipPip
  • 154 posts
  • Joined 12-April 10
  • 1 thanks
    • Member No: 2778
  • Locationu.p norway mi.

Posted 13 December 2010 - 09:27 PM

:D chargers and raiders are the same? So my rod will need to be longer? :ychain: Right .Or don't weld the end that slids into the pipe on the lifting side. start long and cut pipe till you get the lift right? :D tmix
1965 875 Wheel-O-Matic 5' Dozer/Snow Blade
1971 Raider 12 8 Speed 42" Dozer/Snow Blade & Snowblower

#10 OFFLINE   TT-(Moderator)

TT

    Got Wheel Horse?

  • Moderators-(Moderator)
  • 10,624 posts
  • Joined 06-August 07
  • 146 thanks
    • Member No: 33
  • LocationJulian, PA

Posted 13 December 2010 - 11:51 PM

don't weld the end that slids into the pipe on the lifting side. start long and cut pipe till you get the lift right? :ychain: tmix

These tractors are grouped into two basic categories when it comes to the lift tube.
Wheelbase (short/medium/long) and Attach-Matic or not.

You do not want to weld the "flag" to the tube. It's hard enough to get hooked to the lift arm on the tractor without another 40-some inches of heavy pipe hanging off the end.
Mount the flag to the tractor lift arm (top hole on the arm that points down to the ground) first.
Attach the lift tube to the blower and hook the blower to the tractor. Lower the implement lift completely and then hold the lift tube up to the flag to see where (if) the tube needs cut. If you cut it a little short, flat washers slid over the rod on the flag can be used to tighten things up as needed.

Terry



Interested in becoming a forum supporter?


#11 OFFLINE   WheelHorse_of_course

WheelHorse_of_course

    Senior Advanced Member

  • Members
  • PipPipPipPipPip
  • 1,327 posts
  • Joined 06-November 07
  • 0 thanks
    • Member No: 48
  • LocationAnnandale, Virginia

Posted 14 December 2010 - 03:50 PM

:D chargers and raiders are the same? So my rod will need to be longer? :ychain: Right .Or don't weld the end that slids into the pipe on the lifting side. start long and cut pipe till you get the lift right? :hide: tmix


Raiders and Charger are the same (at least I think so) but I think the last few years they may have had the built in front Tachamatic.

In 1969 and before (I know for certain) the front tachamatic is an option and bolts to the sides of the frame (unlike the newer one's that bolt on from the front). Like this:

Posted Image

That said, I would NOT try to customize parts like the lift tube. Far better to be "standard" with the decades of later tractors. If you find it a bit loose, shim it with washers (or the heavy spacer like I used) as needed.

:D :D
Horses: 1969 Charger 12
Implements: Dozer blade, snow blower, turning plow, furrower, 42" SD deck, 42" SD deck, Brinly spreader/aerator, Craftsman dethatcher, Brinly sweeper
Annandale, VA (DC area)

#12 OFFLINE   1973wh

1973wh

    Newbie

  • Members
  • Pip
  • 7 posts
  • Joined 31-August 11
  • 0 thanks
    • Member No: 5309
  • LocationOntario, Canada

Posted 02 September 2011 - 11:36 AM

any one know were i can get the whole assembly for cheap not $233 or is it better to bulid it :thumbs2:

#13 OFFLINE   stevebass4

stevebass4

    Newbie

  • Members
  • Pip
  • 9 posts
  • Joined 13-November 11
  • 0 thanks
    • Member No: 5645

Posted 18 November 2011 - 03:17 PM

thank you VERY much for the pics and specs

ordered the flag from ebay and will go and get a steel pipe from home depot

#14 OFFLINE   stevebass4

stevebass4

    Newbie

  • Members
  • Pip
  • 9 posts
  • Joined 13-November 11
  • 0 thanks
    • Member No: 5645

Posted 19 November 2011 - 12:06 PM

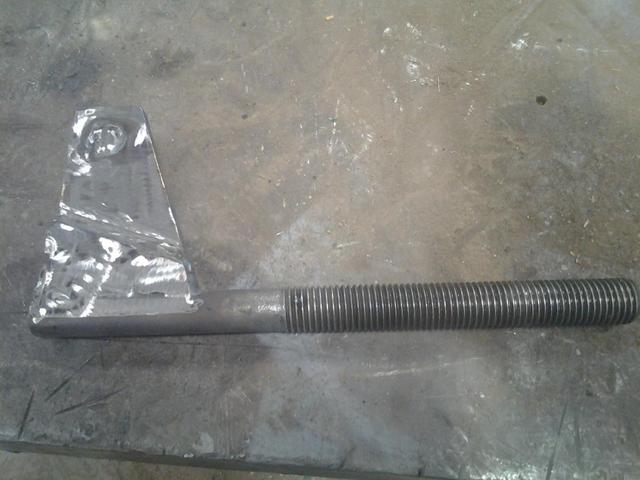

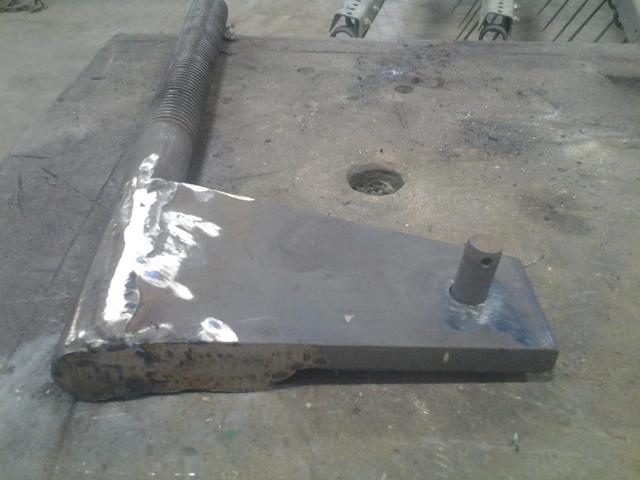

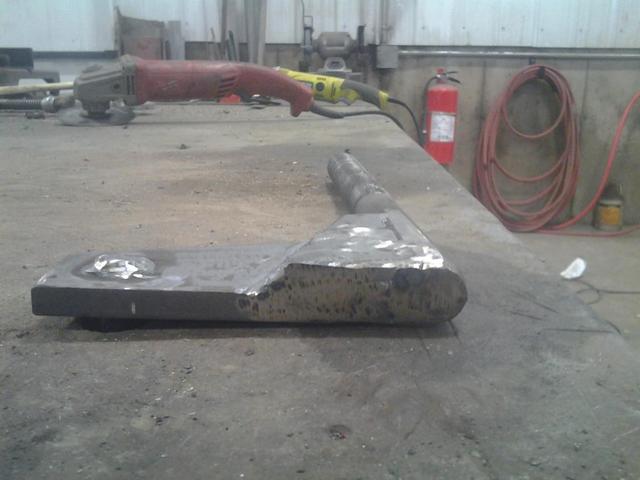

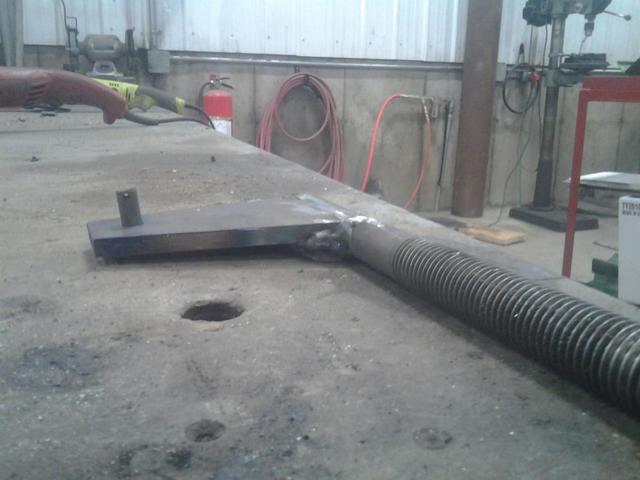

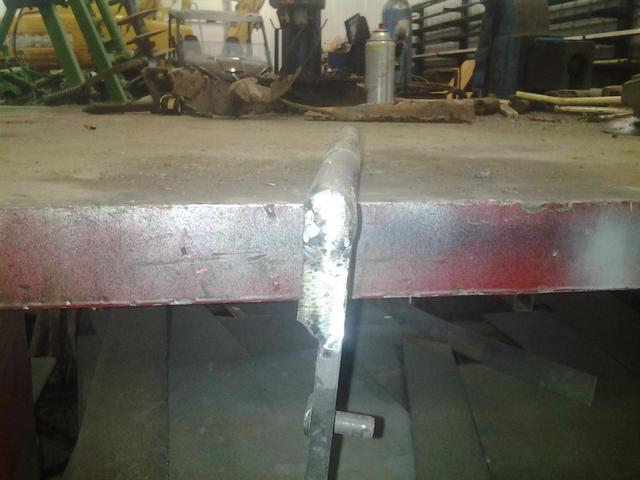

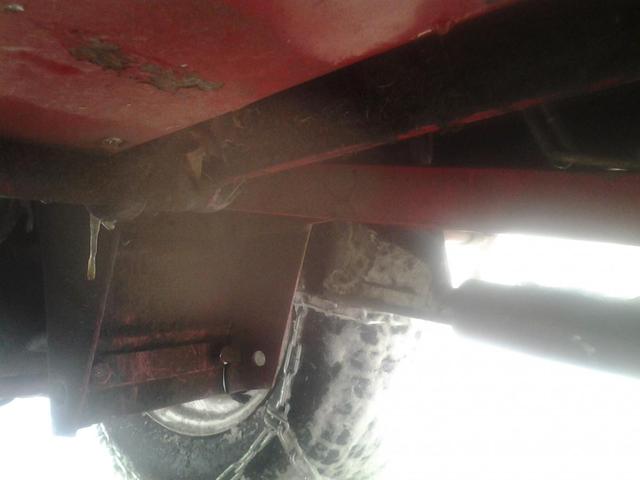

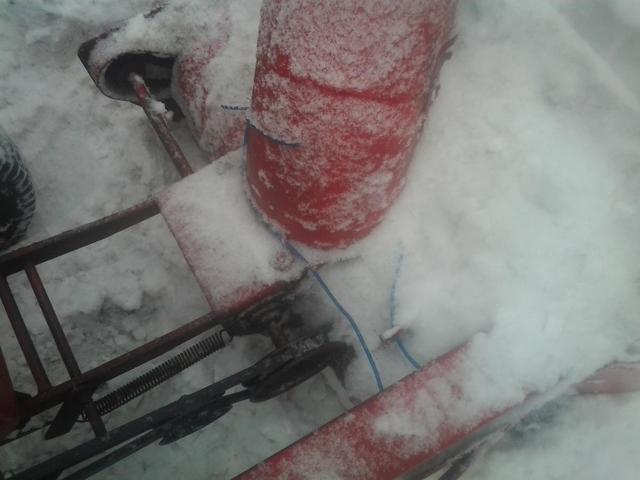

and done!!

:dunno:

Posted Image

Posted Image

Posted Image

#15 OFFLINE   Auto 14

Auto 14

    Newbie

  • Members
  • Pip
  • 1 posts
  • Joined 07-December 11
  • 0 thanks
    • Member No: 5766
  • Locationcanada

Posted 25 January 2012 - 12:42 AM

SAM 0358
Album: 1973 automatic 14
9 images
0 comments


horses are bigger, better and stronger then deere

#16 OFFLINE   Hydro

Hydro

    Supporter

  • Supporter
  • 806 posts
  • Joined 03-November 11
  • 10 thanks
    • Member No: 5559
  • LocationOrillia Ontario

Posted 02 February 2012 - 06:42 PM

There's tons of talent here but I'm not sure where we would be "Without the TT" :banana-tux:
