Posted 24 June 2013 - 09:31 AM

Hey Guys- anyone got a pic or dimensions for the crankshaft pulley on an A-81 ? Or better yet- does anyone have one they would part with? I'm trying to complete an A-81 to sell and need that pulley-Thanks-Al

Attached Thumbnails

  • 4596_35.JPG

1981 C-125A Hydro lift- Rebuilt K-301as
42" SD-Deck- replaced grease-able spindles
37 inch Single Stage Snow-blower
42 inch Front Plow with Quick Hitch
42 inch Front Plow by Jacobsen-converted to WH.
1969 TrailBlazer 7- 2 Stage Snow-Blower
1984 Ranch KIng Plus-12.5 HP-38 " Cut
1966 WH 656 (restored) with 36 " RD Deck
1981 A-81 with 32" SD Deck (in restoration)

Better to face your fear once,
Than to be constantly afraid"

#2 OFFLINE   groundhog47

groundhog47

    Recycler

  • Supporter
  • 938 posts
  • Joined 30-August 12
  • 47 thanks
    • Member No: 8388
  • Lifetime Supporter:
  • Military Member: Air_Force
  • LocationShreveport, La 71118

Posted 27 June 2013 - 09:02 PM

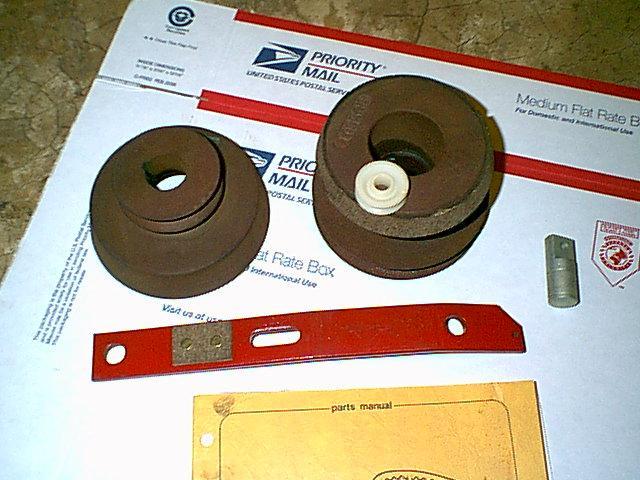

PM'd about classified, thought you had gotten A-111 sometime back, but was someone else. Will post a picture in a 10 or 20 min break. Attached NOS parts except manual: 1st pic (L) = engine pulley, 108286, ® = clutch, 106565 below (L) red + clutch engagement bar and brake, 108535 small cylinder is clutch shaft, 108431, white roller is cable roller for deck, 106474, same as on some of the front eng mods. May have the clutch and brake springs, haven't thoroughly researched other stuff   Do not have race, needle bearing, roller bearing, prob have snap rings

Attached Thumbnails

  • a-111_pts1.JPG
  • a-111_pts2.JPG
  • A series manual.JPG
  • Man_pgX.JPG
  • man_pgz.JPG

Edited by groundhog47, 27 June 2013 - 09:56 PM.

Gerry     >>> Displaced "SOONER State" Okie >>>
"Have a GREAT day every day"! (Gerry) or "Who'da thunk it?" (Mortimer Snerd)(Bert Lars)
"Well what if there is no tomorrow, there wasn't one today"! (Bill Murray-Groundhog Day)



#3 OFFLINE   groundhog47

groundhog47

    Recycler

  • Supporter
  • 938 posts
  • Joined 30-August 12
  • 47 thanks
    • Member No: 8388
  • Lifetime Supporter:
  • Military Member: Air_Force
  • LocationShreveport, La 71118

Posted 29 June 2013 - 10:06 AM

Hey Guys- anyone got a pic or dimensions for the crankshaft pulley on an A-81 ? Or better yet- does anyone have one they would part with? I'm trying to complete an A-81 to sell and need that pulley-Thanks-Al

Lever at left = mower engagement that pulls up red bar, holding clutch drum, into engine pulley. Could you post a close up of complete top of deck and any extra parts that came with unit. I will try enlargement of photobucket.
