Hydrostatic speed control lever modification


  • Please log in to reply
3 replies to this topic

#1 OFFLINE   Short Circuit

Short Circuit

    Member

  • Members
  • PipPip
  • 14 posts
  • Joined 22-August 12
  • 0 thanks
    • Member No: 8338
  • Locationunder roof

Posted 01 September 2012 - 08:37 AM

GREETINGS ALL,
I HAVE A 1973 14 AUTOMATIC I RECENTLY PURCHASED. WHILE I WAS LOOKING FOR A TRACTOR TO BUY, I CHECKED OUT A C-120 WHICH HAS THE SPEED CONTROL LEVER ON THE UPPER RIGHT SIDE OF THE TRACTOR WHICH WAS VERY HANDY. THE 14 AUTOMATIC CONTROL LEVER IS DOWN AND CENTERED OVER THE TRANSMISSION IN THE USUAL SHIFT LEVER POSITION BETWEEN YOUR LEGS, WHICH IS NOT SO HANDY.

HAS ANYONE EVER INSTALLED THE C-120 CONTROL LEVER MECHANISM IN PLACE OF THE CENTER CONTROL LEVER MECHANISM ON A TRACTOR, SUCH AS MY 14 AUTOMATIC?

IF SO, HOW DIFFICULT WAS IT, AND CAN STOCK PARTS BE SWAPPED OUT WITHOUT MODIFICATIONS?
THANKS.

#2 OFFLINE   sorekiwi

sorekiwi

    RedSquare Pro

  • Members
  • PipPipPipPipPipPip
  • 3,091 posts
  • Joined 09-September 07
  • 53 thanks
    • Member No: 38
  • LocationNorthEast Ohio

Posted 01 September 2012 - 11:31 AM

Nope, but I am currently swapping the other way on a 1276!!

My first Wheel Horse was a 14 Auto which had the shifter between my legs. I used that for 5 years before getting my second Horse, so thats probably why I like that arrangement better.

My reason for swapping on the 1276 is that it is (probably) going to become a loader tractor that has the loader controls on the right hand side. as such I want to be able to control the hydro with my left hand, and the loader with my right.

When I used my 1276 with a snow plow on it, I was always grabbing the wrong lever and I found that extremely frustrating.

The right side lever is a lot simpler than the "between your legs" setup, a lot less stuff to get out of adjustment. The simpler setup is probably why Wheel Horse went away from the central shifter on their later model tractors.

If thats what you like, then I say go for it!
Mike in North East Ohio

#3 OFFLINE   3609horse

3609horse

    Member

  • Members
  • PipPip
  • 93 posts
  • Joined 18-January 12
  • 0 thanks
    • Member No: 6058
  • Locationwestern ma

Posted 01 September 2012 - 07:53 PM

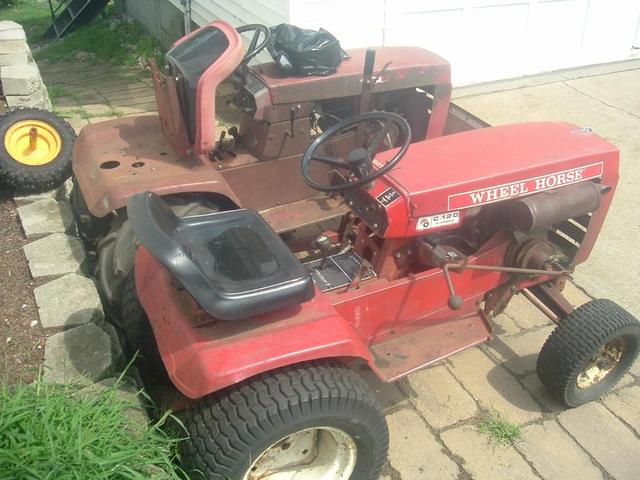

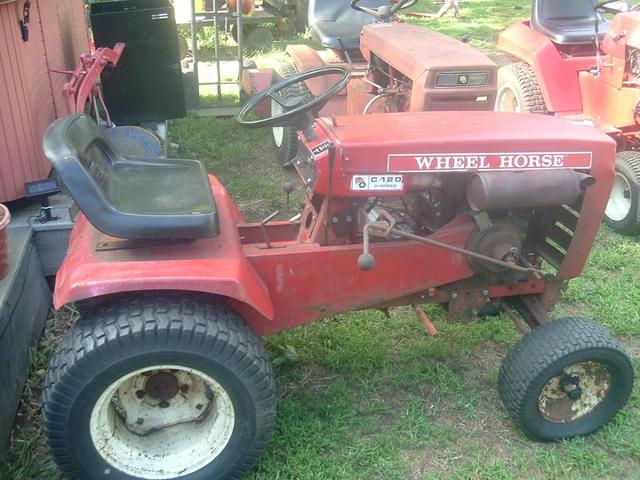

Iswapped out the center shifter in my c120 and used parts from a charger 9. Everything just unbolted and new parts from donnor tractor
went right in. Here are a couple of pics

Attached Thumbnails

  • DSCF3733.JPG
  • DSCF3773.JPG


#4 OFFLINE   Alan_Heist

Alan_Heist

    Member

  • Members
  • PipPip
  • 65 posts
  • Joined 30-September 09
  • 2 thanks
    • Member No: 2025
  • LocationCentral FL

Posted 02 September 2012 - 08:40 PM

I have the Charger 12 and like the setup on the right, instead of between the legs like you have. As such, I would recommend the conversion, especially if it is a bolt-in job like 3609 was able to do.

sorekiwi... why convert to any hand control if you are thinking of making it a loader... why not make a foot control for speed control so that you have have both hands free for steering and working the loader controls?
