Tractor 1987 312-8 D&A TIPL Wiring SN.pdf

Sign in to follow this

5 Screenshots

About This File

IPL from Toro Master Parts Viewer
43 pages 3.20MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.



Wiring only pdf

1 page 288KB



Original IPL #810480R1
Uses Kohler M12S-471527 with magneto ignition and 15 amp stator
On the Belgium list



Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"

Tractor weight 547 lbs.

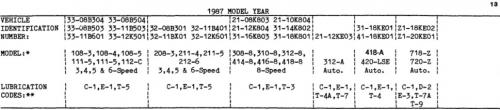

Lube chart SS


Details & Attachments
3 pages 116.98KB

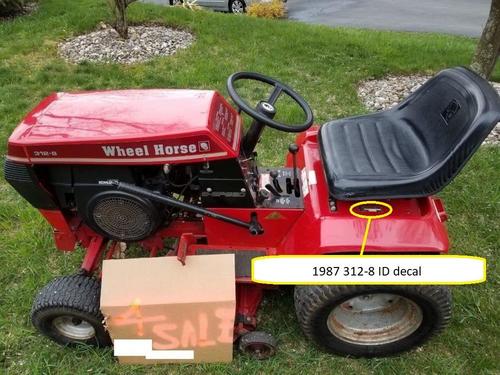

1987 312-8 model 21-12K804

1987 serial numbers that have shown up for the 21-12K804
12157 - Built in South Bend - Located in the UK - Serial a guess
12689
20059 - Build date 1986 6232 August 20 Wednesday

20067

20130
21033

21306
21713
21827
21990 - Build date 1986 6323 November 19 Wednesday
22337
24135
24156
29269






×
