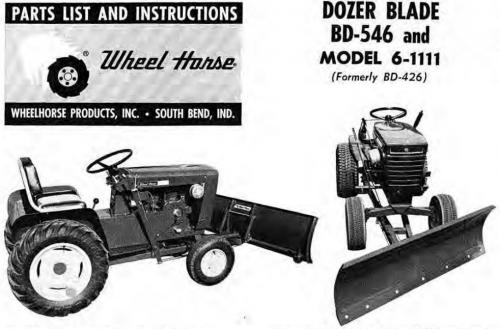

Blade Dozer 42in 1966-1967 BD-426 Long frame OM IPL DNA SN.pdf

Sign in to follow this

admin

2 Screenshots

About This File

Operator manual #281
IPL
4 pages 713.45KB



Toro states the BD-546 was formerly the BD-426 but not true. The BD-546 fit the 953, 1054 and 1054A. They did share a parts list.

Fits long frame tractors 10hp and up
Complete blade
Mounts ahead of rear axle
Replaced by 6-1111

Dozer 1966 42in model BD-426
1966 serial numbers that have shown up for the BD-426
189054
293111

Dozer 1967 42in model BD-426



Dozer DNA of long tractor frame dozer blades

1966-1967 model BD-426 - Fits LONG frame tractors - Mounts ahead of the rear axle - replaced by

1968 model 6-1111 - Fits LONG frame tractors - Mounts ahead of the rear axle

----------------------------------------------------------------------------------------------------------------------

1968 model 6-4111 - First to fit LONG & SHORT frame tractors and first to mount under the rear axle - replaced by

1969 model [6-4112 + 6-9621]

1970-73 model [6-4113 + 6-9622]

1973-74 model [6-4113 + 6-9623]

1974 model [6-4114 + 6-9624]

1974 model 6-2131

1975 model 6-2132

1976 model 6-2133

1976 model 66-42BC01

1977 model 76-42BC01

1978 model 86-42BC01

1979 model 96-42BC01

1980 model 06-42BC01

1981-1984 model 06-42BC02 (Up to here they are 42" wide)



1984-1989 model 06-48BC01 (They are now 48" wide)

1990 model 06-48BC02 (Last blade to have 3 angle positions)

1991-1993 model 06-48BC03 (First blade to have 5 angle positions)

1993-2001 model 79350 - (105-1502 kit adapts 2001 and older GT Classic-Series blades to fit 2002 and later tractors

2002 2004-2009 2012 model 79364 - (105-1501 kit adapts 79364 blade to fit 2001 and older GT Classic-Series)






×
×
